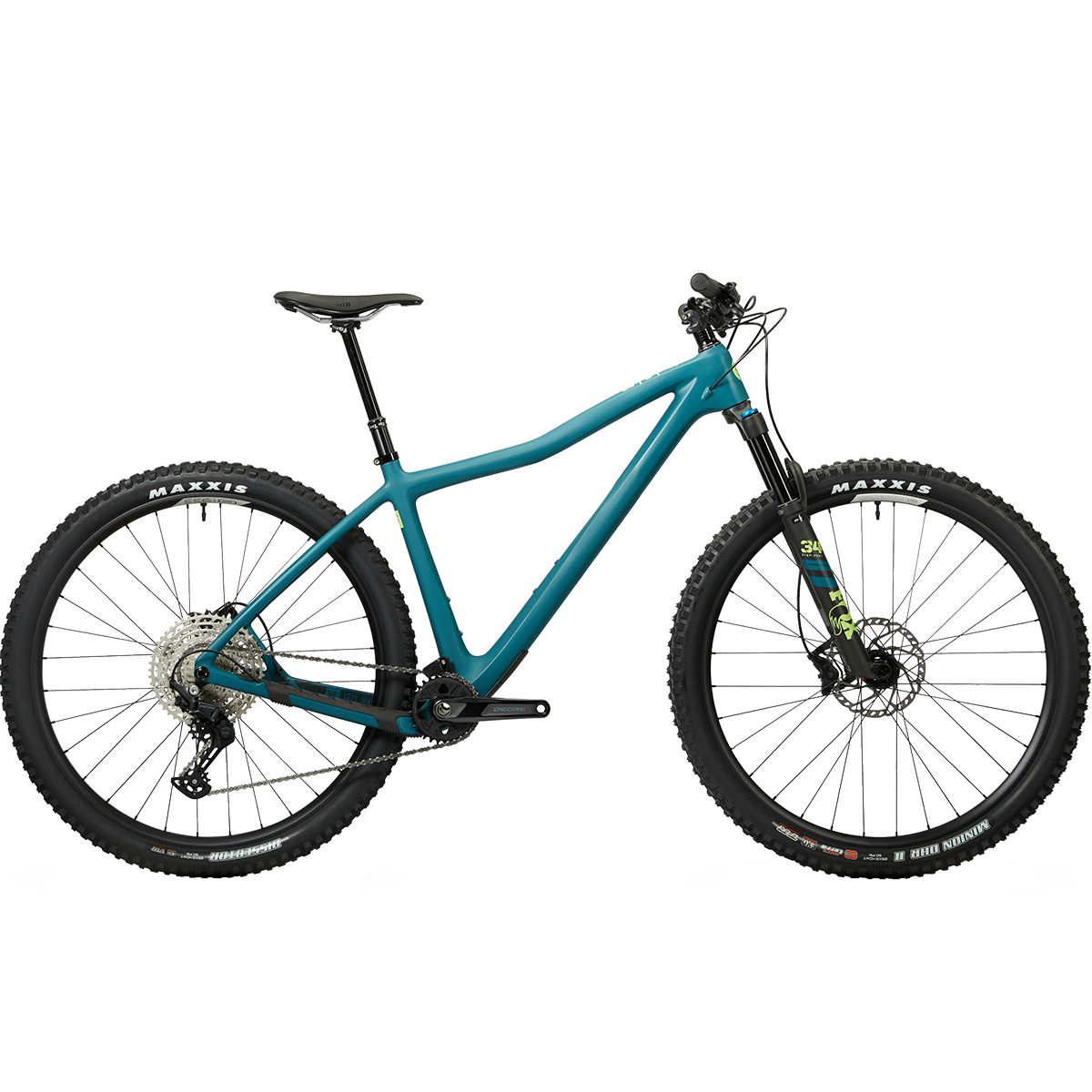

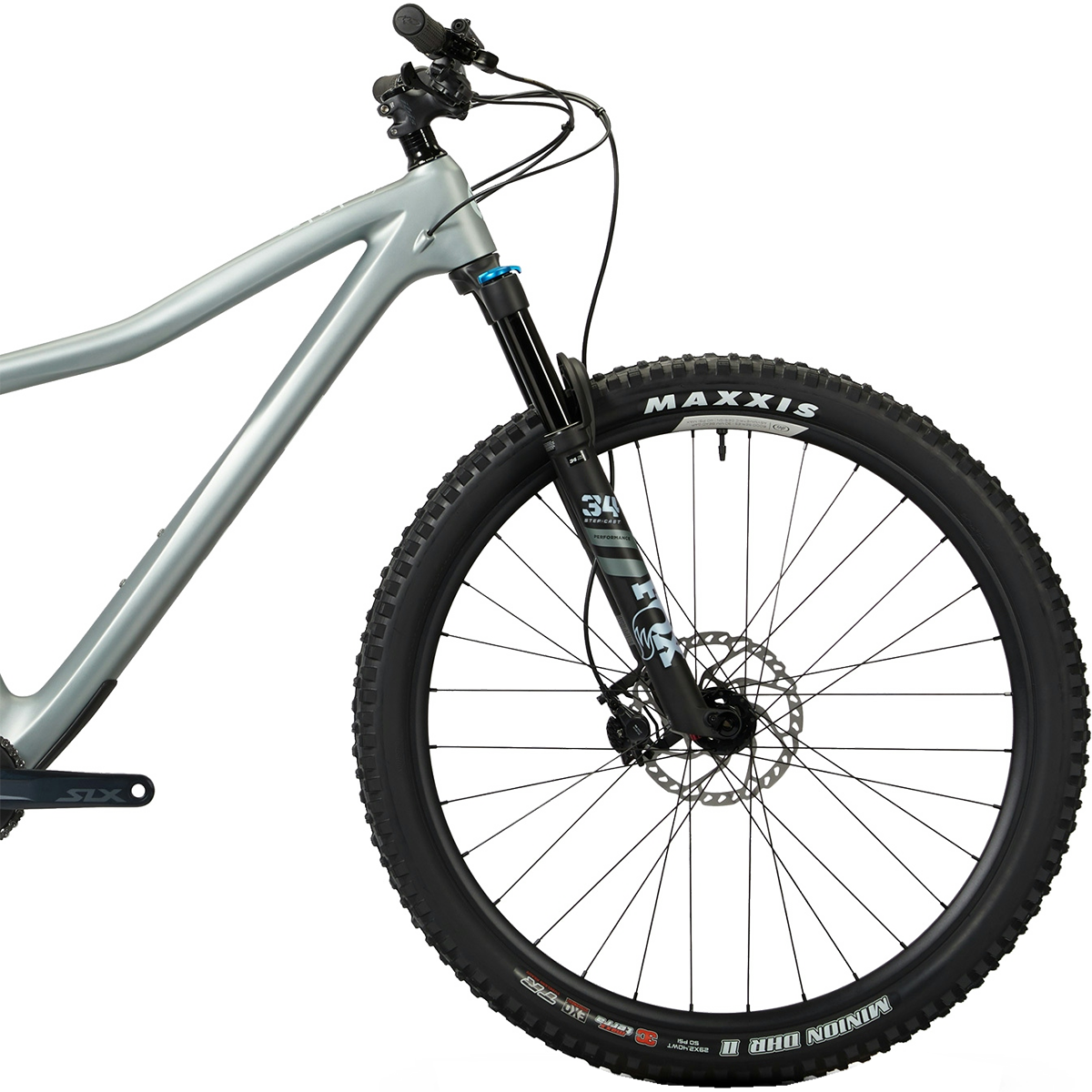

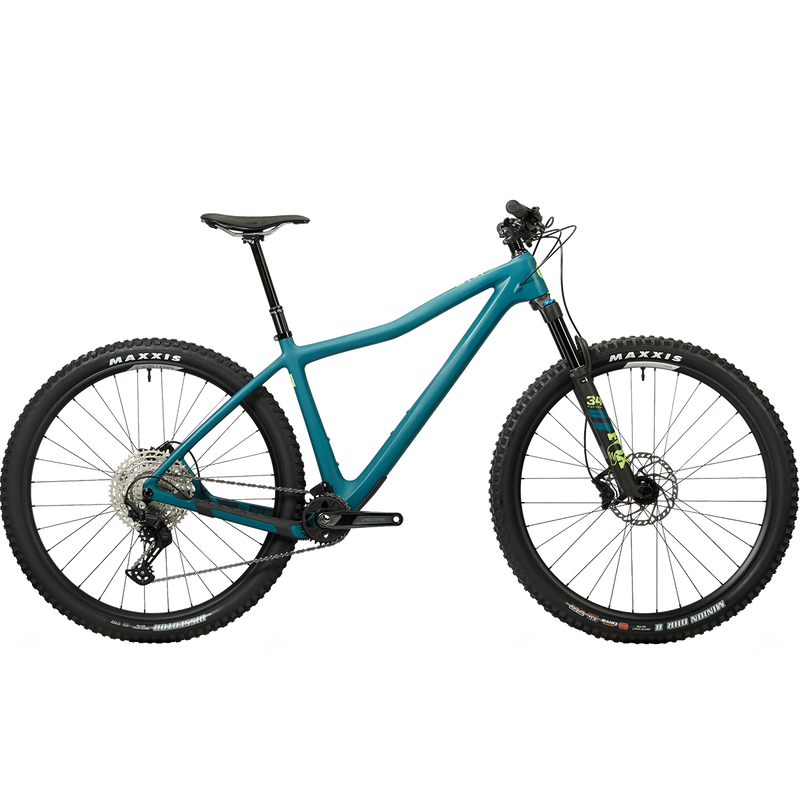

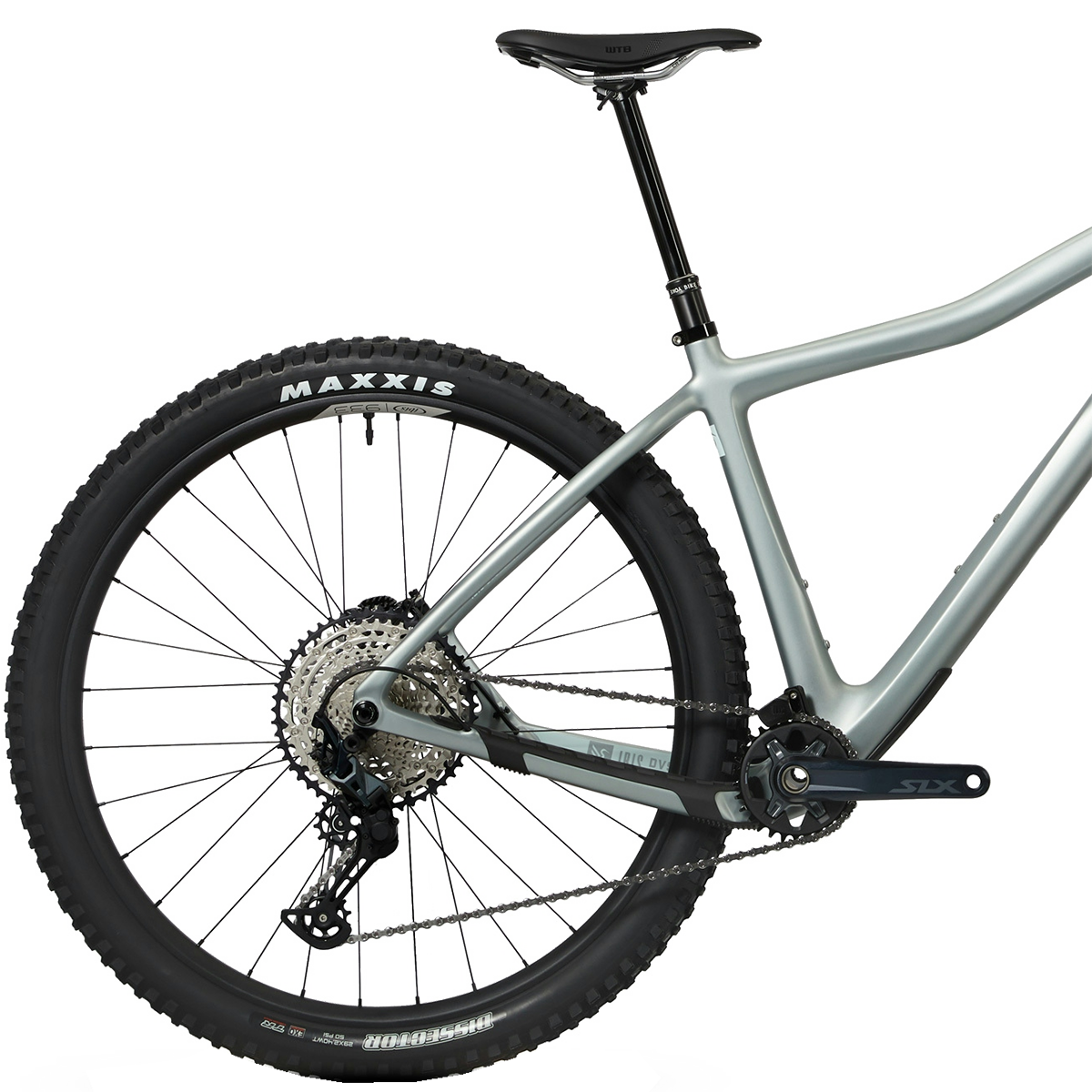

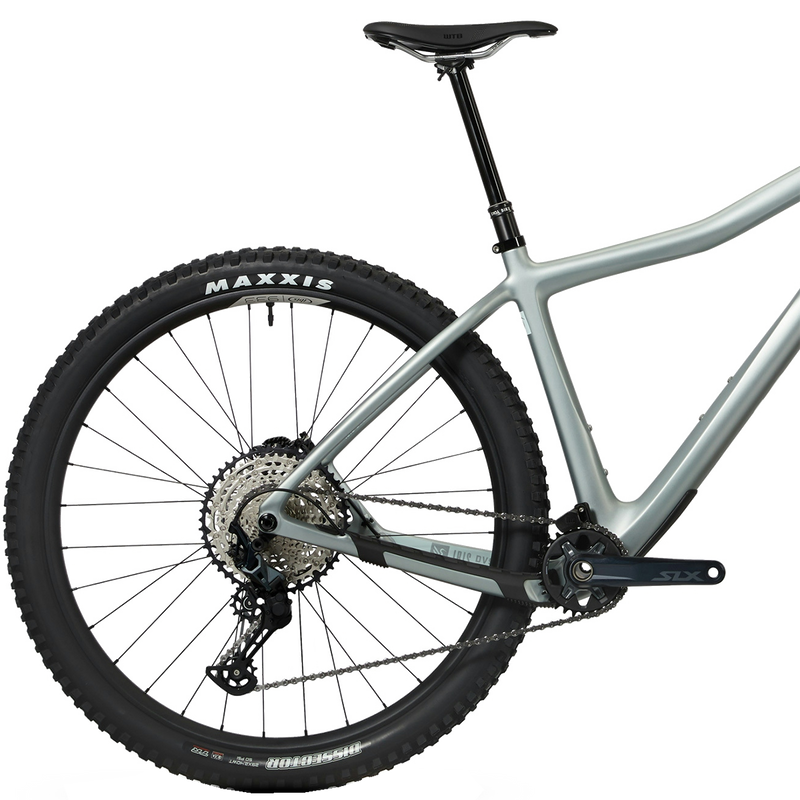

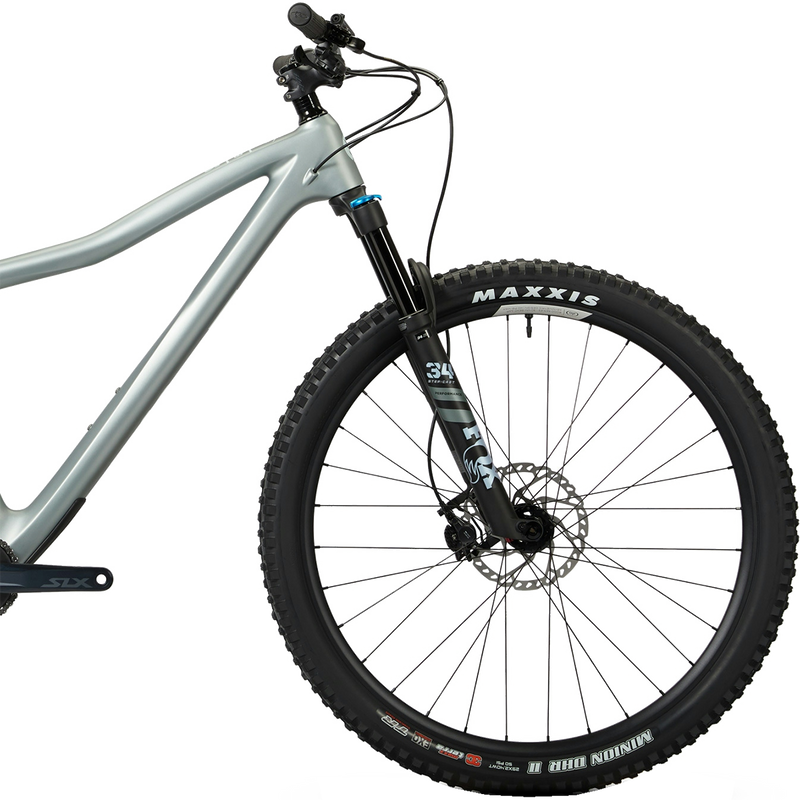

DV9 Deore
The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with up-to-date geometry, and engineered to the same exacting standards as the res
The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with up-to-date geometry, and engineered to the same exacting standards as the rest of the Ibis line, it packs a ton of performance into a more accessible price.
- Inspired by the World Cup Race Winning Exie USA, the DV9 features a rowdy-but-not-too-rowdy 66.5° head angle and ultra-playful 425mm chainstays
- Thick rubber downtube and chainstay protection help dampen noise and protect the frame
- The DV9 has clearance for two water bottles inside the front triangle of every size frame. Even the small.
- Internal cable routing
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| Fork | Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29', 110x15 |
| Wheels | Ibis 933 Aluminum Rims, Ibis Hubs |
| Tires (F/R) | Maxxis DHR2 29" x 2.4" Exo TR / Maxxis Dissector 29" x 2.4" Exo TR (rear) |
| Brakes | Shimano Deore M6100, 2 Piston |
| Rotors (F/R) | Shimano SM-RT66, F/R: 180mm |
| Crankset | Shimano Deore M6120 24mm spindle, 30t Alloy Ring |
| Bottom Bracket | Shimano SM BB52 |
| Rear Derailleur | Shimano Deore, M6100, Shadow Plus |
| Shifter | Shimano Deore, M6100 |
| Cassette | Shimano Deore, M6100, 10-51T |
| Chain | KMC X12 Silver Chain |
| Chain Guide | Ibis Top Guide |
| Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower |
| Grips | Lizard Skin Charger |
| Handlebar | Ibis Aluminum, 780mm |
| Stem | Ibis 31.8mm, S-M: 40mm, L-XL: 50mm |
| Seatpost | KS Rage-i Dropper 31.6mm , S: 125mm, M: 150mm, L/XL: 170mm |
| Saddle | WTB Silverado, 142mm |
* Specs subject to change
