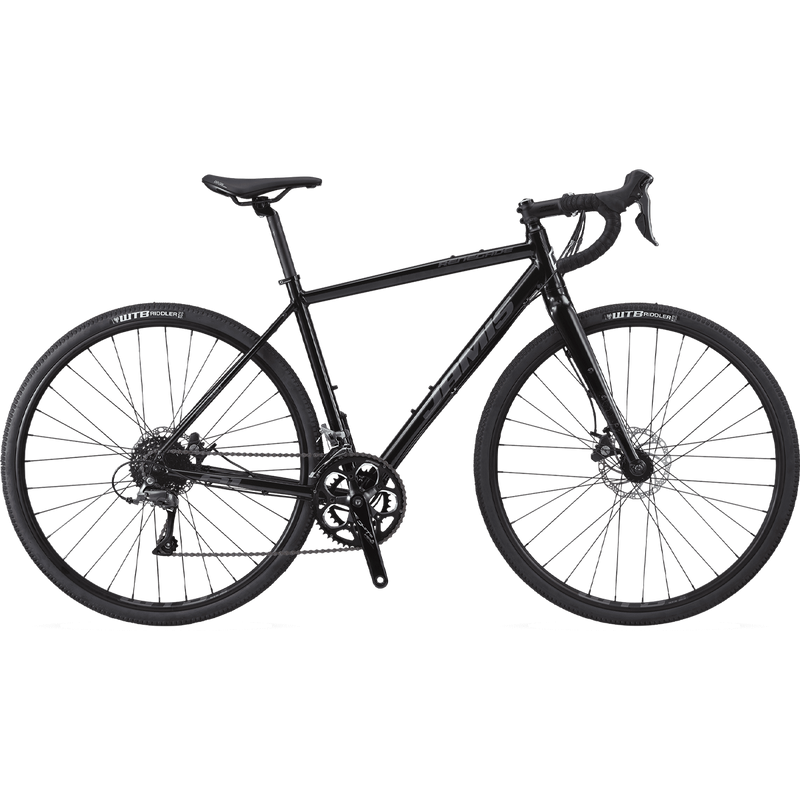

Renegade A1
Designed for adventure. From a frame design perspective, Jamis' goal was to create a well-balanced, responsive handling bike with a compliant ride feel. How did they do this? Jamis paired a stretched top-tube with a slightly shorter stem, while also
Designed for adventure. From a frame design perspective, Jamis' goal was to create a well-balanced, responsive handling bike with a compliant ride feel. How did they do this? Jamis paired a stretched top-tube with a slightly shorter stem, while also lowering the bottom-bracket and lengthening the wheelbase to put the rider more “in” the bike. Combine these improvements with their Size-Specific-Design (SSD) philosophy and what you’ve got is a fantastically capable platform. The Renegade is fast, fun, and will take you anywhere you dare to go.
- Jamis SSD frame geo, 6061 alloy double-butted frame
- Jamis Adventure 6061 alloy fork, tapered AL steerer
- WTB STX i23 TCS (UST Tubeless System) disc rims
- WTB Riddler Comp 700CX37C tires
- Shimano Claris ST-R2000 Dual Control STI, 16-speed
- FSA Vero, 50/34T crankset
- Tektro C310 Flat Mount cable actuated disc brakes
- FSA sealed cartridge bottom bracket
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Frame | Jamis Size Specific Design frame geometry, 6061 aluminum double-butted main frame, 1.5 - 1 1/8" tapered head tube, 31.8mm seat tube for 27.2 seat post, Flat Mount disc brake mounts, internal cable routing, replaceable derailleur hanger, 3 waterbottle mounts, TT mounts, rack and fender eyelets. |
| Fork | Jamis Adventure 6061 aluminum, tapered aluminum steerer, integrated cable cradles with Flat Mount disc brake mounts, exposed fender, lowrider and 3 water bottle eyelets |
| Headset | FSA Orbit C-40B Internal/External, 1.5 - 1 1/8" |
| Wheels | WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs and 14g stainless steel spokes |
| Tires | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
| Derailleurs | Shimano Claris RD-R2000 GS rear and Claris FD-R2000 front with 31.8mm alloy clamp |
| Shift levers | Shimano Claris ST-R2000 Dual Control STI, 16-speed |
| Chain | KMC Z8 |
| Cassette | Shimano HG41 8-speed, 11-34T |
| Crankset | FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61) |
| BB Set | FSA sealed cartridge, 68 x 110.5mm |
| Pedals | N/A |
| Brakeset | Tektro C310 Flat Mount mechanical cable actuated disc brake with 160mm wave rotors and microSHIFT 9-speed levers |
| Handlebar | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) |
| Stem | Jamis Road 3D forged 6061 alloy, 7 ̊ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61) |
| Tape | Jamis suede tape with gel inserts |
| Seat Post | Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin |
| Saddle | Jamis Sport with SL top |
| Sizes | 48, 51, 54, 56, 58, 61cm |
| Weight | 23 lbs |
* Specs subject to change
