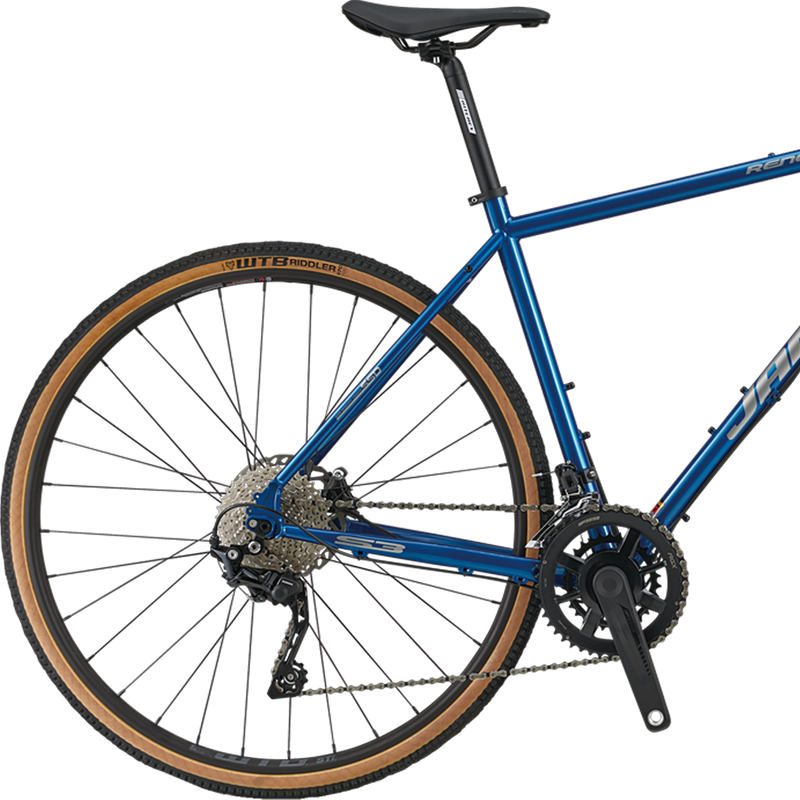

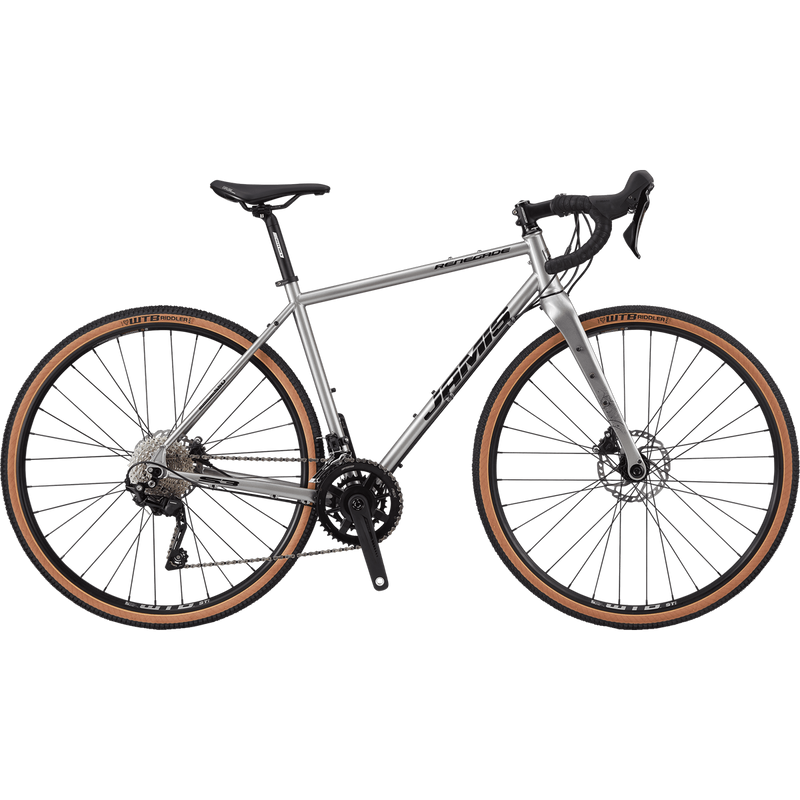

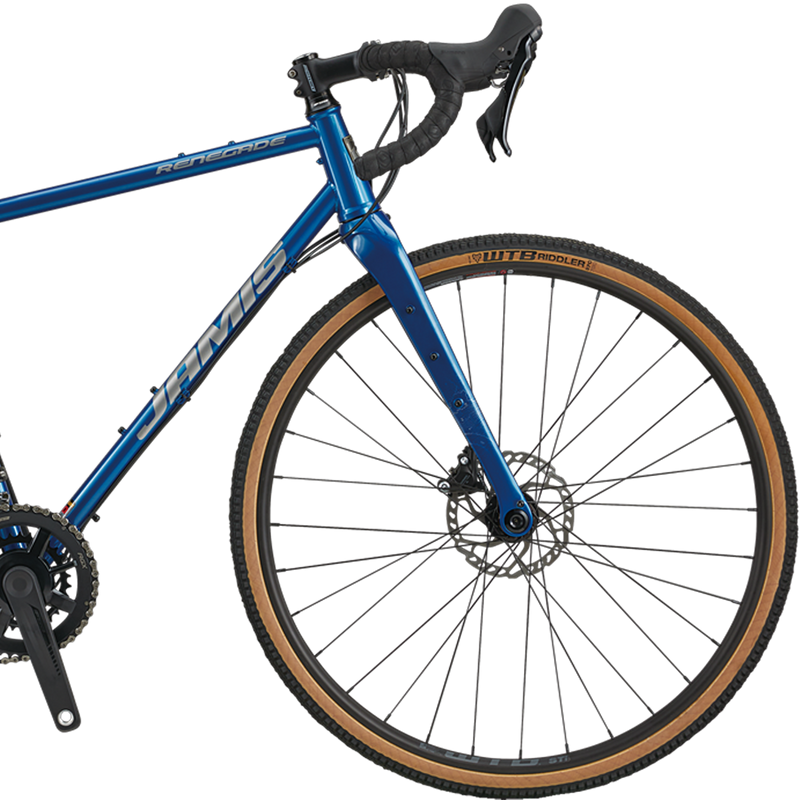

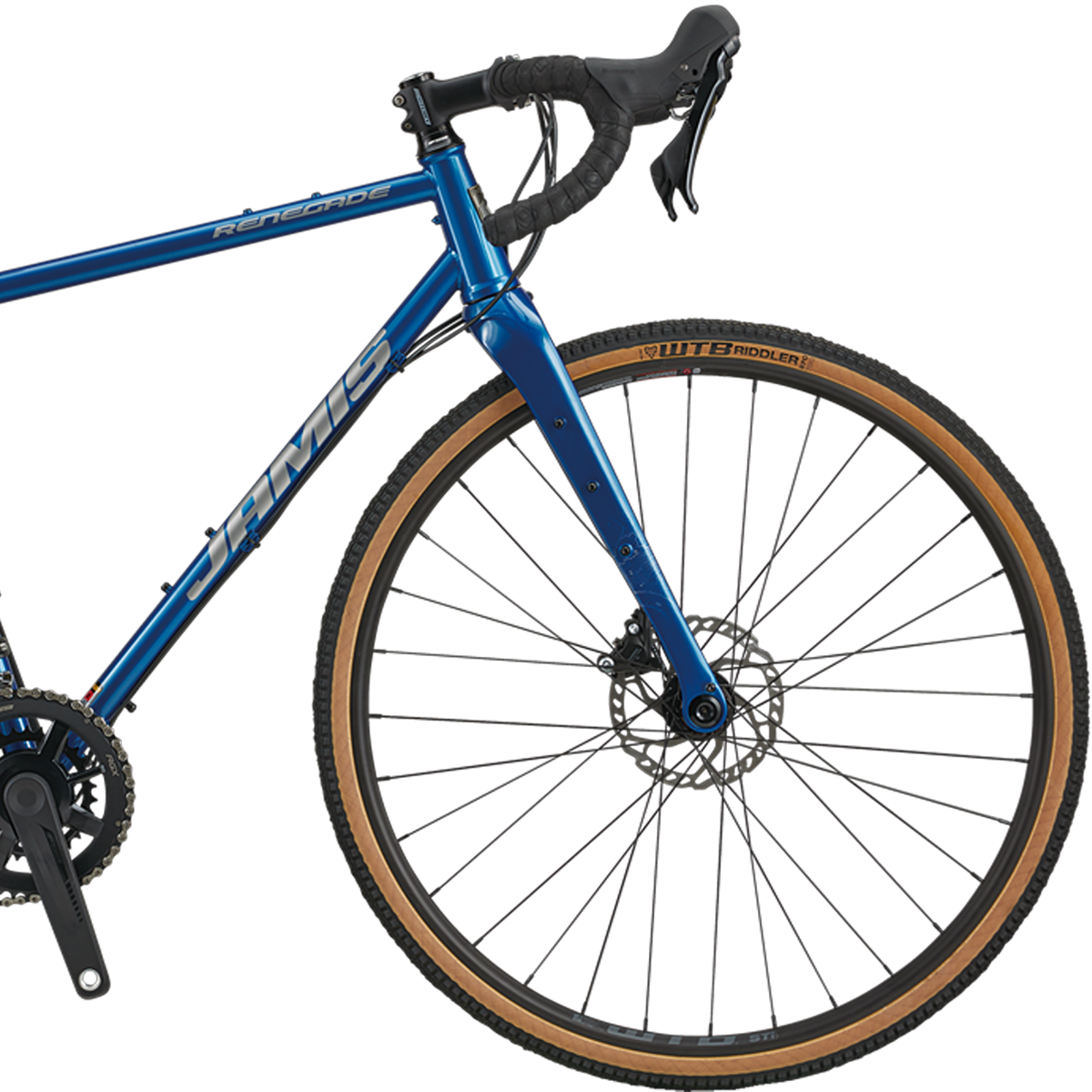

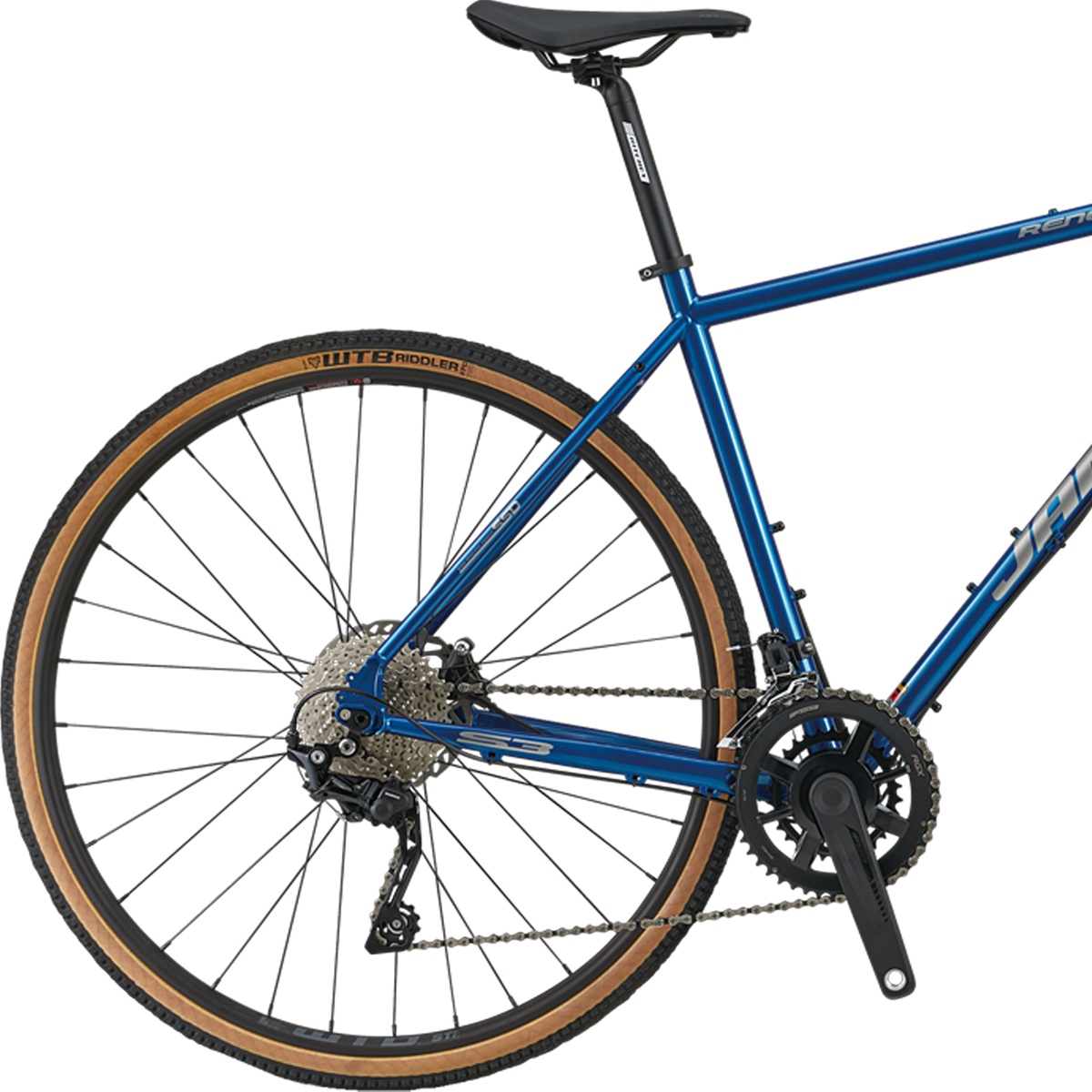

Renegade S3
Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but Jamis' Renegade platform is simply exceptional. They’ve s
Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but Jamis' Renegade platform is simply exceptional. They’ve succeeded in preserving the all-important DNA of their original Renegade while also adding more tire clearance, adjustability, and compliance.
- SSD frame geometry, Reynolds 520 chromoly
- ECO monocoque carbon fork, 12mm Jamis MTS
- WTB ST i23 TCS 2.0 disc rims
- WTB Riddler Comp 700CX37C
- Shimano GRX ST-RX400 Dual Control STI, 10-speed
- FSA OMEGA Modular DM MegaExo Crankset
- FSA BB-4000 MegaExo bracket
- Shimano GRX BR-RX400 flat mount hydraulic disc brakes
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| FRAME | Renegade Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly main tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru- axle, flat mount chain stay disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets. |
| FORK | Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5" hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelets |
| HEADSET | FSA OrbitC-40B Internal, 1.5 - 1 1/8" |
| WHEELS | WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever |
| TIRES | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
| DERAILLEURS | Shimano GRX RD-RX400 Shadow Plus rear and GRX FD- RX400 front with 28.6mm alloy clamp |
| SHIFT LEVERS | Shimano GRX ST-RX400 Dual Control STI, 10-speed |
| CHAIN | KMC 10-speed X10 |
| CASSETTE | Shimano 10-speed, 11-36T |
| CRANKSET | FSA OMEGA Modular DM MegaExo, 46/30T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61) |
| BB SET | FSA BB-4000 MegaExo |
| PEDALS | N/A |
| BRAKESET | Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors with GRX ST- RX400 Dual Control STI levers |
| HANDLEBAR | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) |
| STEM | Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61) |
| TAPE | Jamis suede tape with gel inserts |
| SEAT POST | Ritchey Road, 27.2 x 300mm with cromo seat pin |
| SADDLE | Selle Royal Asphalt with integrated clip system |
| WEIGHT | 24.25 |
* Specs subject to change
