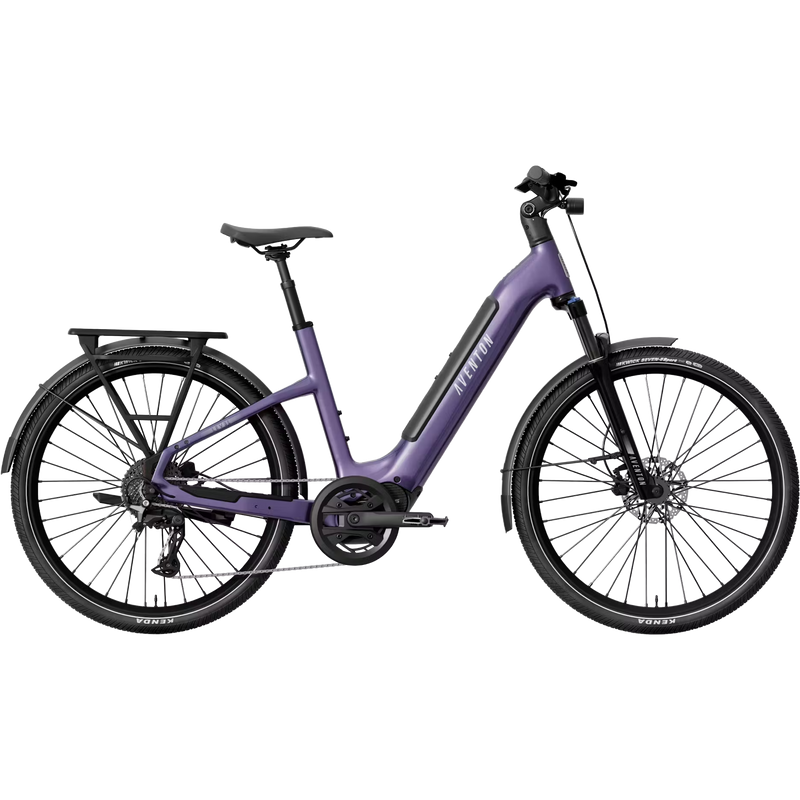

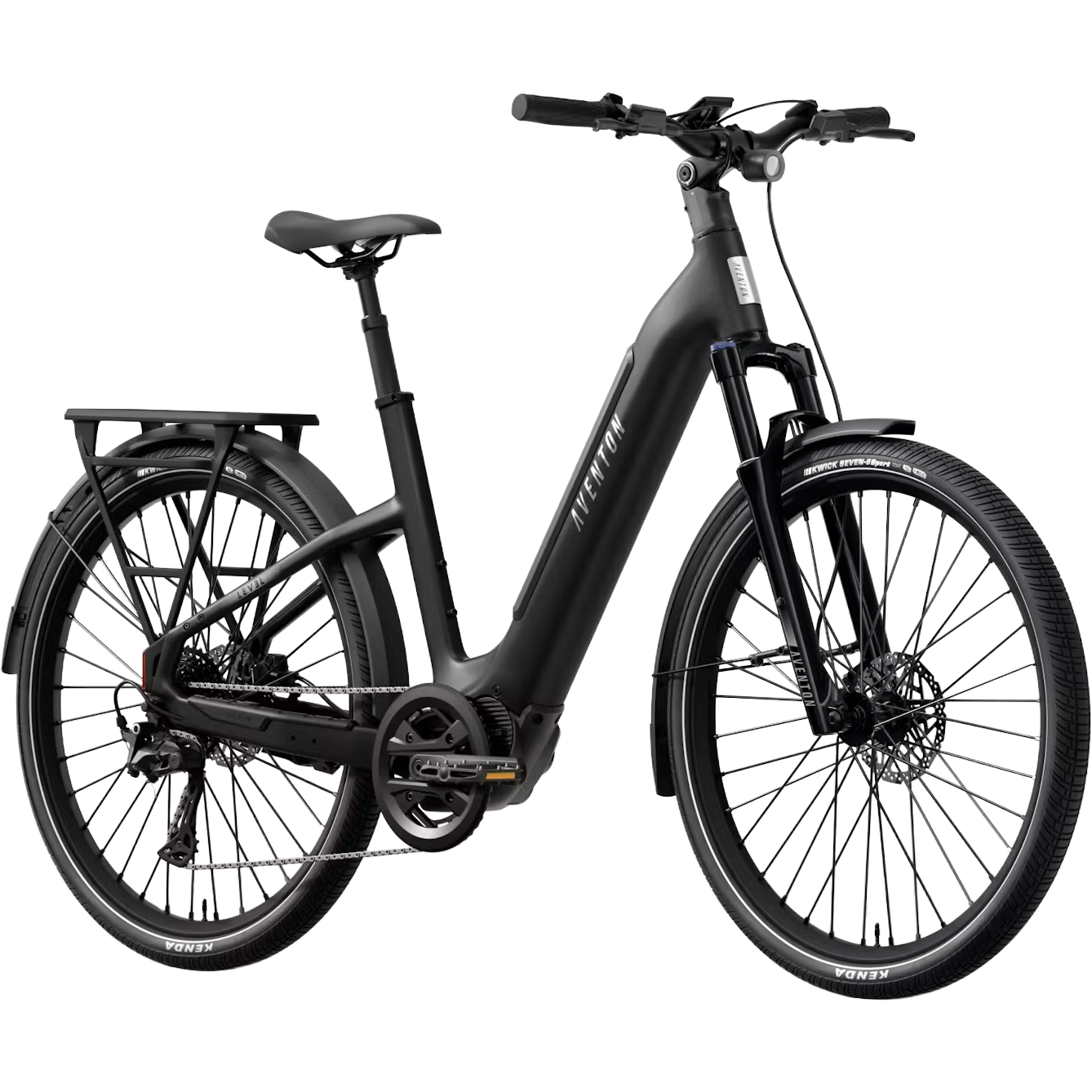

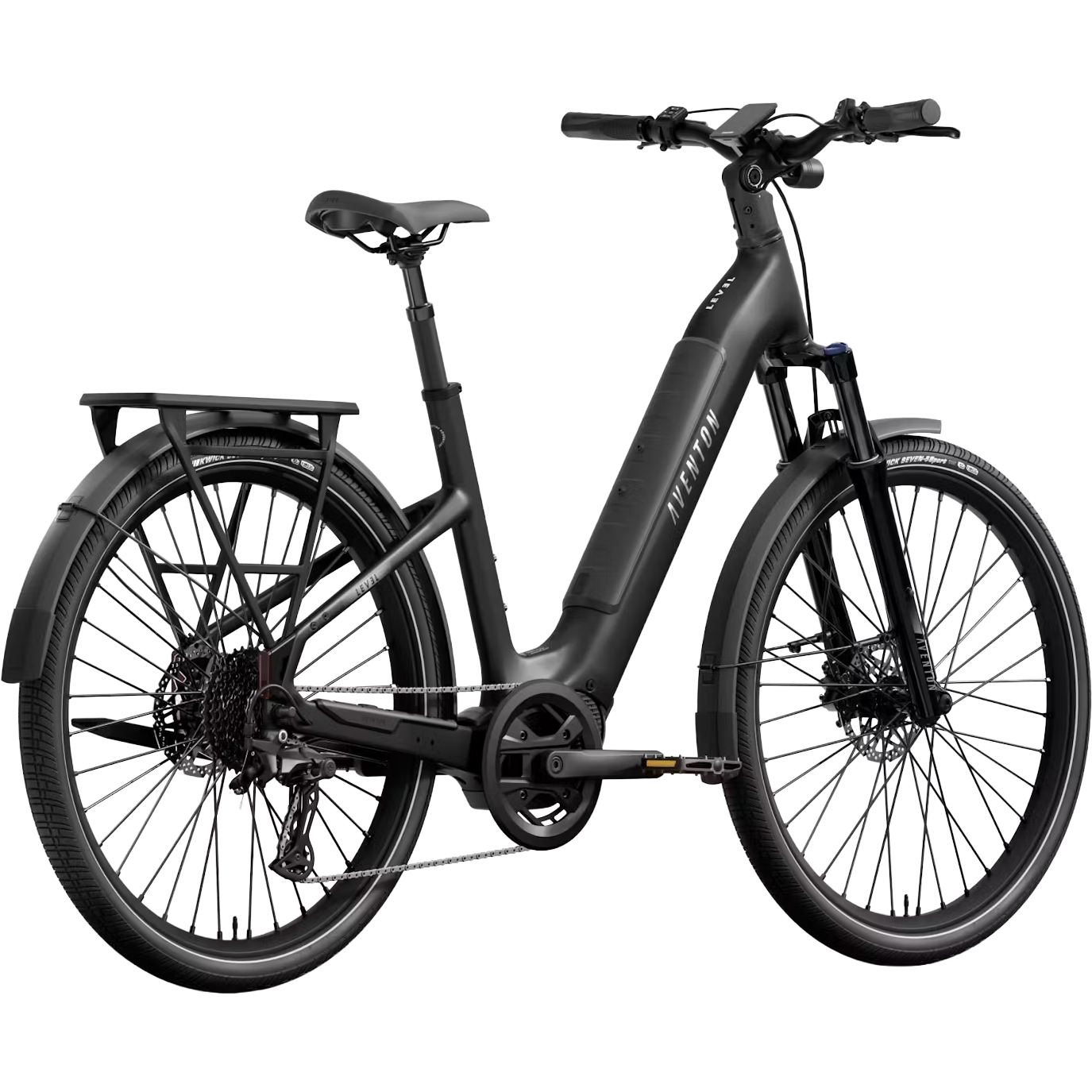

Level 4 ADV Step-Through
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
- Mid Drive Motor: Up to 100Nm Torque (Ultro S Motor)
- Enhanced Tech: Electronic Shifter with Autoshift Technology
- Smart Security: Theft Deterrence
- Range: Up to 110 Miles
- Wireless Connection: 4G†/GPS†
- Connected: Apple Watch Connectivity
- 100mm of Suspension and Suspension Seatpost: Enjoy unmatched comfort
- E-Shifter & Customizable AutoShift: Always in the opitmal gear for cadence and riding speed
- Adjustable Stem & Rider-Friendly Geometry: The stem angle adjusts to dial in their handlebar position
- 4G / GPS Real-Time Tracking: Easily check your bike's location through the Aventon app
- Integrated Rear Wheel Lock: Built-in security, lock your hub instantly to prevent bike thefts
- Unusual Activity Detection & Alerts: Receive an immediate alert on your phone if someone tampers with or moves your bike
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production
*Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date. After the first year, a paid 4G connection subscription will be required to maintain access to these services. Please note that data subscription fees and terms may apply
| COMPONENT | PART |
|---|---|
| Weight | 61lbs |
| Total Weight Limit | 300 lbs |
| Ebike Class | Class 1 (Convertible to Class 2 and/or Class 3) |
| Water Resistance | Bike - IPX6 // Motor - IP67 |
| Range | Up to 110 Miles |
| Safety Certifications | UL Safety Certified UL 2849 |
| Battery Safety Certifications | Certified to UL 2271 |
| Frame | 6061 Aluminum |
| Fork | 100mm Suspension Fork, 15x100mm |
| Rear Spacing | 135mm |
| Fork Spacing | 100mm |
| Front Wheel | 27.5" Double Wall Aluminum, 36H |
| Rear Wheel | 27.5" Double Wall Aluminum, 36H |
| Tires | Kenda K1052, 27.5x2.2" |

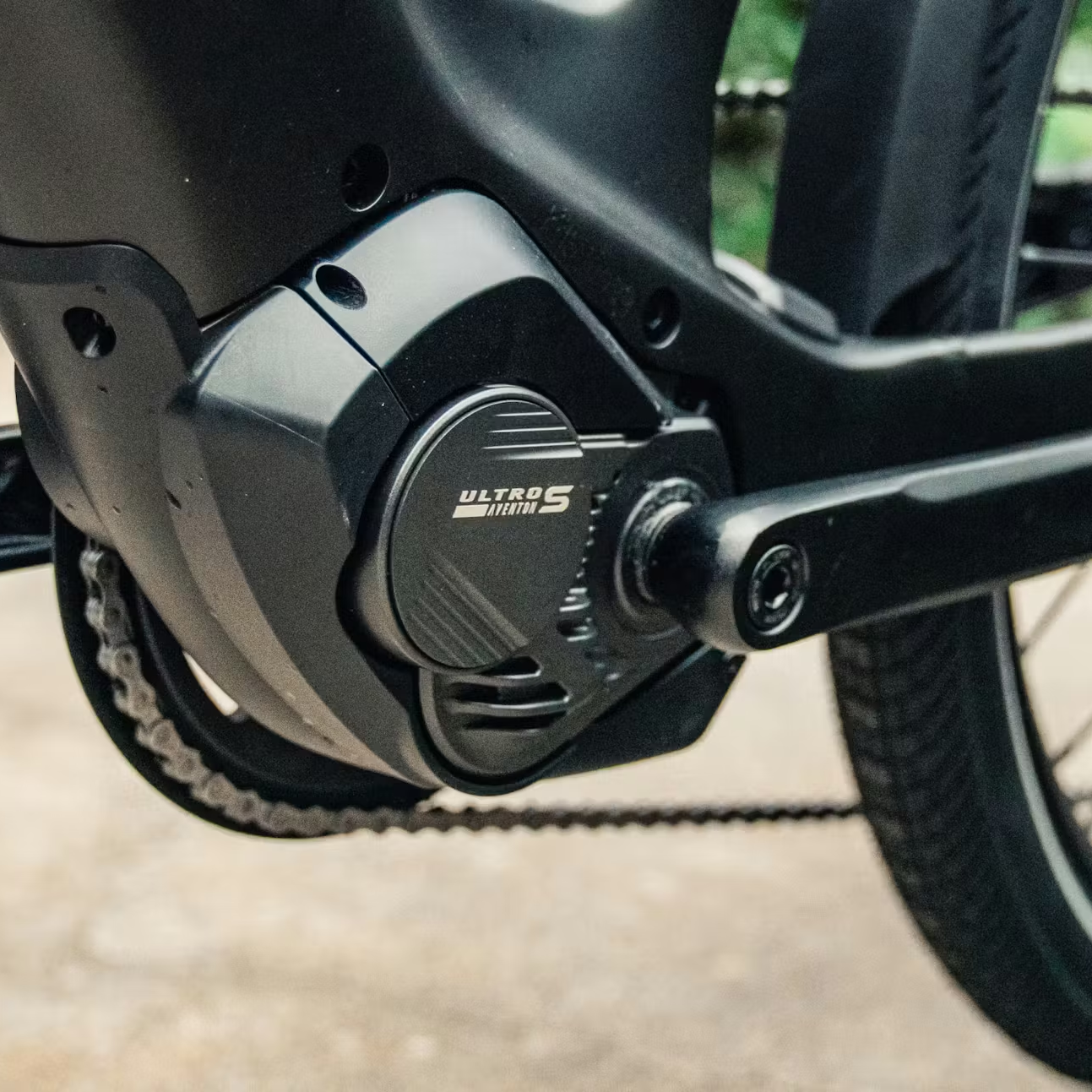

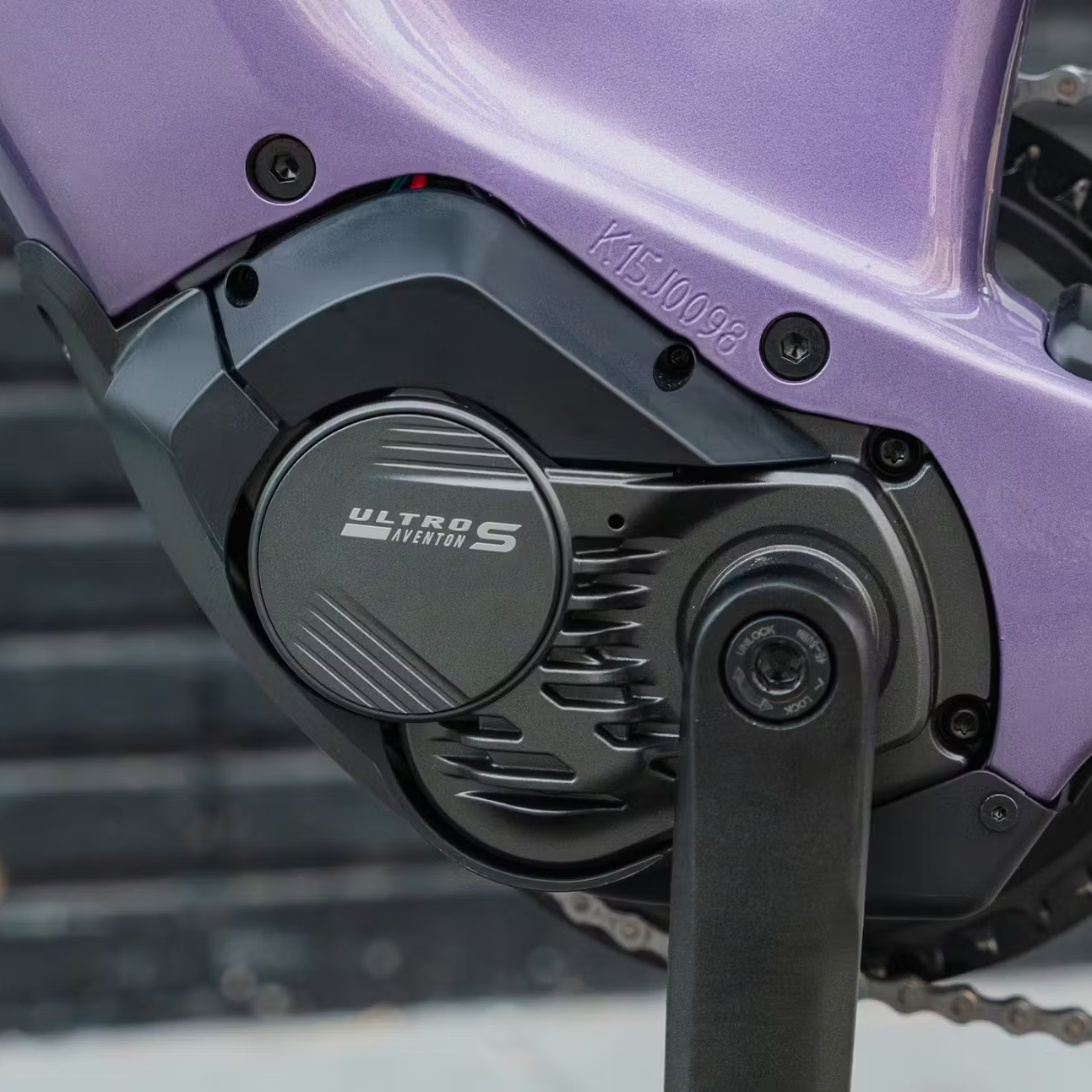

| Motor | Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power |
| Motor Torque | 100Nm |
| Motor Power | 750W Peak |
| Display | A280 Center Display |
| Battery | Removable Lithium-Ion. 36V, 20Ah, 800Wh, Samsung 21700 58E cells |
| Battery Weight | 8.7lbs |
| Throttle | Compatible, Not Included |
| Charger | 42V 4A charger |
| Charging time from 0% to 100% | 5 hours |
| Lights | Front and rear lights integrated |
| Smart Features | Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification |
| Front Brake | Tektro HD-M3120 2-Piston Hydraulic Disc Brakes |
| Rear Brake | Tektro HD-M3120 2-Piston Hydraulic Disc Brakes |
| Front Brake Rotor | 180mm 6 bolt |
| Rear Brake Rotor | 180mm 6 bolt |
| Brakes | Hydraulic |

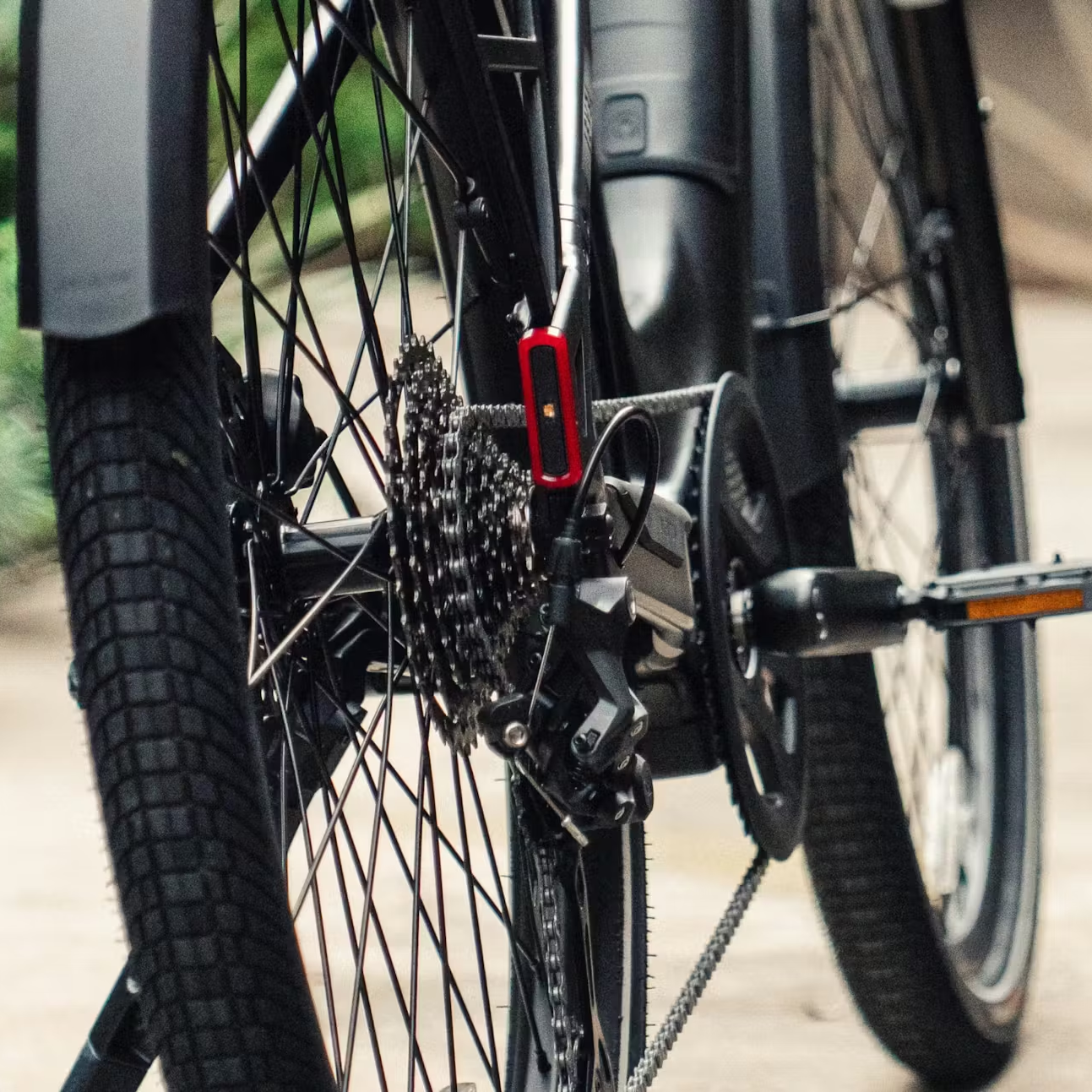

| Rear Derailleur | Shimano Cues 10-Speed |
| Chainring | 48T |
| Crankset | 165mm ISIS Splined |
| Pedals | 9/16" Composite Platform |
| Shifter | E-Shifter |
| Chain | 9/10/11 speed 126L |
| Cassette | Shimano Cues 10-Speed 11-39T |
| Saddle | Aventon Saddle |
| Seatpost | Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length |
| Seatpost Clamp | 34.9mm |
| Handlebars | 31.8mm, 680mm Width, 30mm Rise |
| Grips | Aventon Lock on grips |

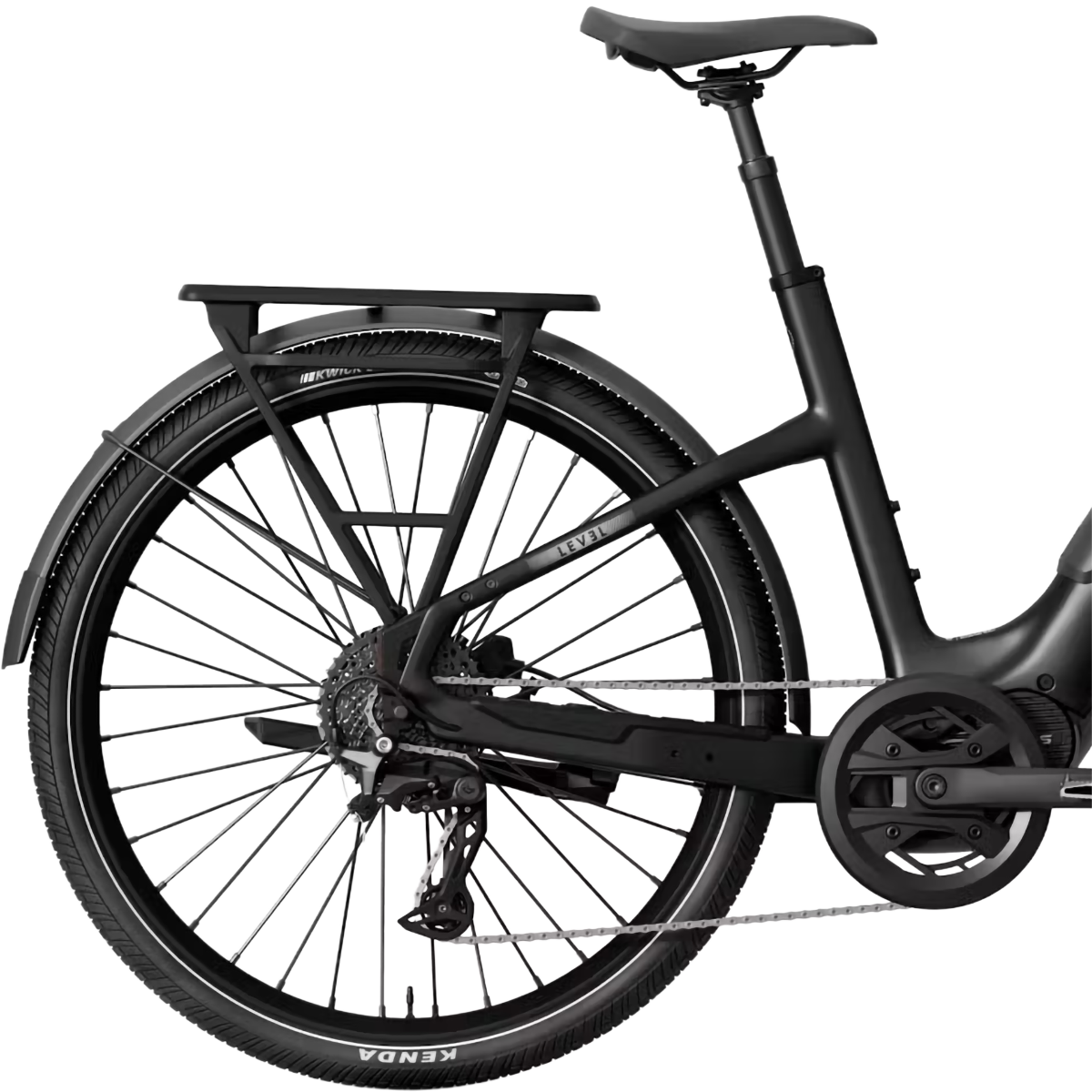

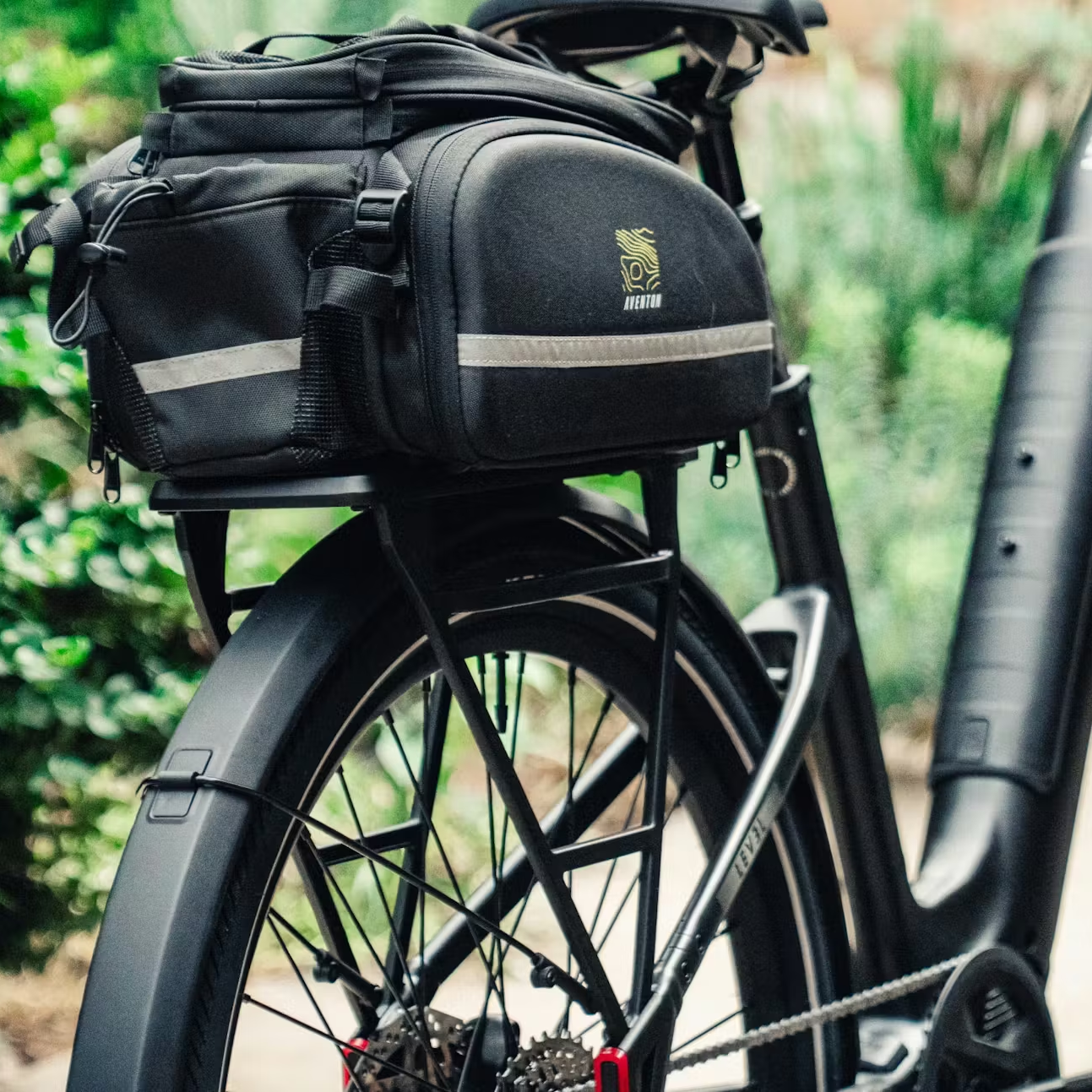

| Rear Rack | Included |
| Fenders | Included |
| Integrated Lights | Included |
* Specs subject to change
