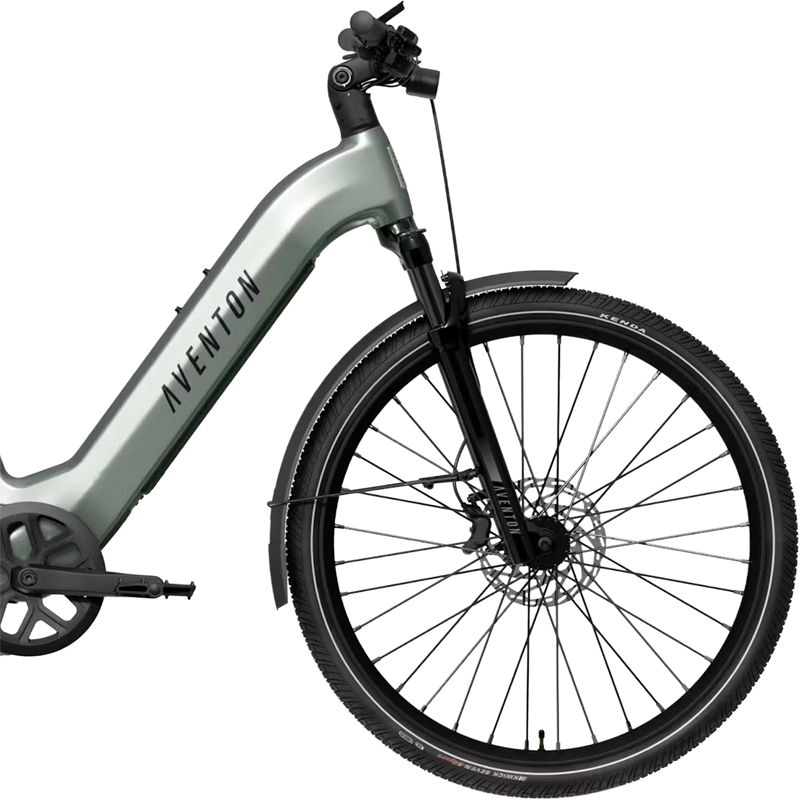

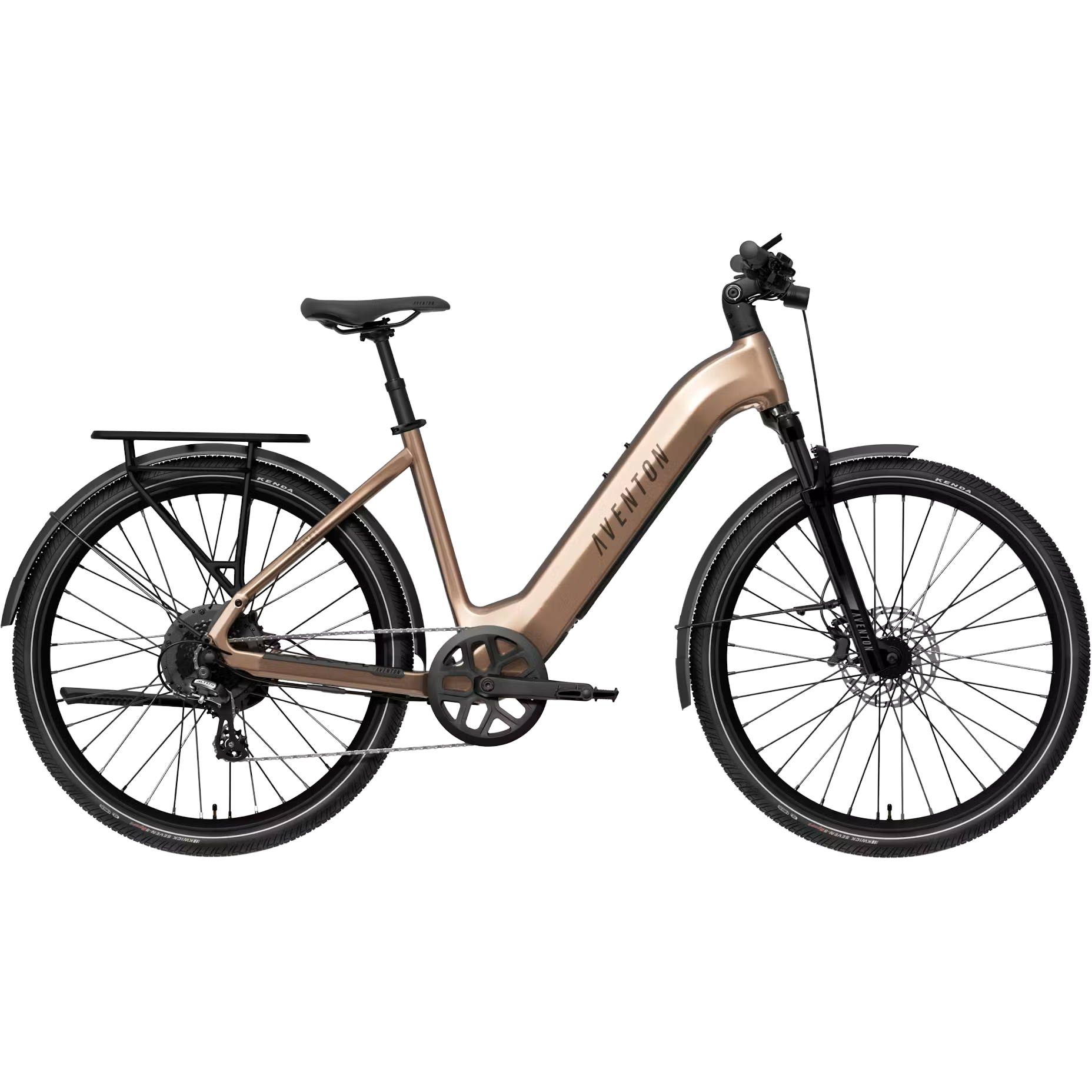

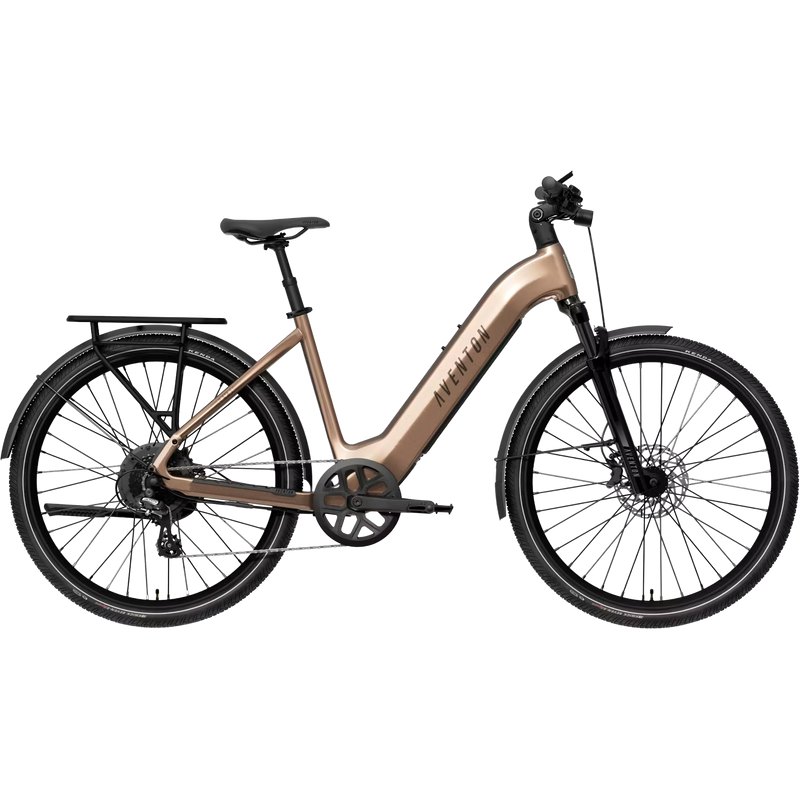

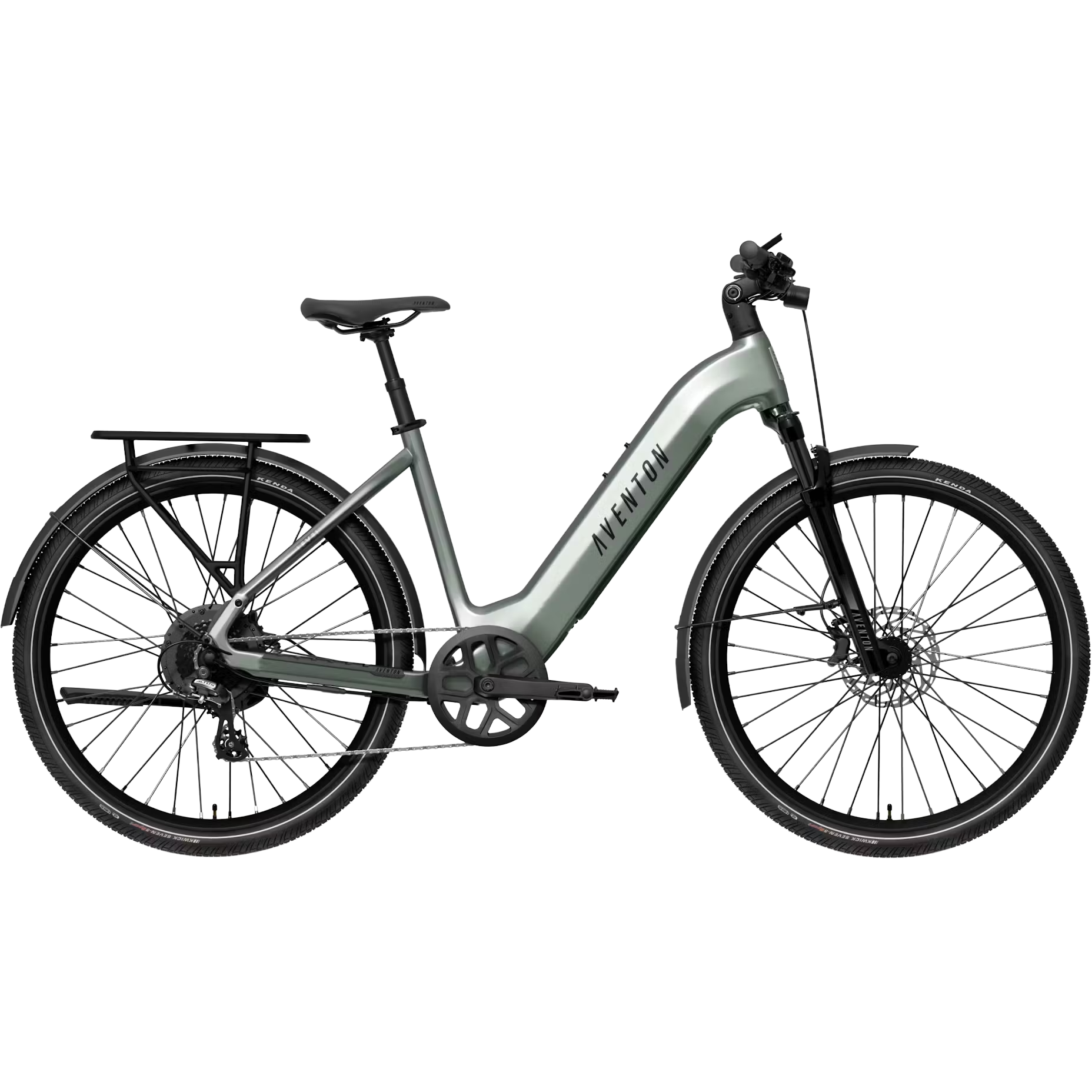

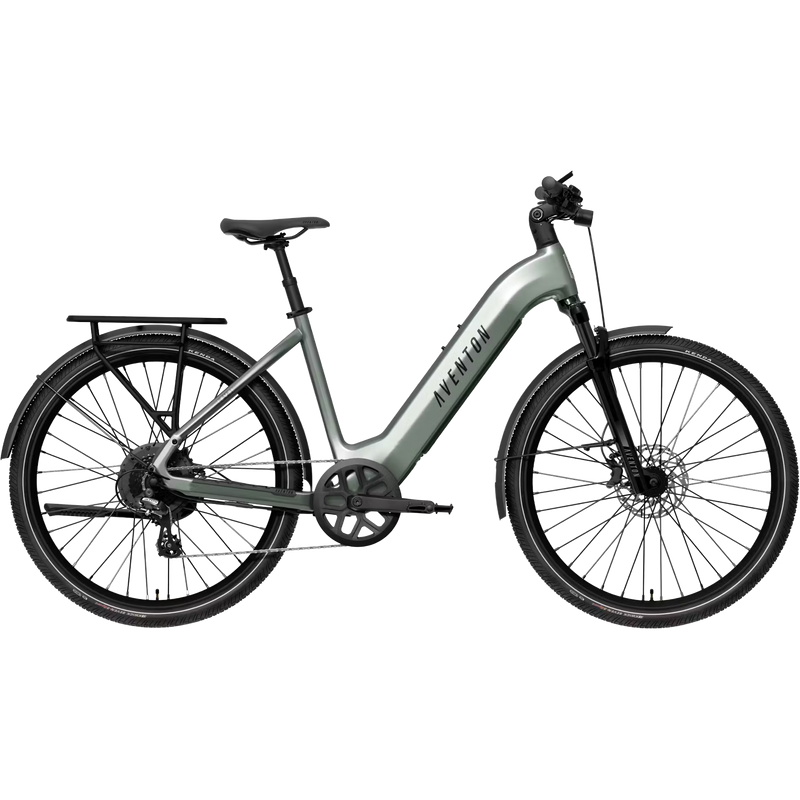

Level 4 REC Step-Through
The Level 4 REC builds on Aventon’s legacy as a trusted, accessible commuter option, pairing a 750W hub motor with up to 75 miles of range for dependable, all-weather transportation. It’s built for riders who value simplicity, confidence, and everyday utility, offering strong acceleration for city streets, comfortable suspension for longer rides, and intuitive connectivity for security and peace of mind. With its combination of power, practicality, and affordability, the Level REC is the perfect balance of comfort and capability for riders who just want a bike that works every time they need it.
- Motor Power: 750W (1440W in Boost)
- Energy Recovery: Regenerative Braking
- Wireless Connection: 4G†/GPS†
- Smart Security: Theft Deterrence
- Range: Up to 75 Miles
- Top Speed: Max 28 MPH
- 750W Hub Motor (1440W in Boost, 80Nm Torque): Bigger Motor, Smoother Power, Whisper-Quiet Ride
- Regenerative Braking: Charge on Descents. Gain ~10 Extra Miles
- Sensor Switch: Natural Assist or Engaged Boost. Alternate between your torque and cadence sensor on the fly
- 733Wh Removable Battery: Up-to-75 Mile Range. Long-range battery capacity supports the higher power output
- Keyless Battery Access: Conveniently access your battery anywhere from your phone or the bike's on-board display
- 4G / GPS Tracking: Real-time location tracking offers peace of mind when parking
- Integrated Rear Wheel Lock: Lock your hub instantly to prevent bike thefts
- Unusual Activity Detection & Alarm: Integrated alarm and remote notifications
- Apple Watch Connection: Integrated control right from your wrist
- Suspension Fork and Suspension Seatpost: Comfortably handle rough pavement and light gravel
- Commuter-Oriented Frame Geometry: Optimized geometry for extensive commutes and weekend adventures
- Rack and Fenders Included: Integrated rear rack and fenders
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production
*Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date. After the first year, a paid 4G connection subscription will be required to maintain access to these services. Please note that data subscription fees and terms may apply
| COMPONENT | PART |
|---|---|
| Weight | 68.5 lbs |
| Total Weight Limit | 300 lbs |
| Rider Height | S/M - 4'11"-5'7". || Large - 5'7"- 6'1" |
| Ebike Class | Class 2 (Convertible to Class 3) |
| Water Resistance | Bike - IPX5 // Components - IPX6 |
| Range | Up to 75 Miles |
| Safety Certifications | UL Safety Certified UL 2849 |
| Battery Safety Certifications | Certified to UL 2271 |
| Frame | 6061 Aluminum |
| Fork | 80 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, Nutted Axle |
| Rear Spacing | 148mm |
| Fork Spacing | 100mm |
| Front Wheel | 27.5" Double Wall Aluminum, 36 Hole, 15x100mm Thru Axle |
| Rear Wheel | 27.5" Double Wall Aluminum, 750W Nutted Axle Hub Motor |
| Tires | Kenda Kwick Seven-5 Sport 27.5"x2.2" |
| Motor | Hub Motor, 80Nm (96Nm in Boost Mode), 1188W Peak (1440W in Boost Mode) |
| Motor Torque | 80Nm |
| Motor Power | 750W (1188W Peak) |
| Display | Aventon A280 |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Battery Weight | 8.7lbs |
| Controller | 36V, 33A |
| Throttle | Included |
| Sensors | Sensor Switch Compatible (Cadence & Torque) |
| Charger | 42V 4A charger |
| Charging time from 0% to 100% | 5 hours |
| Lights | Front and rear lights integrated |
| Smart Features | Regenerative Braking, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification |
| Front Brake | Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff |
| Rear Brake | Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff |
| Front Brake Rotor | 180mm 6 bolt |
| Rear Brake Rotor | 180mm 6 bolt |
| Brakes | Regenerative Braking |
| Rear Derailleur | Shimano Altus RD-M310 |
| Shifter | Shimano 8-Speed Trigger |
| Chain | 7/8 speed 120L |
| Cassette | Shimano CS-HG200-8 8 speed Cassette, 12-32T |
| Chainring | 48T |
| Chainring BCD | N/A |
| Crankset | 165mm |
| Bottom Bracket | Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm |
| Pedals | 9/16" Composite Platform |
| Saddle | Aventon Saddle |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
| Seatpost Clamp | 34.9mm |
| Handlebars | Aluminum 31.8mm, 680mm |
| Stem | Aluminum, 31.8mm Clamp, 60mm Length, 90 Degree Adjustable w/ Internal Routing |
| Grips | Aventon Lock on grips |
| Rear Rack | Included |
| Fenders | Included |
| Integrated Lights | Included |
* Specs subject to change
