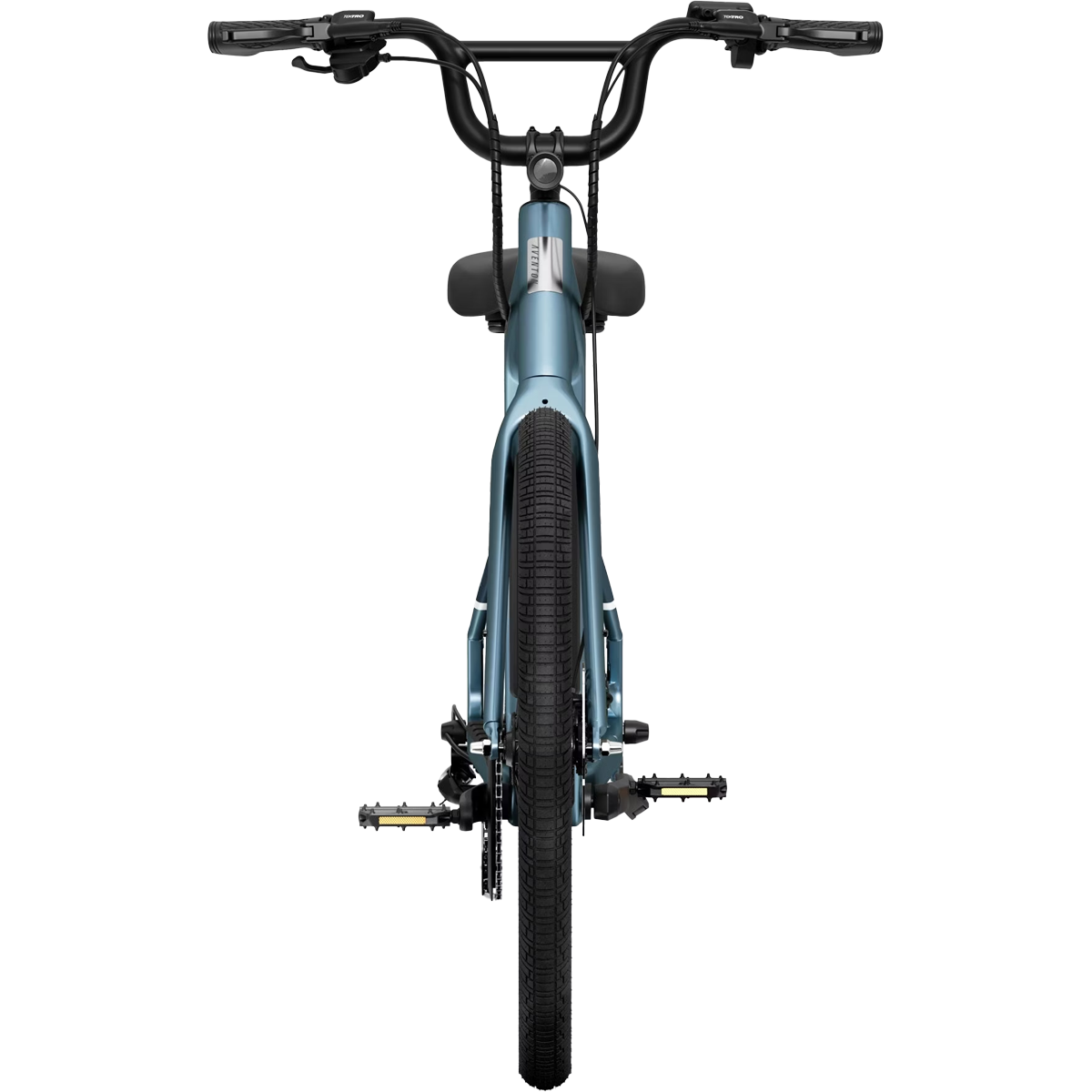

Pace 4 Step Through

Pace 4 Step Through
$1,799.00

Color Blue Steel
Size L Size Chart
Quantity:
Not available for shipping
Learn more
Not available for DoorDash
Learn more
  • Battery: Removable Internal Lithium-ion. 36V
  • Max Torque: 60Nm
  • Motor: 36v, 500W
  • Range: Up to 70 Miles
  • Top Speed: Class 2: Top speed 20 mph
The Aventon Pace 4 is the next-generation cruiser you've been waiting for. It combines smart bike technology, comfortable frame geometry, and enhanced touchpoints to maximize fun on every ride. Designed for those looking to get around town, go for a
Returns & Price Matching
ComponentPart
MOTOR36v, 500W
MOTOR TORQUE60Nm
MOTOR POWER500W

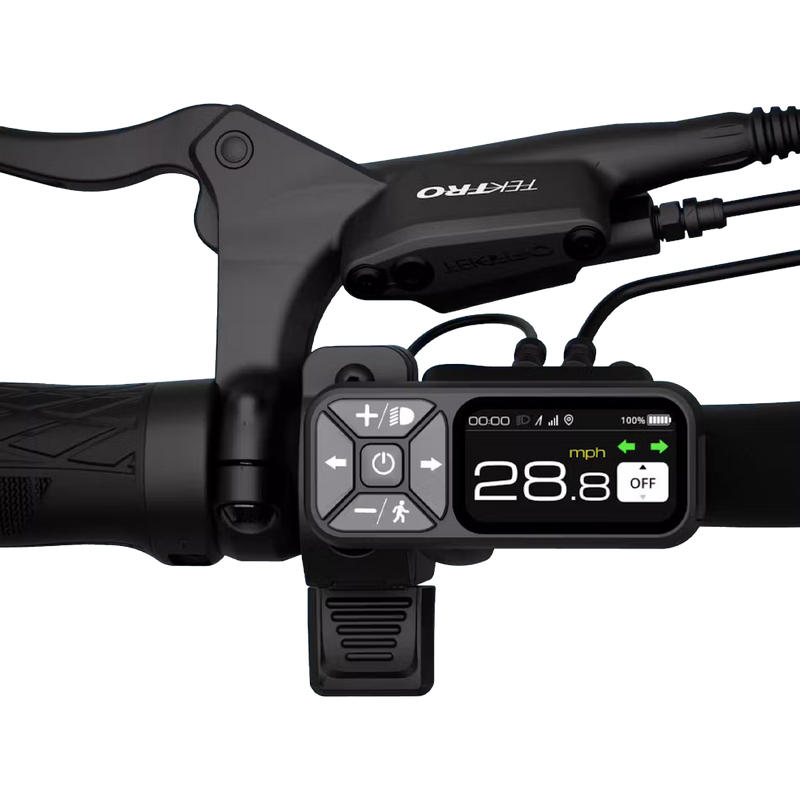

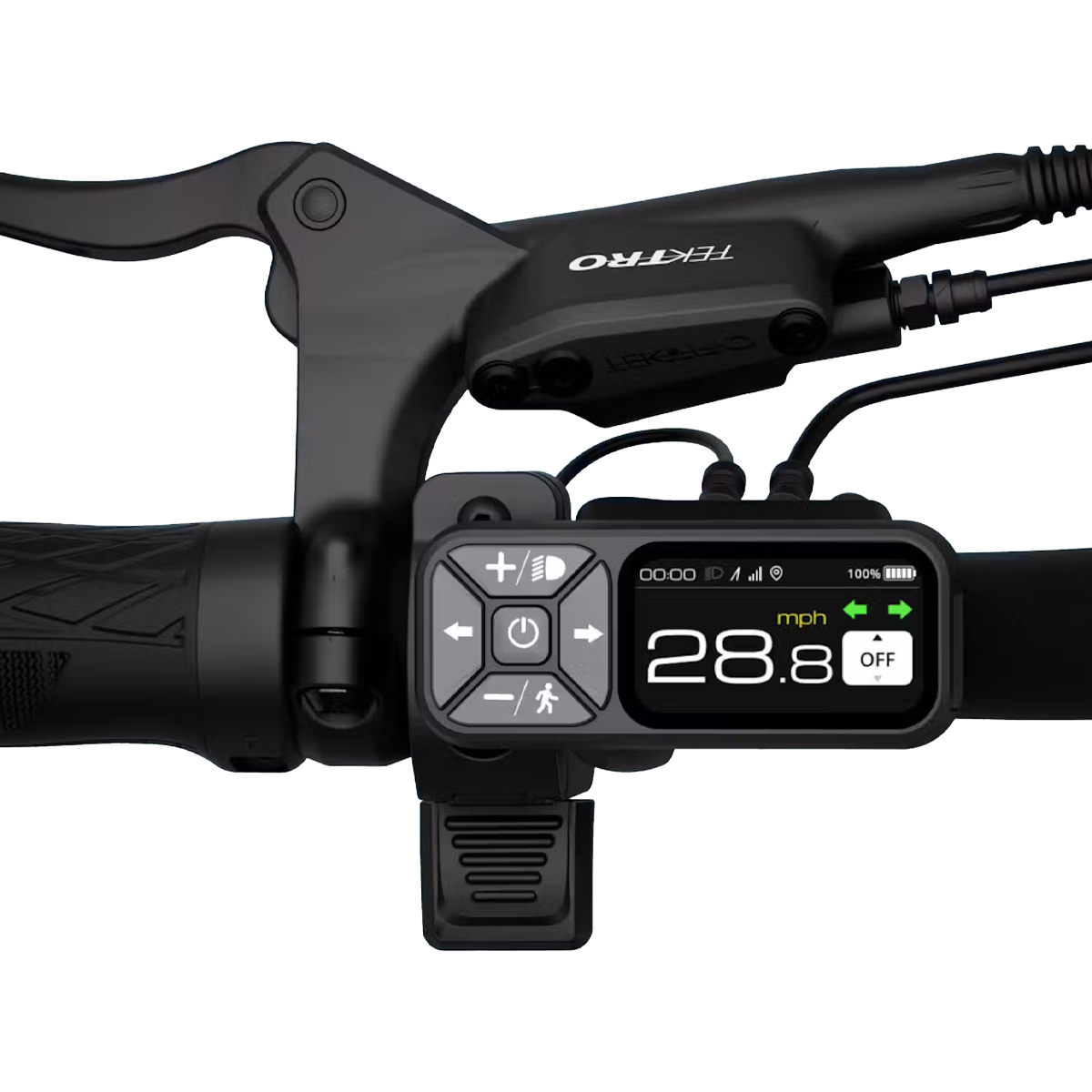

DISPLAYAventon BC147
BATTERYRemovable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
BATTERY WEIGHT8.7lbs
CONTROLLER36V, 24A
THROTTLEAventon LH Handlebar Mounted
SENSORSDouble Sided Bottom Bracket Torque Sensor
CHARGER36V Output: 42V/ 4A
CHARGING TIME FROM 0% TO 100%5 hours
RANGEUp to 70 Miles
EBIKE CLASSClass 2 (Can be converted to Class 3 if local laws and regulations allow)
FRAME6061 Aluminum, Gravity Cast Front Triangle
FORKRigid Aluminum Fork
REAR SPACING142mm
FORK SPACING100mm
FRONT WHEEL27.5", 36 hole, Nutted axle, Schrader Valve
REAR WHEEL27.5", 36 hole, Nutted hub drive motor, Schrader Valve
TIRES27.5" x 2.1"
FRONT BRAKETektro Hydraulic w/ E-Cutoff
REAR BRAKETektro Hydraulic w/ E-Cutoff
FRONT BRAKE ROTOR180mm 6 bolt
REAR BRAKE ROTOR180mm 6 bolt
REAR DERAILLEURShimano Altus 8-Speed
SHIFTERShimano 8-Speed Trigger
CHAIN7/8 speed 122L
CASSETTE12-32T / 8 Speed Shimano CS HG200-8
CHAINRING48T
CHAINRING BCDN/A
CRANKSET3pc, 170mm crank arm
BOTTOM BRACKETSquare Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
LIGHTSFront and rear lights integrated
PEDALS9/16" Composite Platform

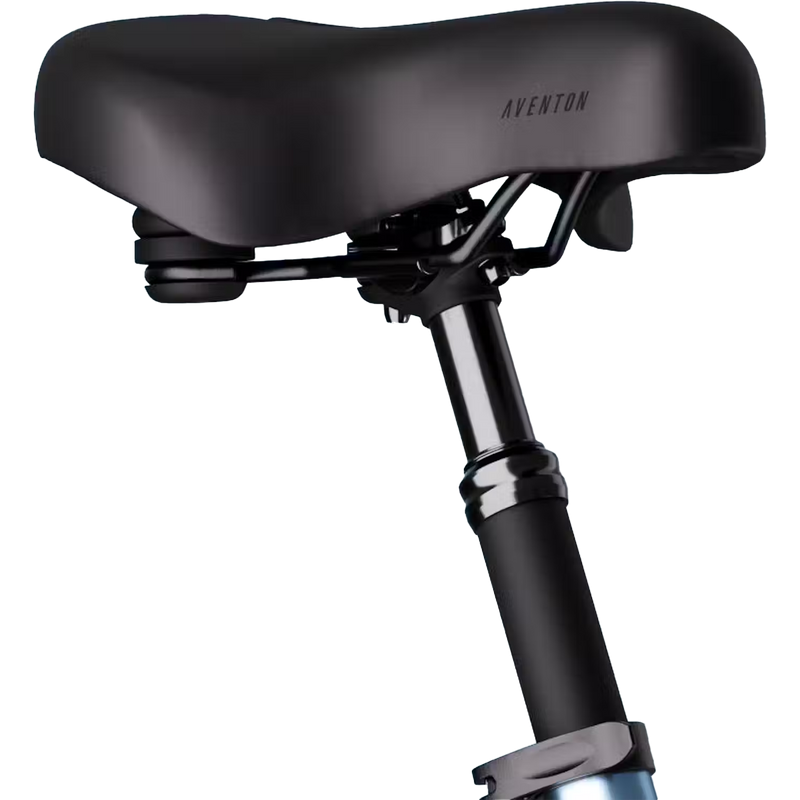

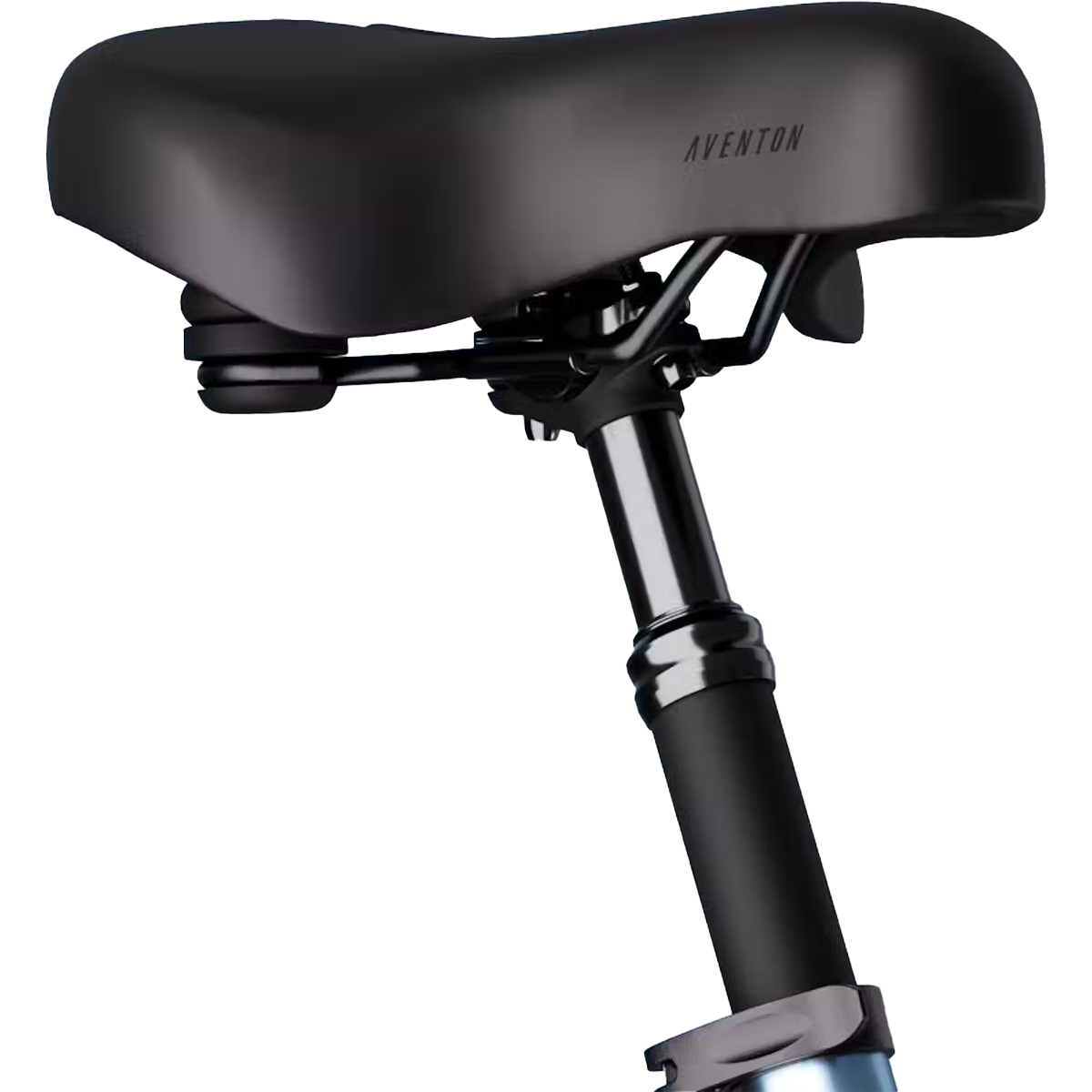

SADDLEAventon Saddle
SEATPOSTAventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
SEATPOST CLAMP34.9mm
HANDLEBARSBMX Style Aluminum 31.8mm, 720mm
STEM31.8mm x 50mm, +15 Degree Rise
GRIPSAventon Ergonomic Comfort lock on grips
HEADSETSealed Bearing Headset
KICKSTANDIncluded, rear mount
WEIGHT53 lbs
TOTAL WEIGHT LIMIT300 lbs
WATER RESISTANCEIPX4
BATTERY SAFETY CERTIFICATIONSCertified to UL 2271
BIKE SAFETY CERTIFICATIONSUL Safety Certified
UL 2849
IDEAL USECruising

 RegularLarge
ASeat Tube Length (mm/in)400 / 15.75480 / 18.90
BTop Tube Length Horizontal (mm/in)694 / 27.32721.8 / 28.42
CBottom Bracket Drop (mm/in)70 / 2.7670 / 2.76
DHead Tube Length (mm/in)190 / 7.48210 / 8.27
EHead Tube Angle67°67°
FSeat Tube Angle67°67°
GRear Chainstay Length (mm/in)480 / 18.90480 / 18.90
HFront Wheel Center (mm/in)615 / 24.21640 / 25.20
IWheelbase (mm/in)1085 / 42.721110 / 43.70
JReach (mm/in)430 / 16.93450 / 17.72
KStack Height (mm/in)621 / 24.45639.4 / 25.17
LFork Length (mm/in)426 / 16.77426 / 16.77
MFork Offset (mm/in)43 / 1.6943 / 1.69
NTrail (mm/in)86 / 3.3990 / 3.54
 Stand Over Height (mm/in)430 / 16.93430 / 16.93

* Specs subject to change
