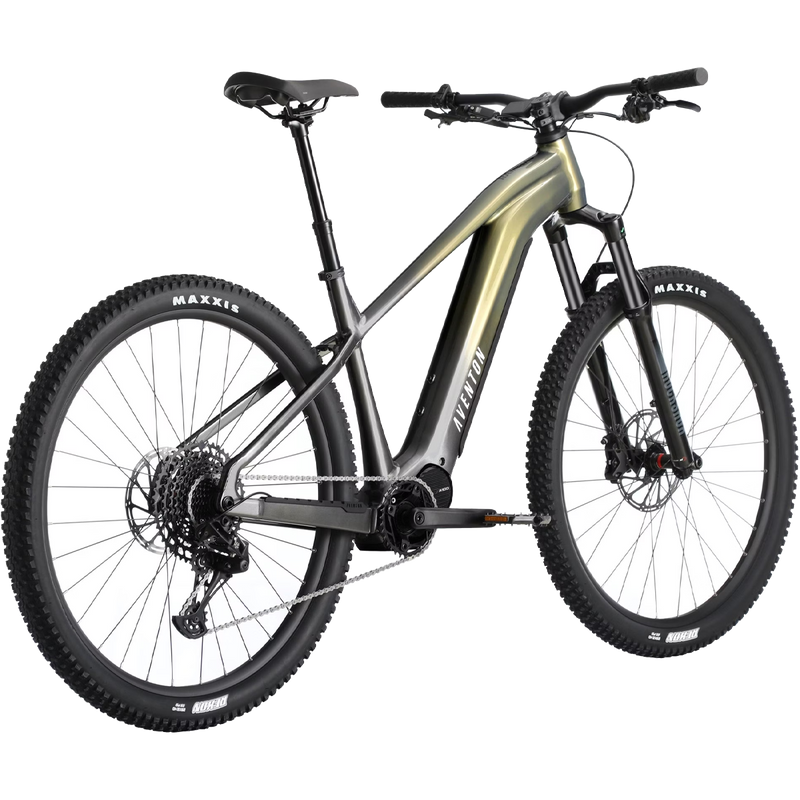

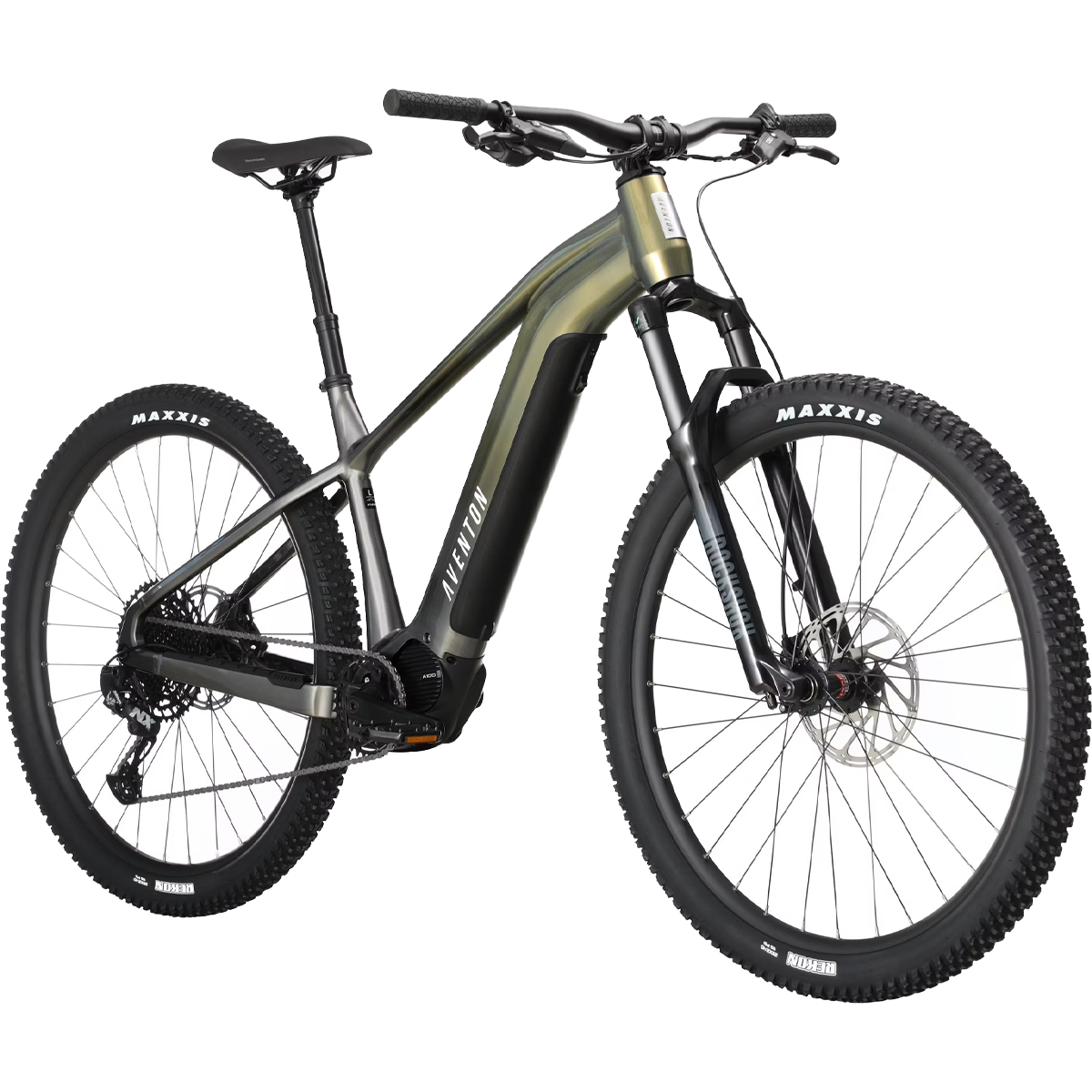

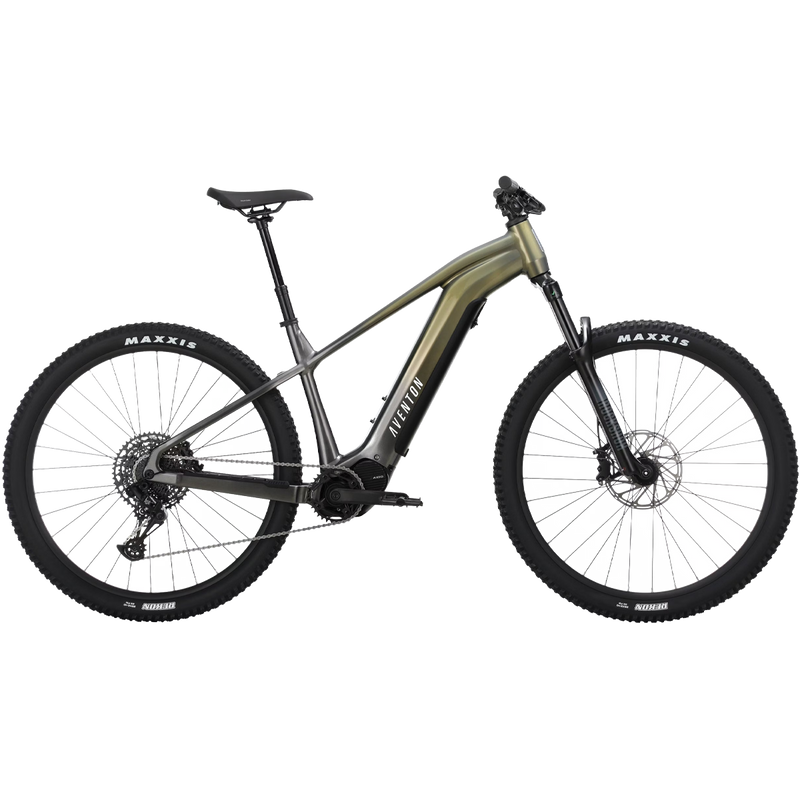

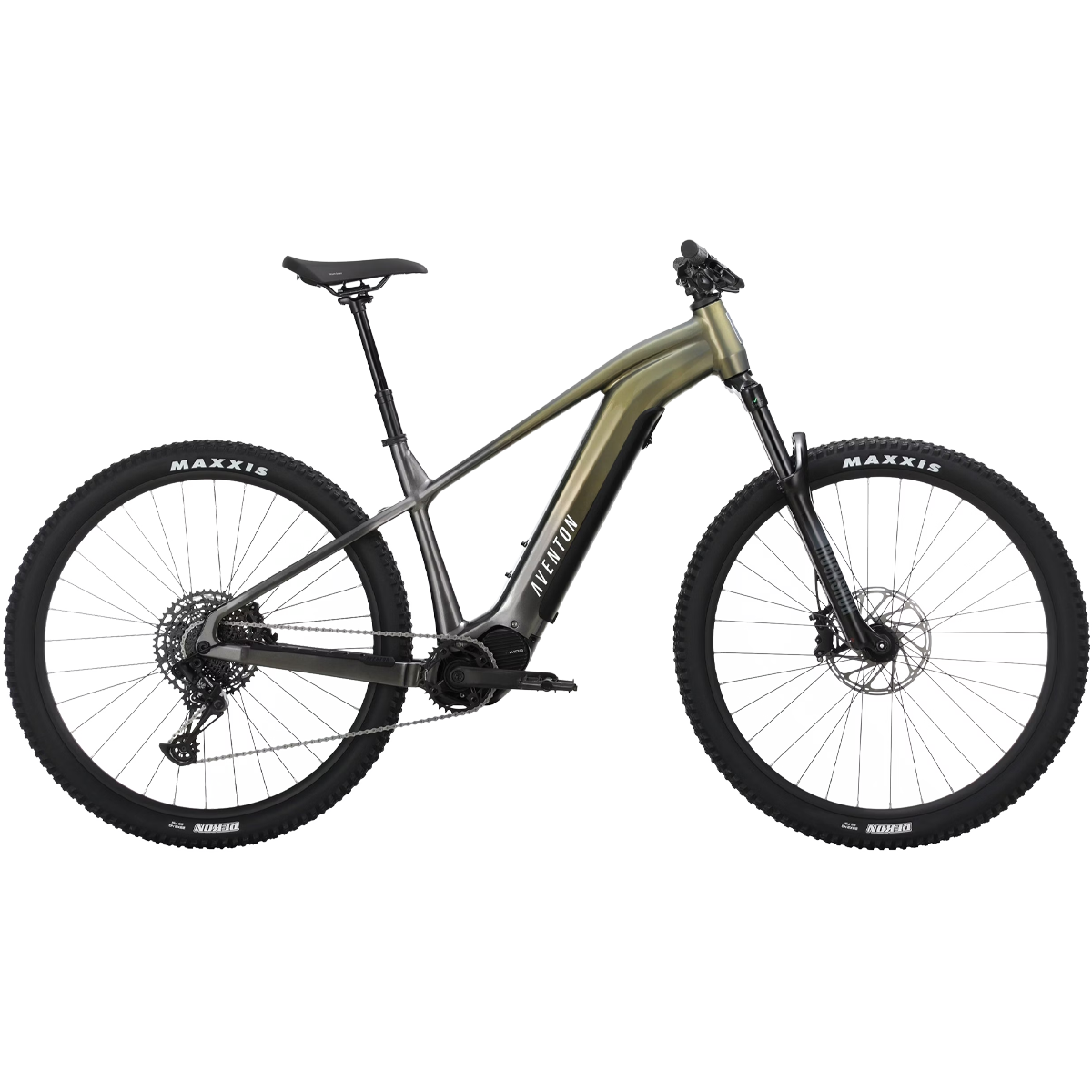

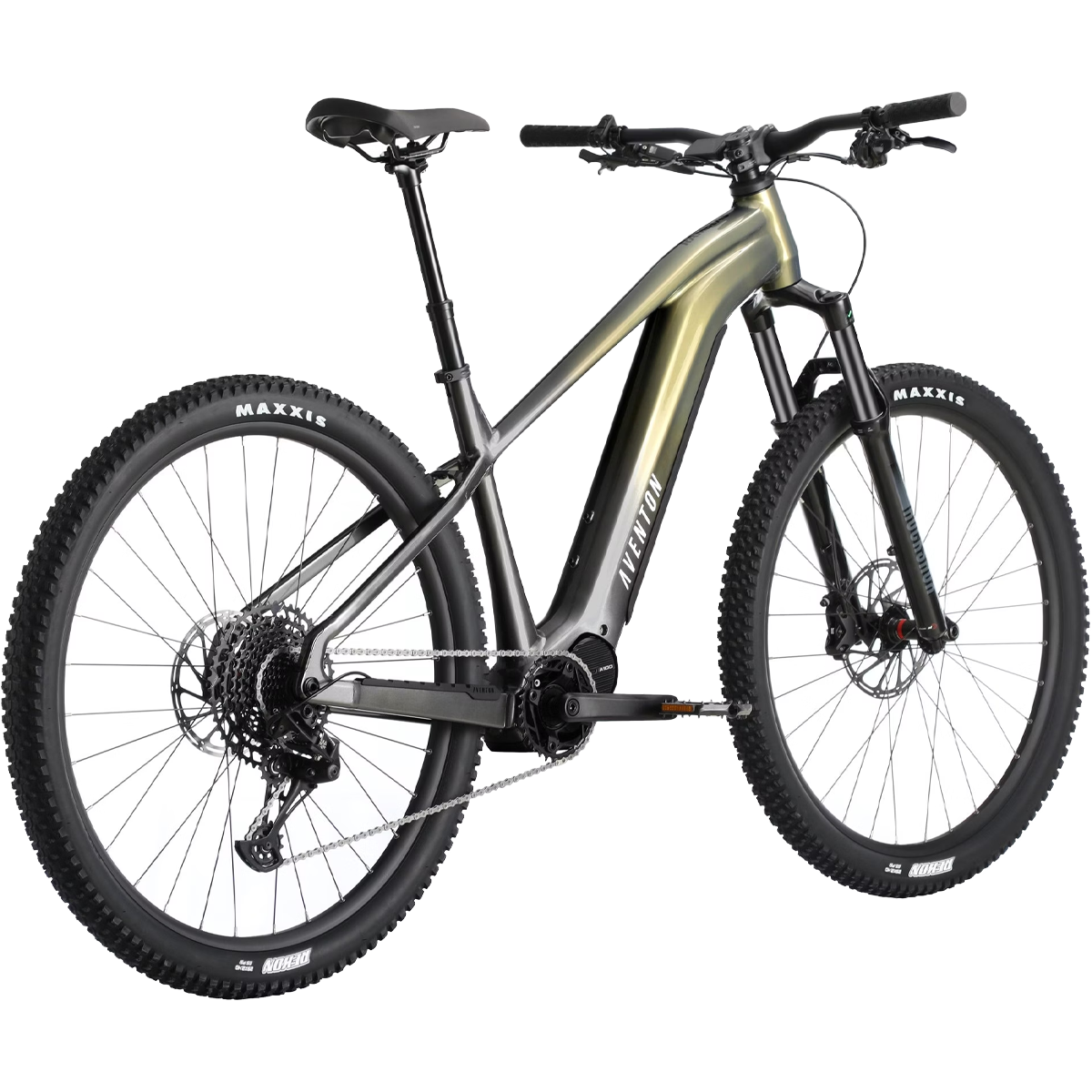

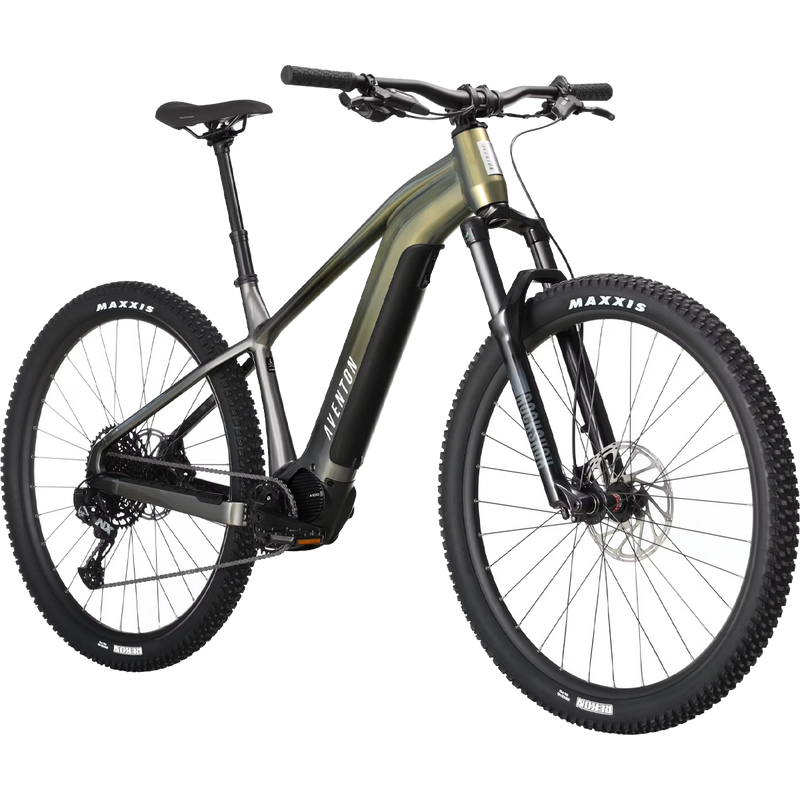

Ramblas eMTB
Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time. Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.
- Ideal Use: Mountain Biking, Urban Riding
- TOP SPEED: 20 MPH
- RANGE: Up To 80 Miles
- 100 NM of Torque
- Battery Range varies by terrain type and riding style
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| Component | Part |
|---|---|
| MOTOR | Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating |
| SPEED | 20 MPH |
| RANGE | Up to 80 miles |
| FORK | RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube |
| PEDAL ASSIST | 3 Levels |
| FRAME | 6061 Single-Butted Aluminum Alloy |
| FRAME STYLE | Step-Over |
| HUBS | 15x110 32H Front, 12x148 32H Rear |
| RIM | Double Wall Aluminum 32h Front & Rear |
| SPOKES | Black Stainless 13 Gauge |
| TIRES | S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4" |
| WHEEL SIZE | 27.5": Small / 29": Med-XL |
| TUBES | Butyl Rubber, Presta Valve |
| BATTERY | Aventon 708 WH. 36V LG 21700 cells. |

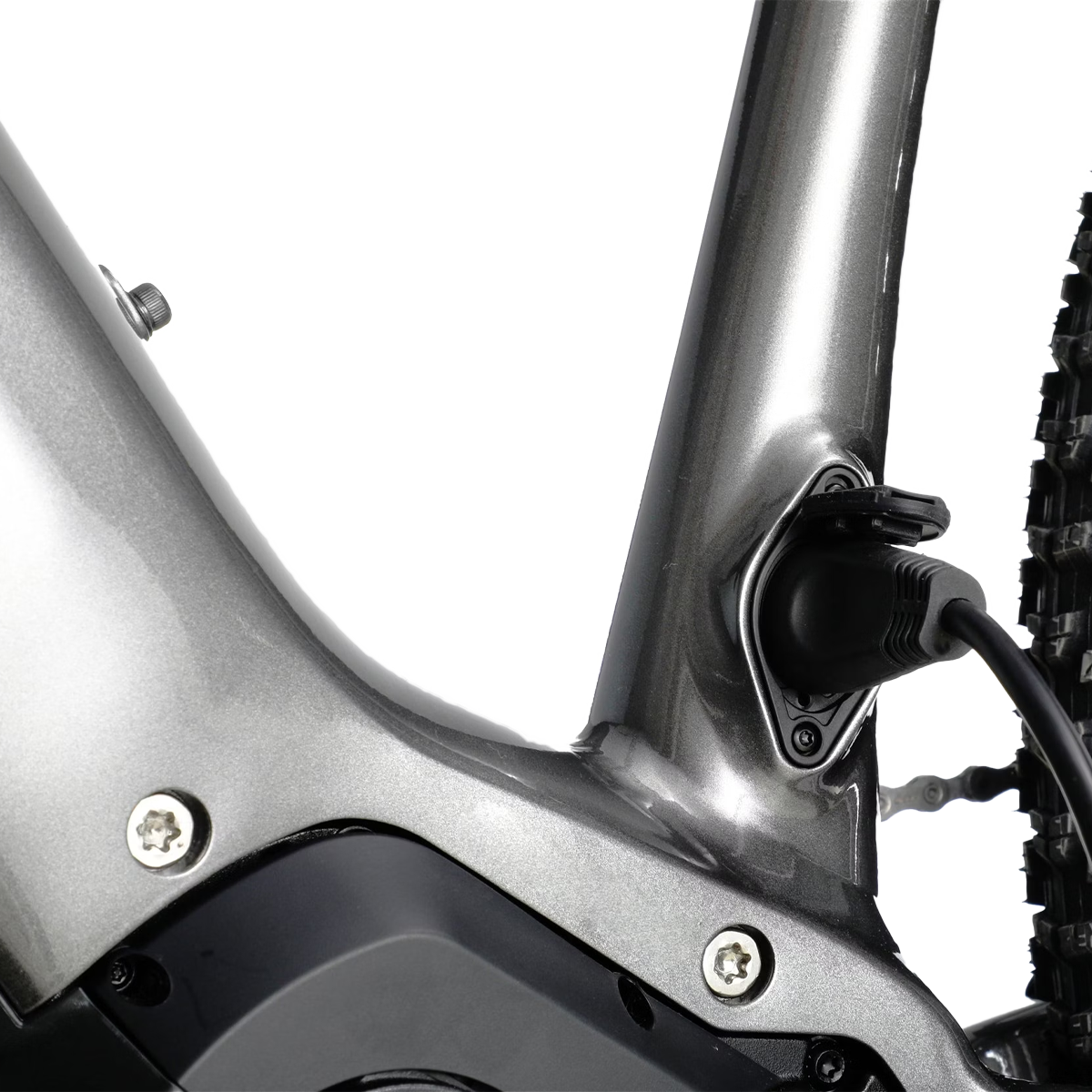

| CHARGER | 42V 4A charger |
| DISPLAY | LCD Smart "Easy Read" |
| REAR BRAKE ROTOR | Sram 180mm 6 bolt |
| FRONT BRAKE ROTOR | Sram 200mm 6 bolt |
| BRAKES | Sram DB8 mineral 4 piston hydraulic disc brakes |
| REAR DERAILLEUR | Sram NX Eagle 1x12 |
| PEDALS | 9/16" Alloy Platform |
| CHAINRING | Sram Nx 34t |

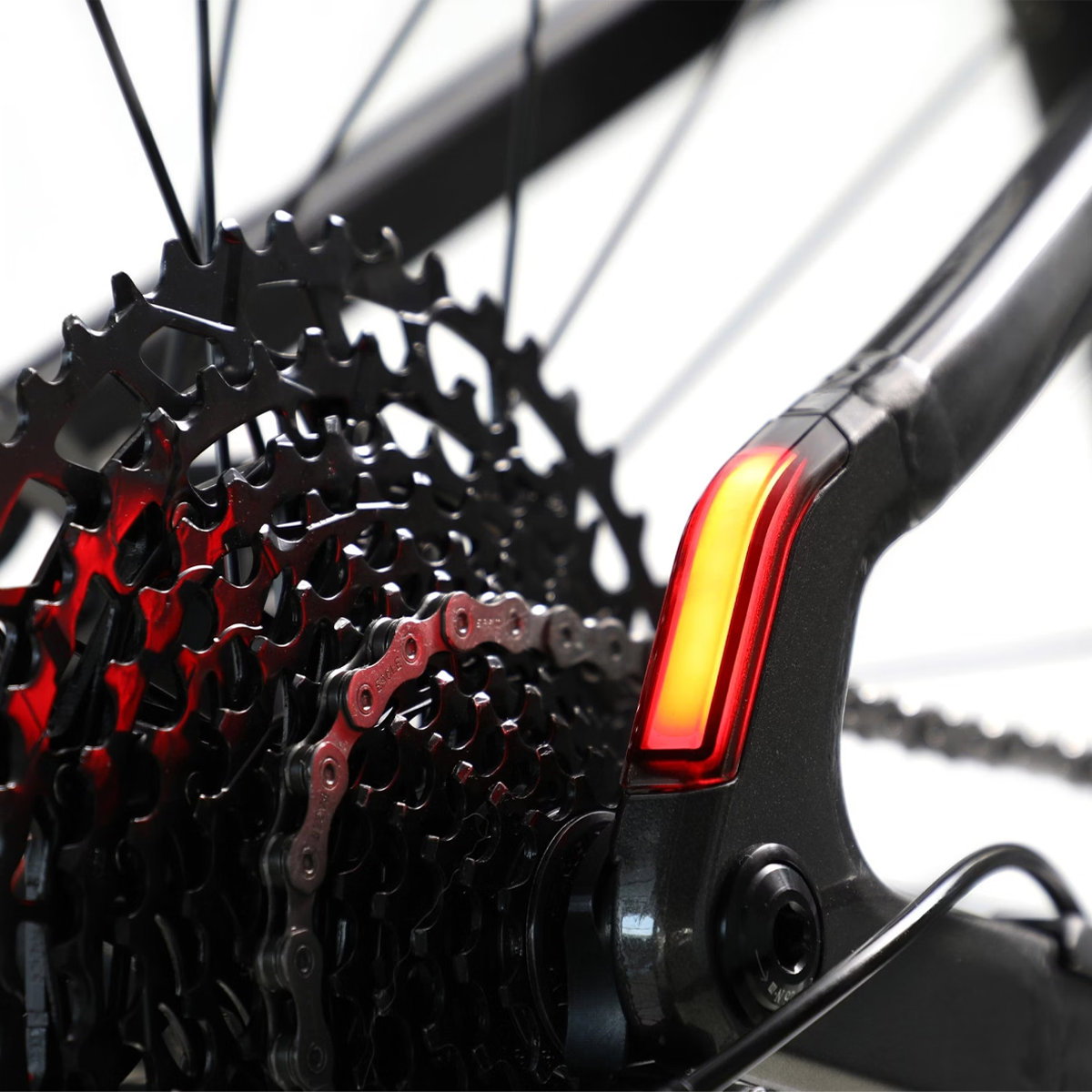

| CASSETTE | Sram SX Eagle 1x12 11-50t |
| SHIFT LEVER | Sram NX Eagle 1x12 single click |

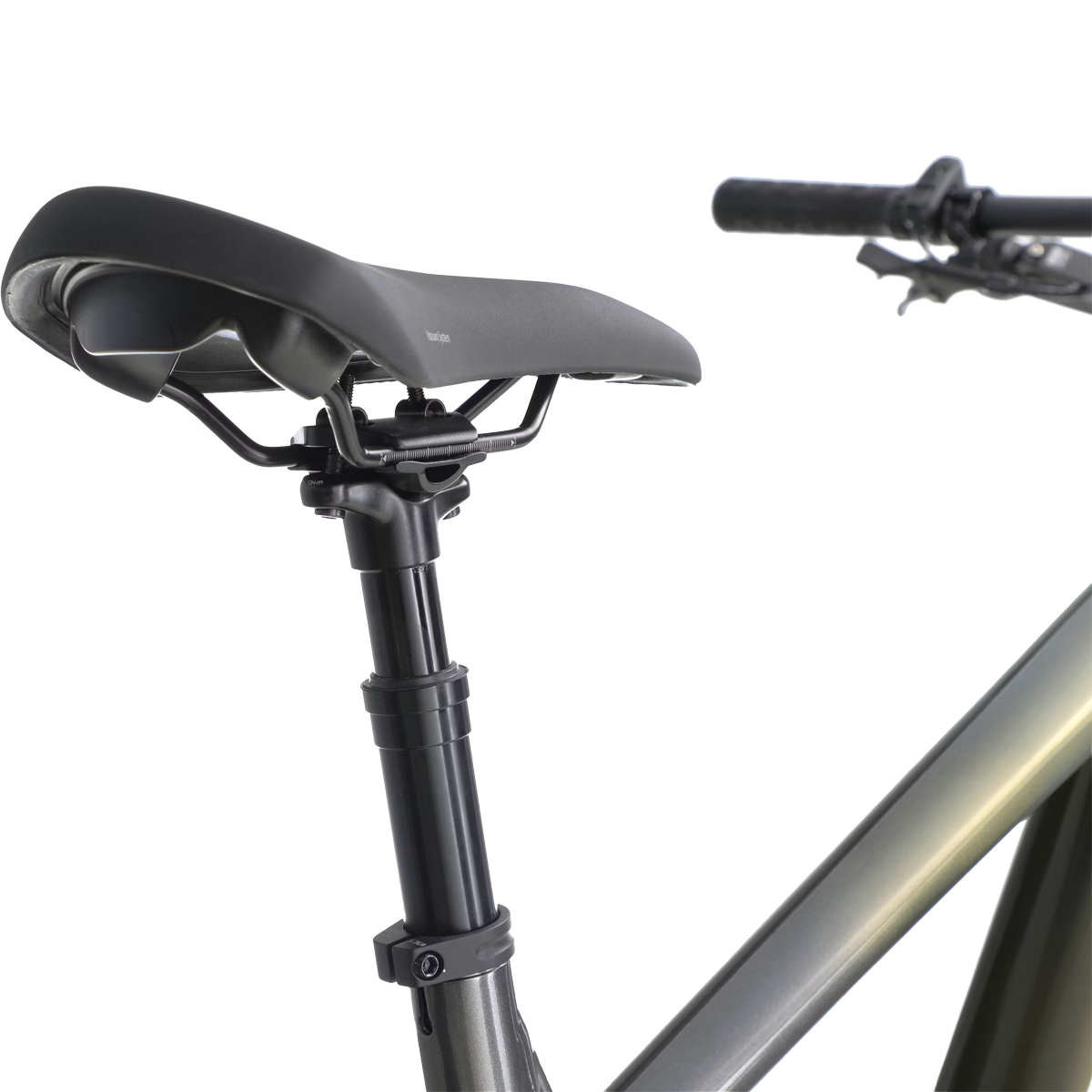

| SEATPOST | 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length |

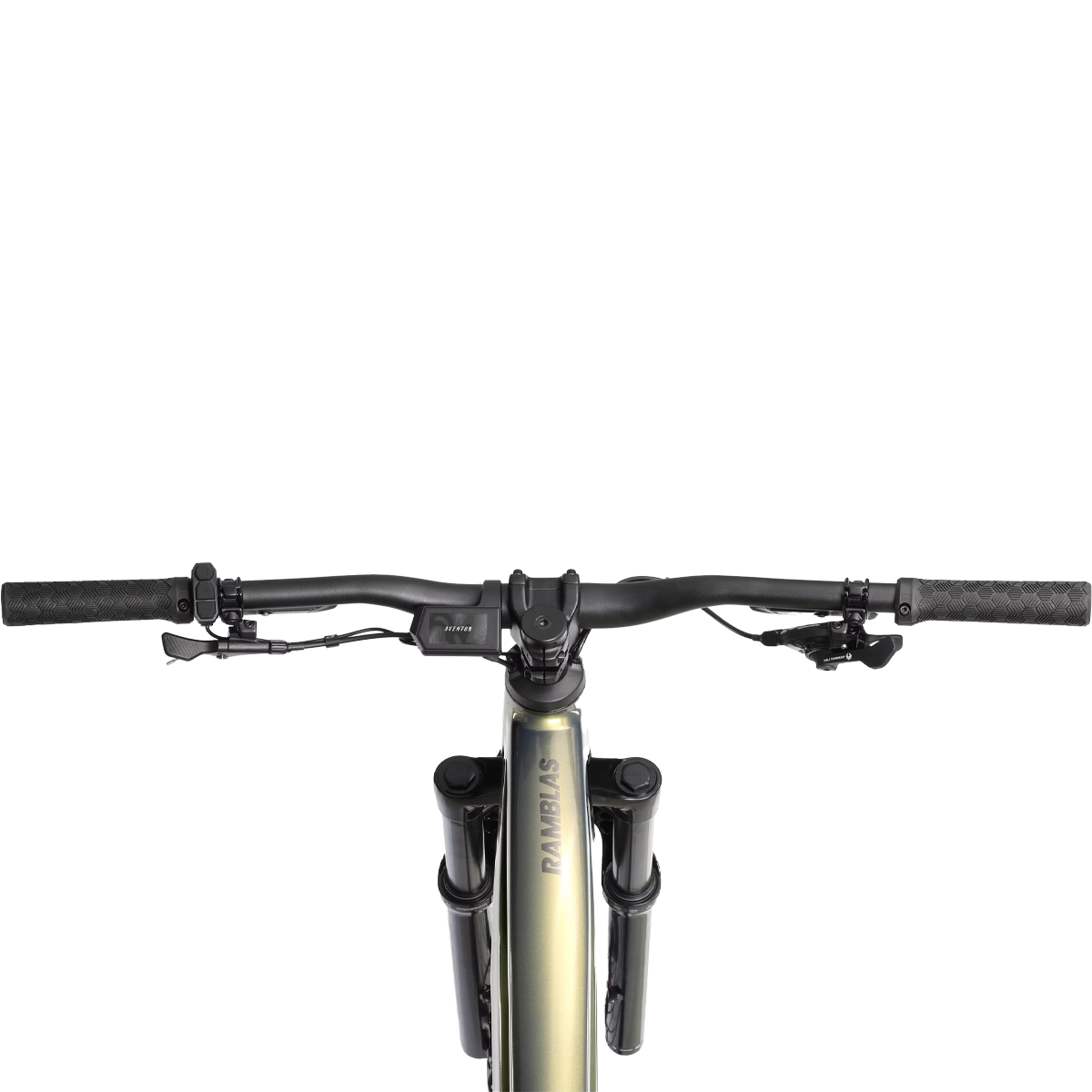

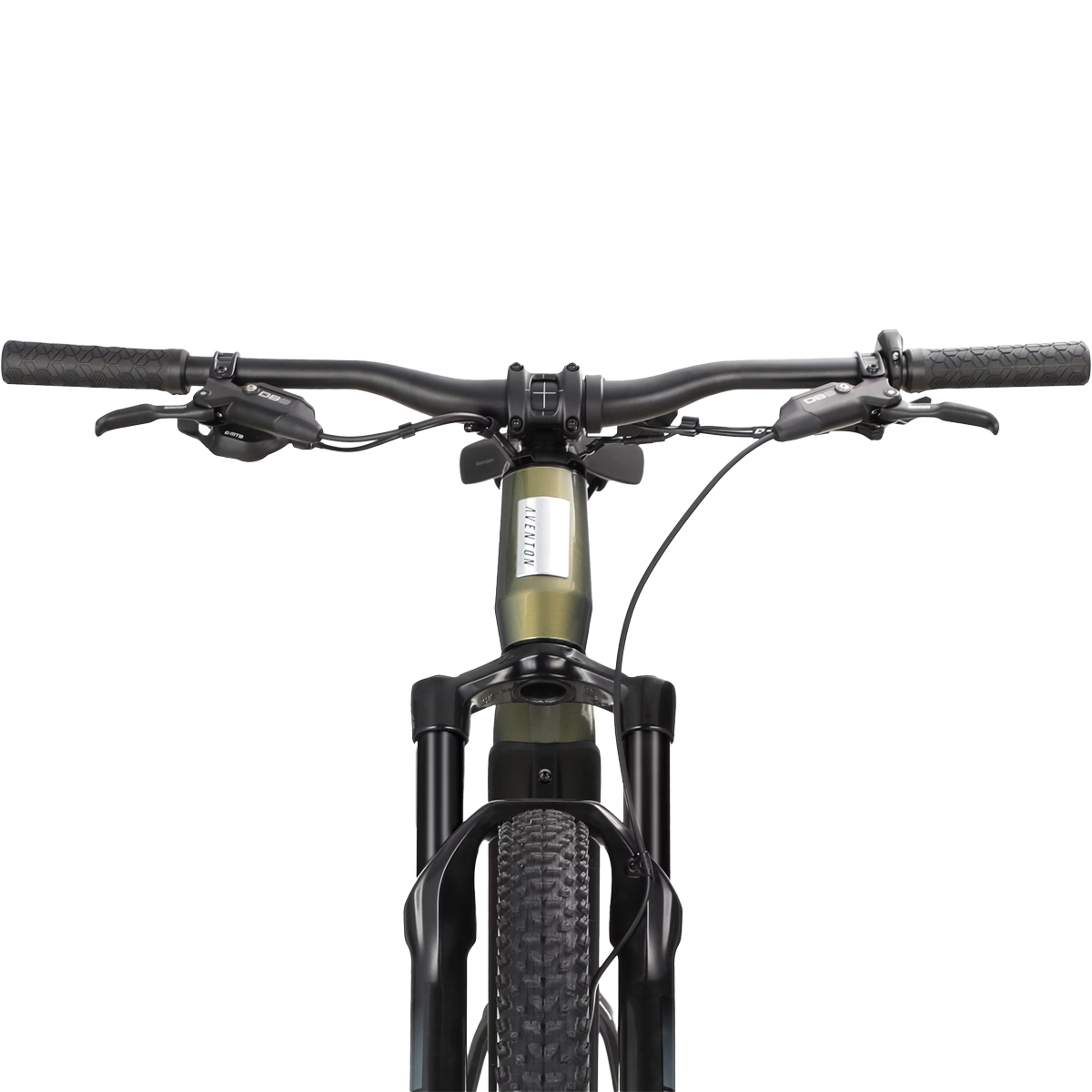

| HANDLEBARS | 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL |

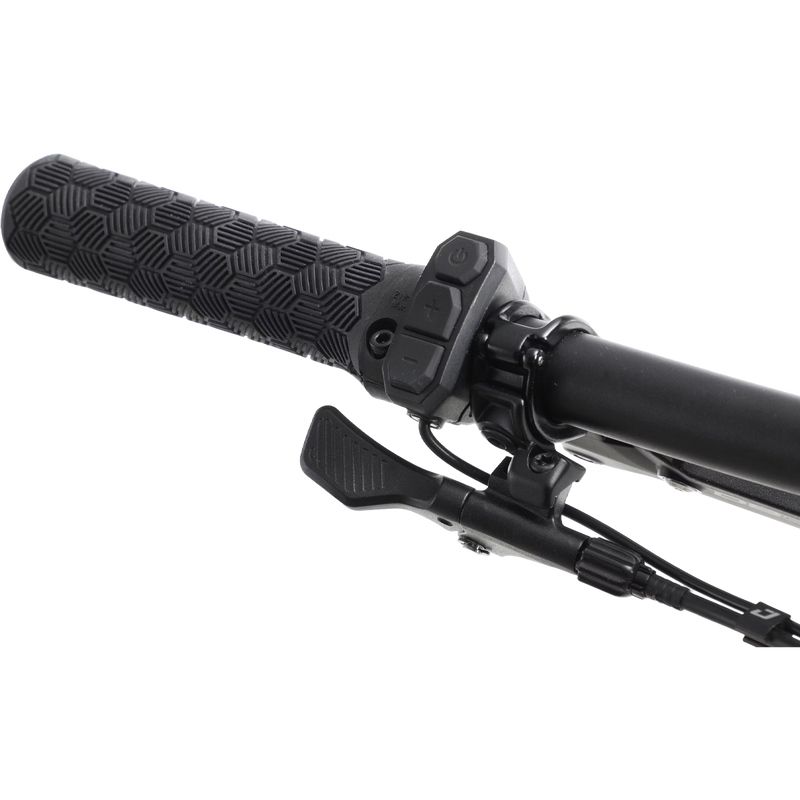

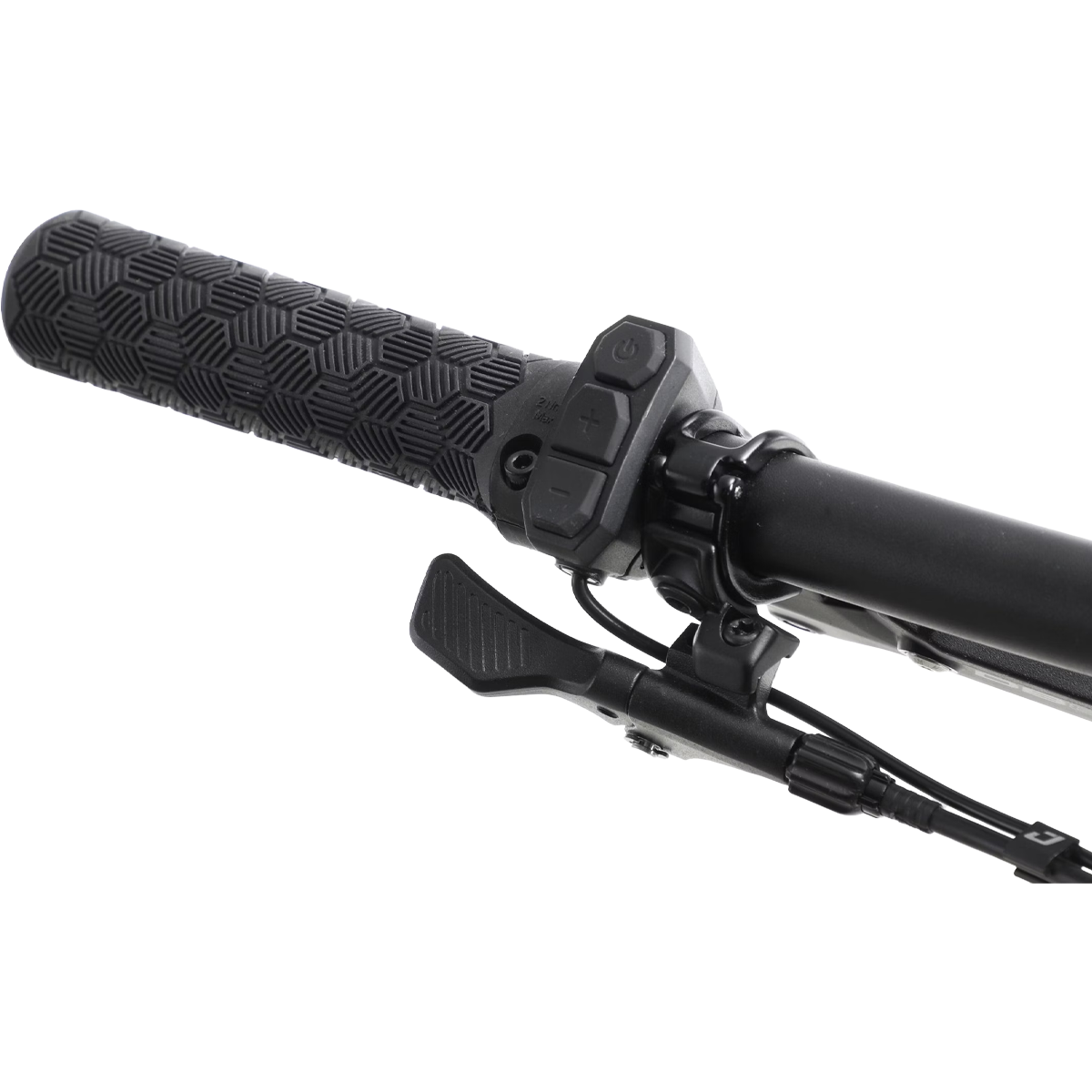

| GRIPS | Lock on |
| STEM | 35mm Ø, 40mm length |
| SEAT CLAMP | Aventon 34.9mm |
| INCLUDED ACCESSORIES | Kickstand, Front Headlight |
| WEIGHT | 54lbs, size large, w/o pedals |
| TOTAL WEIGHT LIMIT | 300 lbs |
* Specs subject to change
