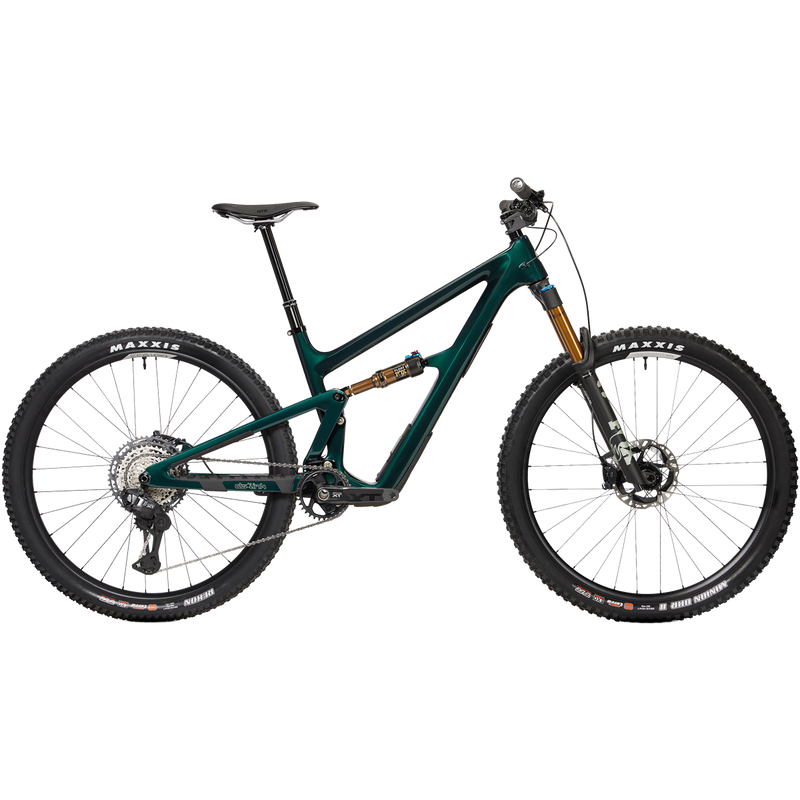

Ripley XT Di2
Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game. Ibis added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of their riders falling between 5’5” and 6’0”, they introduced a new "Extra-Medium" size.

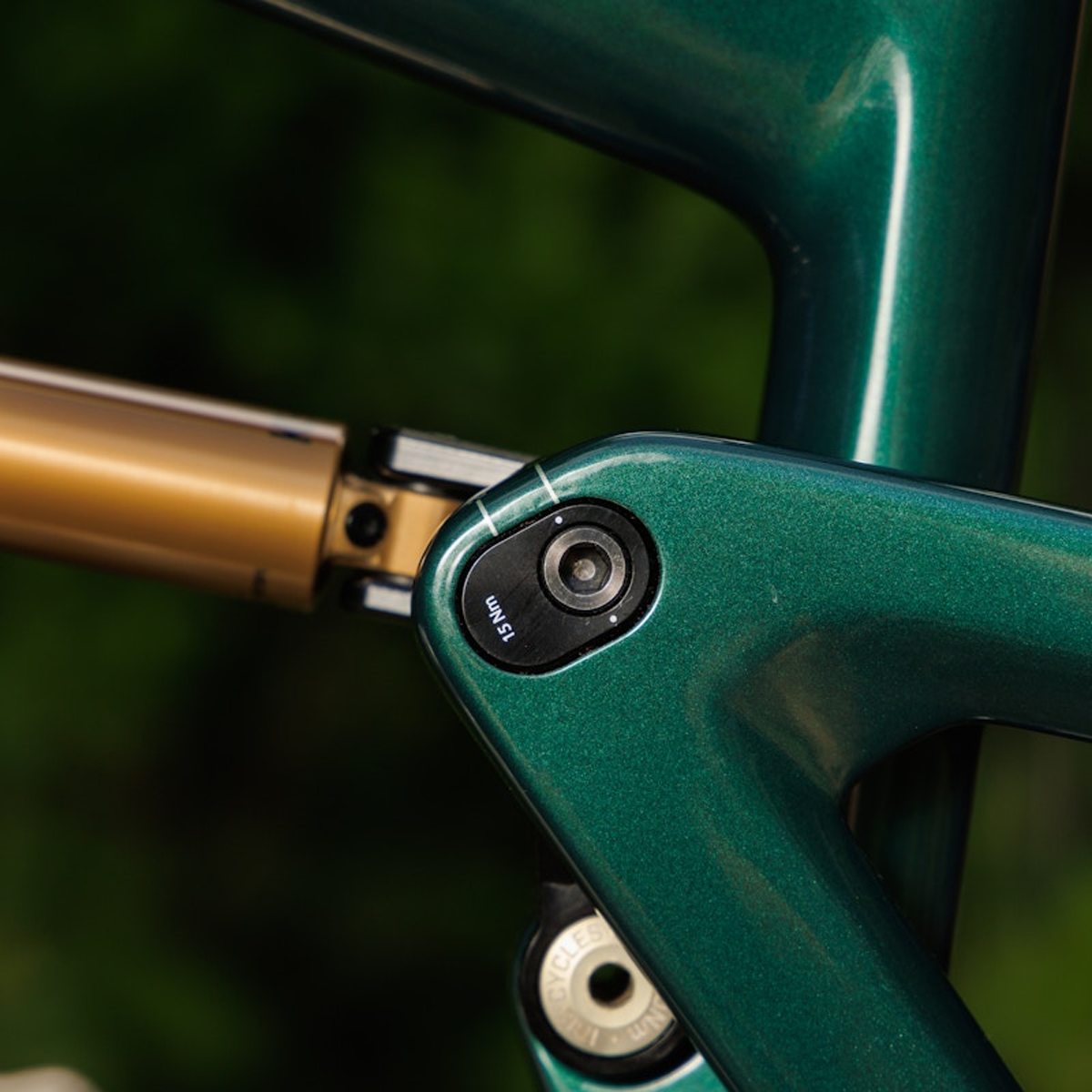

- Ibis added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Ripley ships with 29” wheels

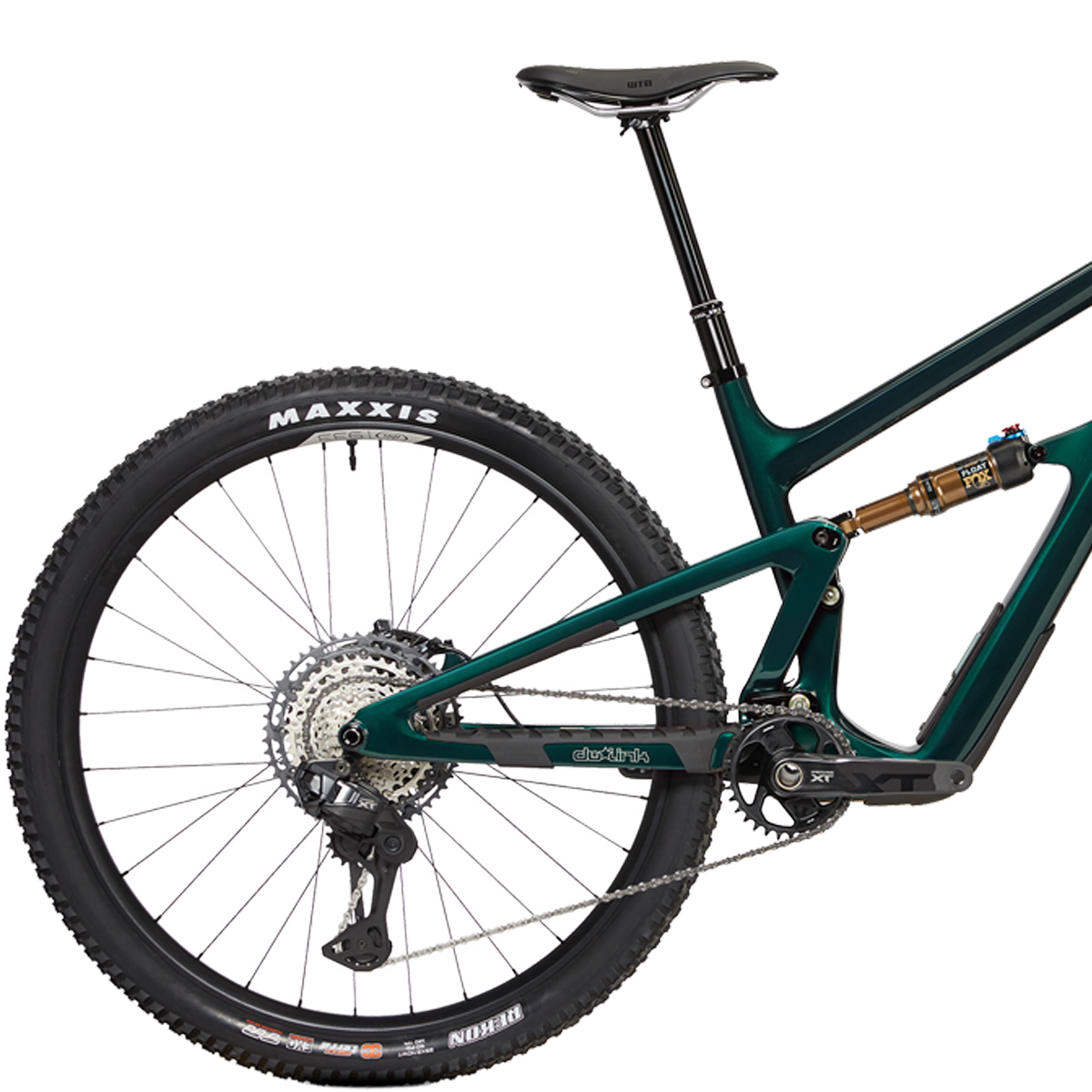

- Dw-link suspension platform known for its efficient climbing and excellent downhill performance; it sets the standard for modern mountain bikes

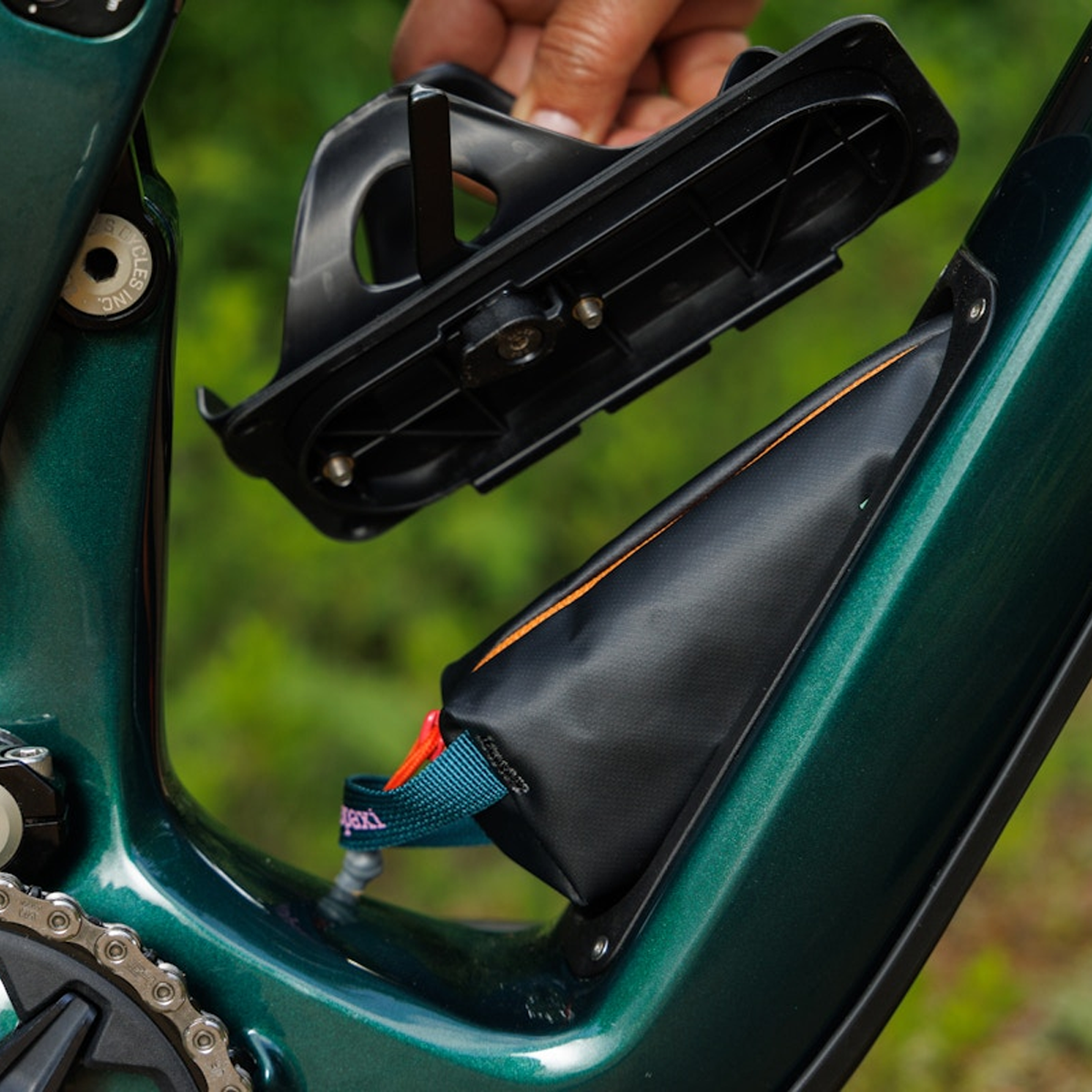

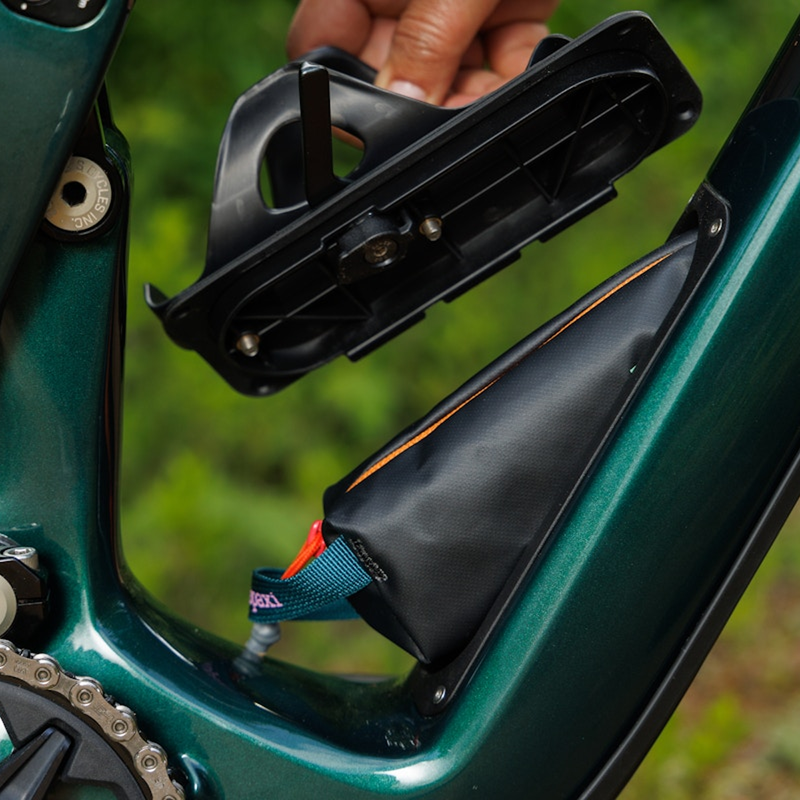

- Get that gear off your back and into your bike with Ibis' frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust
- Ibis partnered with Cotopaxi to craft a set of two internal bags for your snacks, tools, or whatever
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production
| COMPONENT | PART |
|---|---|
| Version | V5 |
| Frame Material | Carbon Fiber Monocoque |
| Frame Weight | 7.3 lbs XM frame w/ Fox Float |
| Fork | Fox Factory 36SL 140mm, Grip X |
| Shock | Fox Float, Factory Series, Float w/EVOL, 210mm x 52.5mm |
| Wheels | Ibis 933 Aluminum Rims, Ibis Hubs |
| Front Tire | Maxxis DHR2, 29" x 2.4", Exo, TR |
| Rear Tire | Maxxis Rekon, 29" x 2.4", Exo, TR |
| Front Travel | 140mm |
| Rear Travel | 130mm |
| Brakes | Shimano XT 4P |
| Rotors (F/R) | Shimano RT-86 IceTech 180F/180R |
| Crankset | Shimano XT 24mm spindle S-M: 165mm, XM-XL: 170mm |
| Bottom Bracket | Shimano XT |
| Rear Derailleur | Shimano XT Di2 SGS |
| Shifter | Shimano XT Di2 Shift Switch |
| Cassette | Shimano XT, 10-51T |
| Chain | Shimano XT |
| Headset | Cane Creek 50: ZS44/ZS56 |
| Grips | Lizard Skins Single Clamp |
| Handlebar | BLKBRD 35 Carbon Riser Bar 800mm |
| Stem | BLKBRD 35 Stem S-M: 35mm, XM-XL: 50mm |
| Seatpost | BikeYoke Revive Max S: 125mm, M: 160mm, XM: 185mm, L-XL: 213mm |
| Seatpost Diameter | 34.9mm |
| Saddle | WTB Silverado Fusion CrMo 142 |
| Bottle Mounts | 22oz bottle on size small, 26oz on all other sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Frame Storage Bag | Sustainably sourced internal frame bags produced in partnership with Cotopaxi |

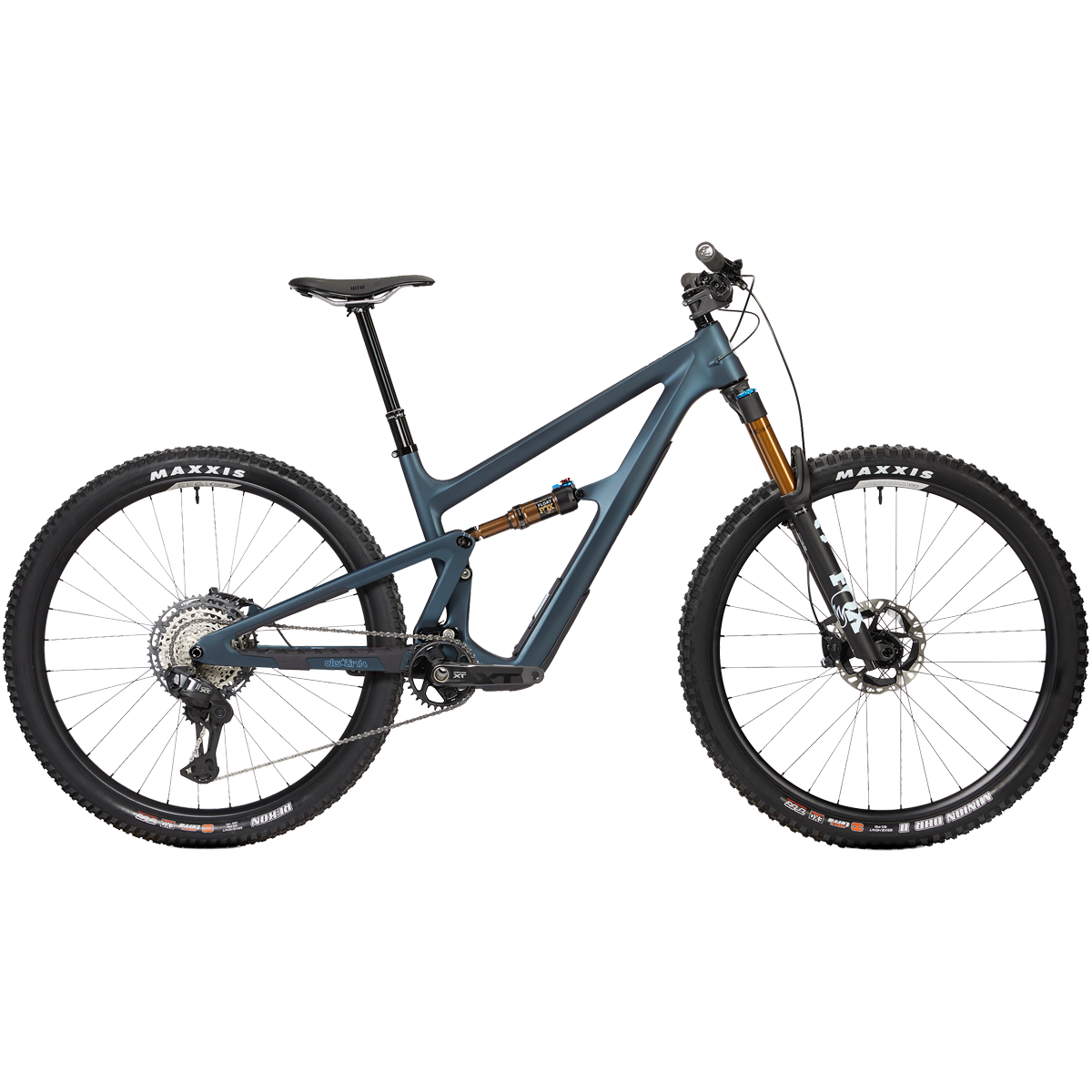

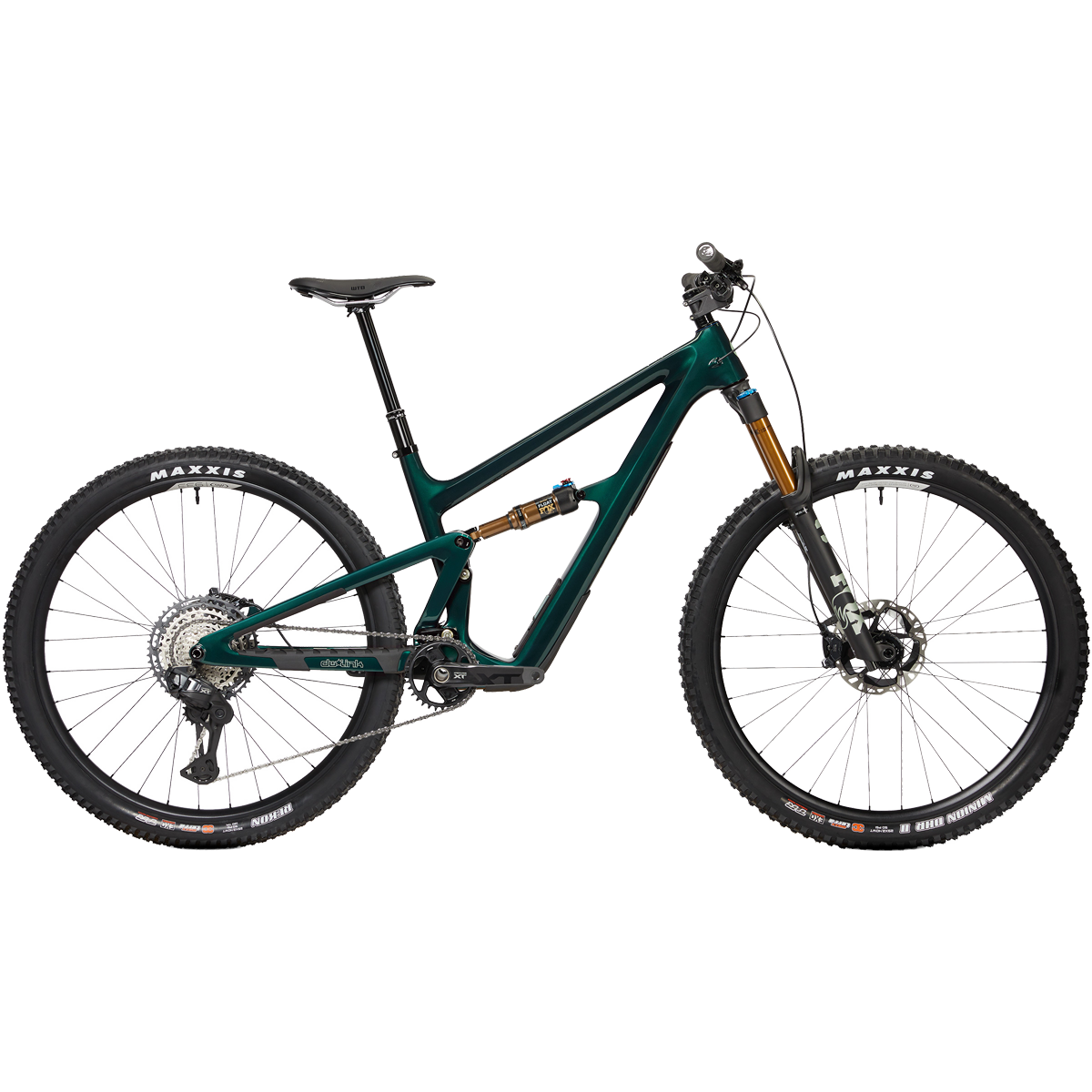

| Colors | Blue Hour or Green Flash |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
* Specs subject to change
