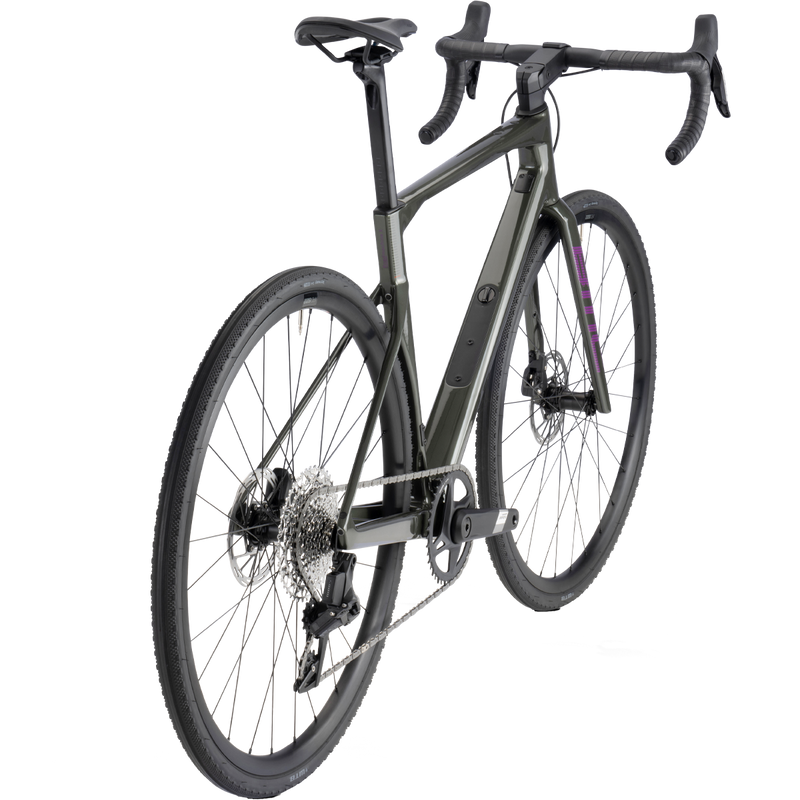

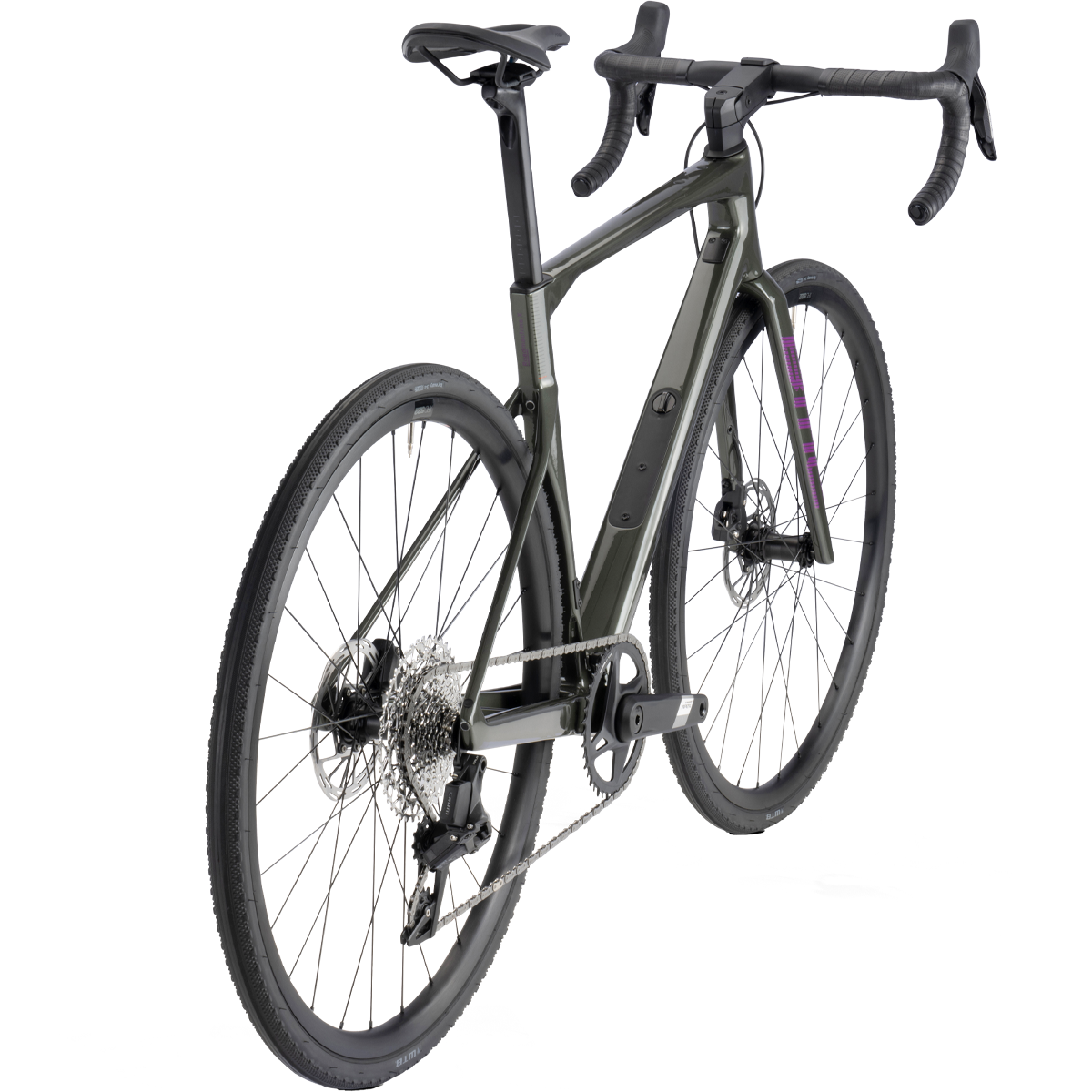

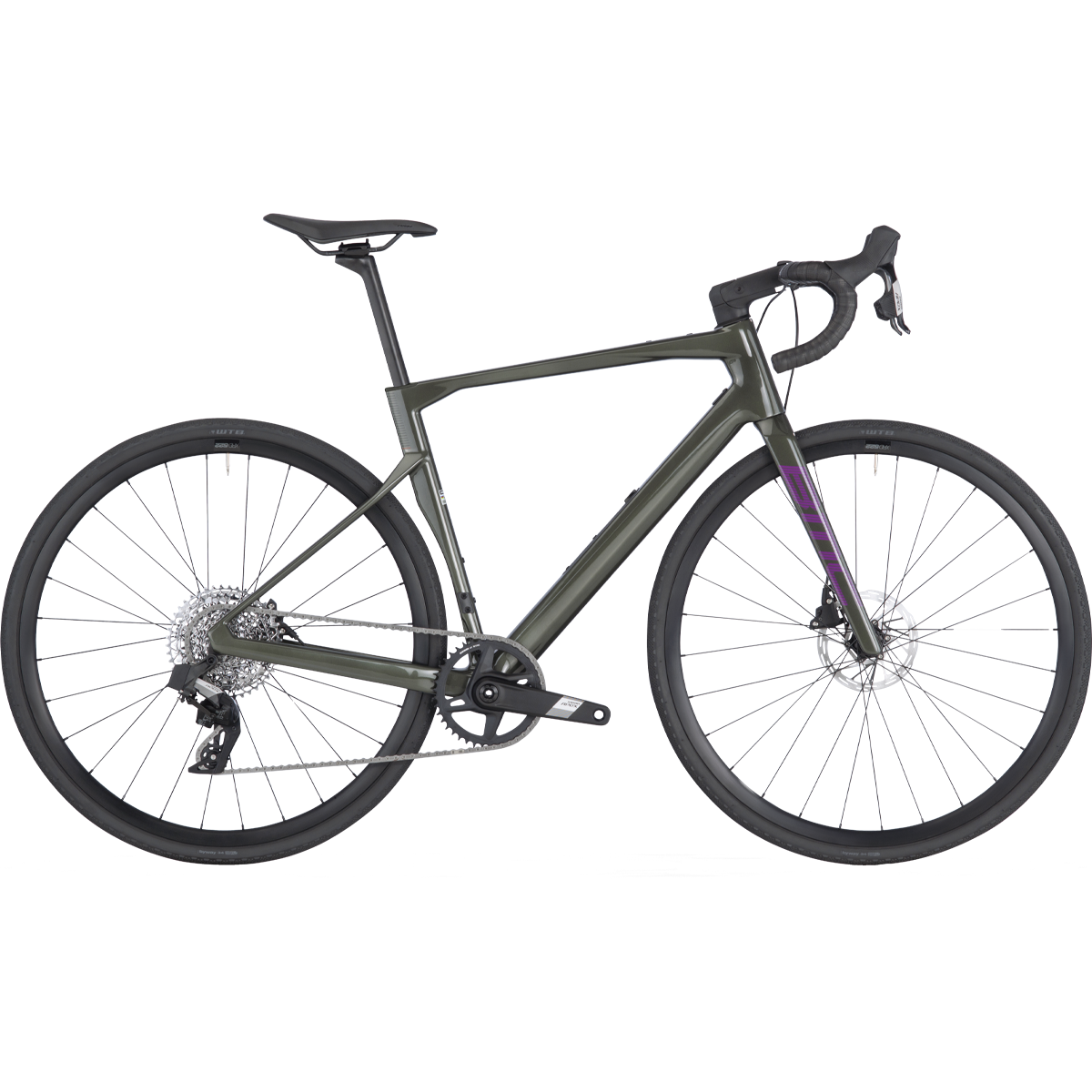

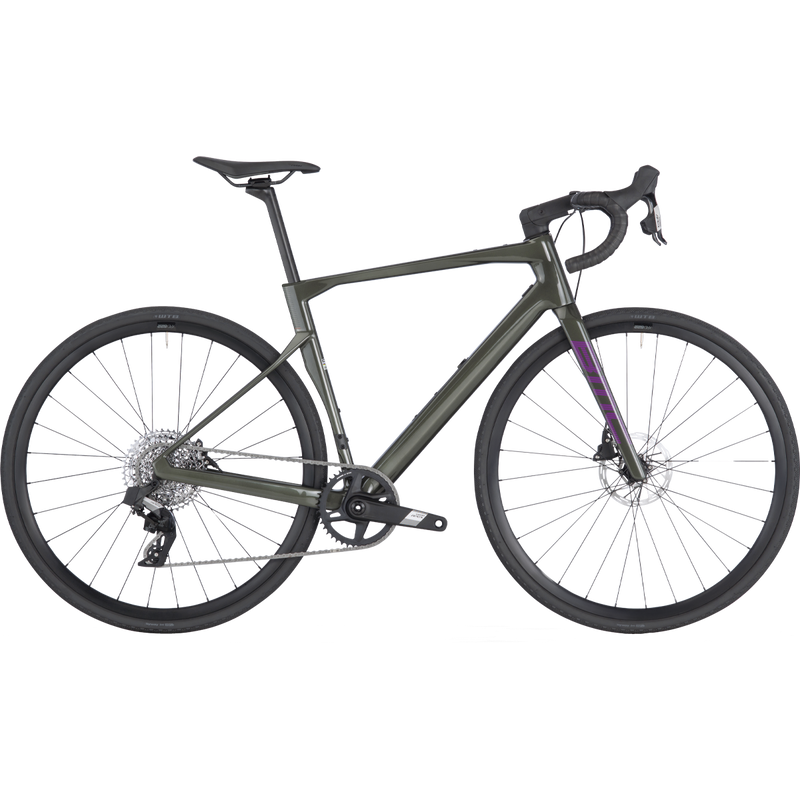

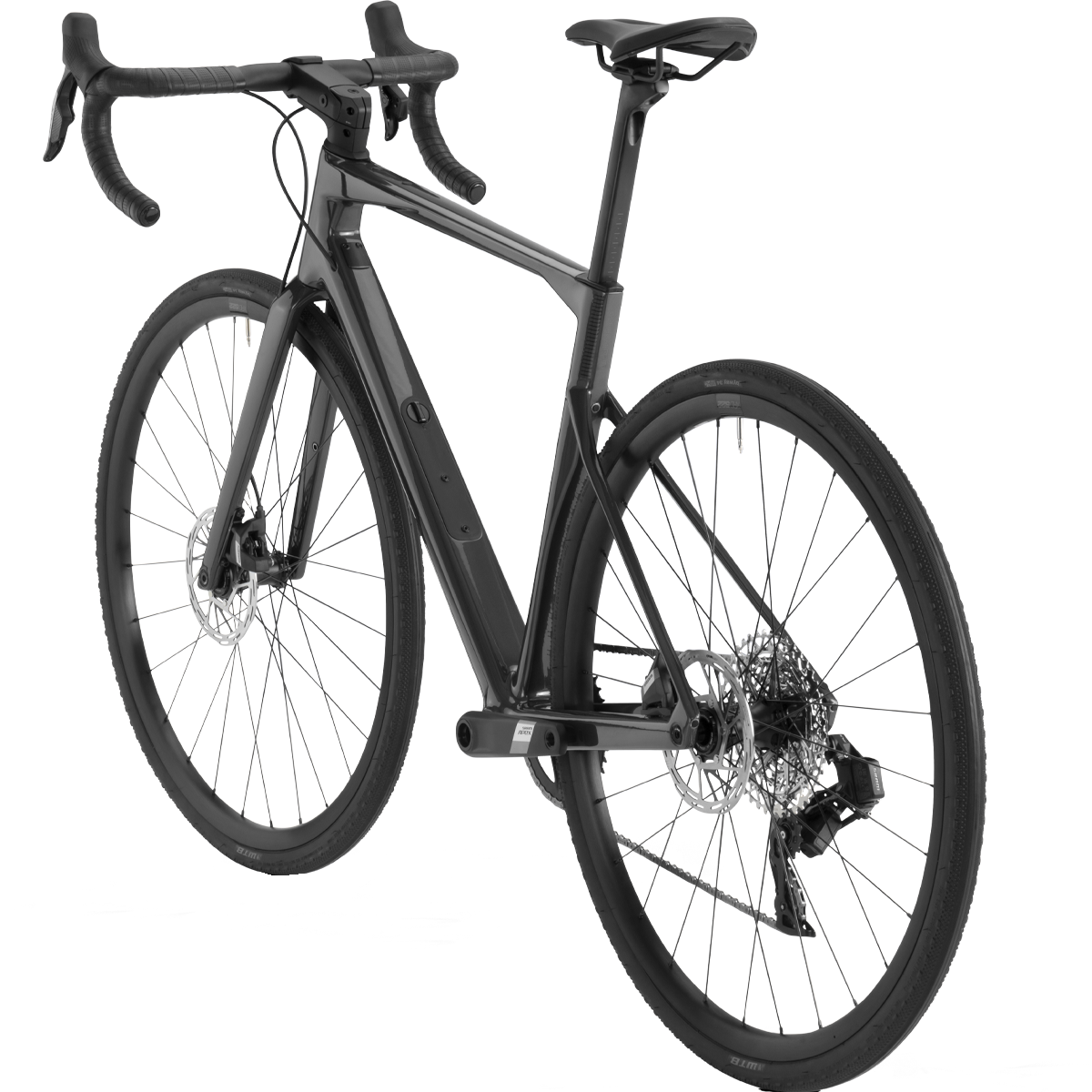

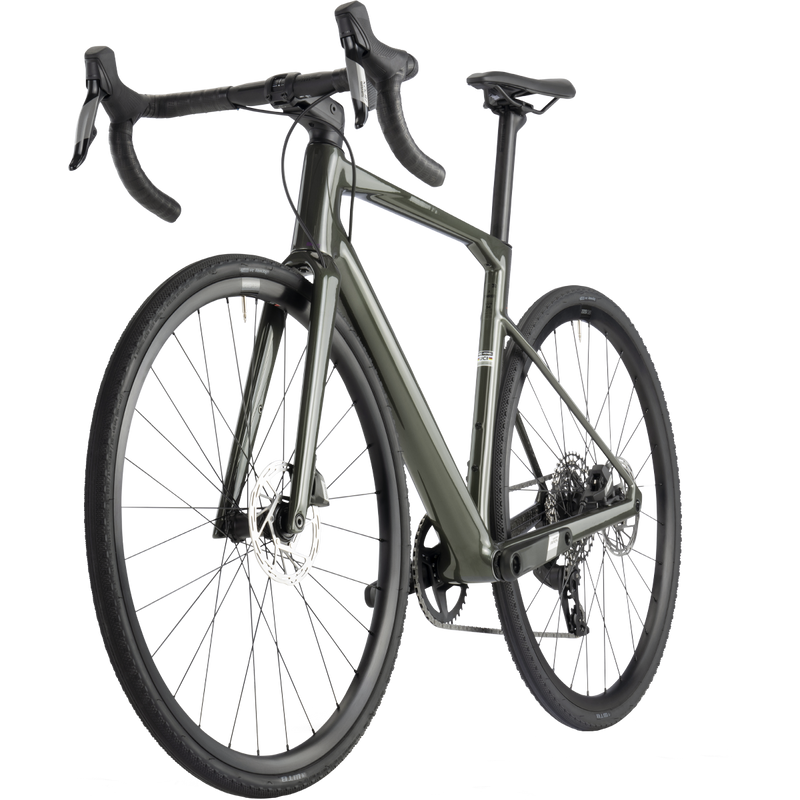

Roadmachine X THREE
More capable, more comfortable, more adventurous, and more fun, the Roadmachine X is your invitation to go further. The complete build features a 1x SRAM Apex XPLR eTap AXS wireless groupset, XRD-522 wheels and gravel-ready 34mm WTB tires paired with
More capable, more comfortable, more adventurous, and more fun, the Roadmachine X is your invitation to go further. The complete build features a 1x SRAM Apex XPLR eTap AXS wireless groupset, XRD-522 wheels and gravel-ready 34mm WTB tires paired with the frameset that has full internal cable routing, a Premium Carbon D-Shape seatpost and ICS MTT suspension stem. It’s the Roadmachine that you’ve always wanted and needed.
- SRAM Apex XPLR eTap AXS
- XRD-522 Wheelset

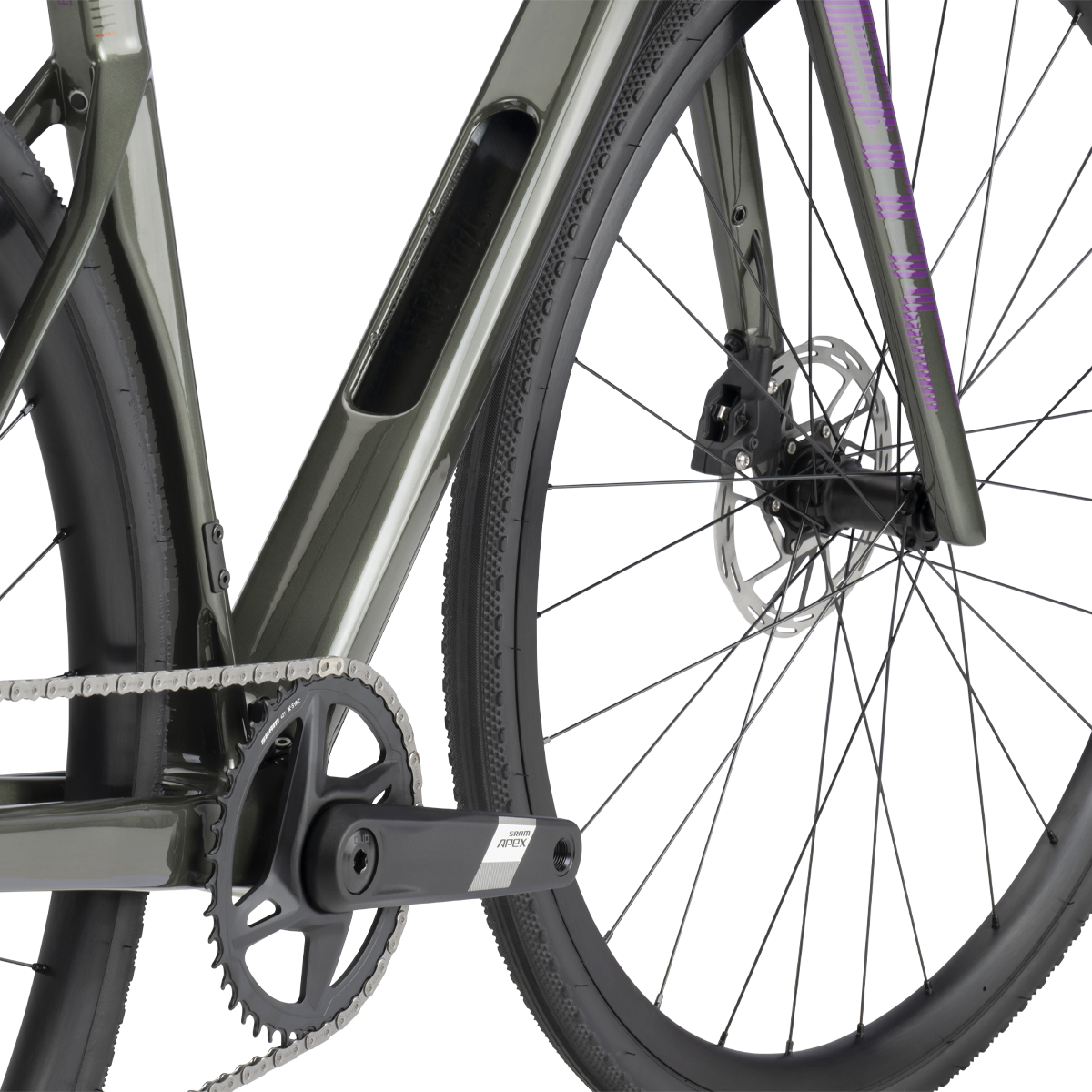

- Downtube Storage
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| FRAME | Roadmachine X Carbon with Tuned Compliance Concept Endurance, Fender Mounts, Stealth Dropout Design, Flat Mount Disc, 12x100mm Thru-Axle |

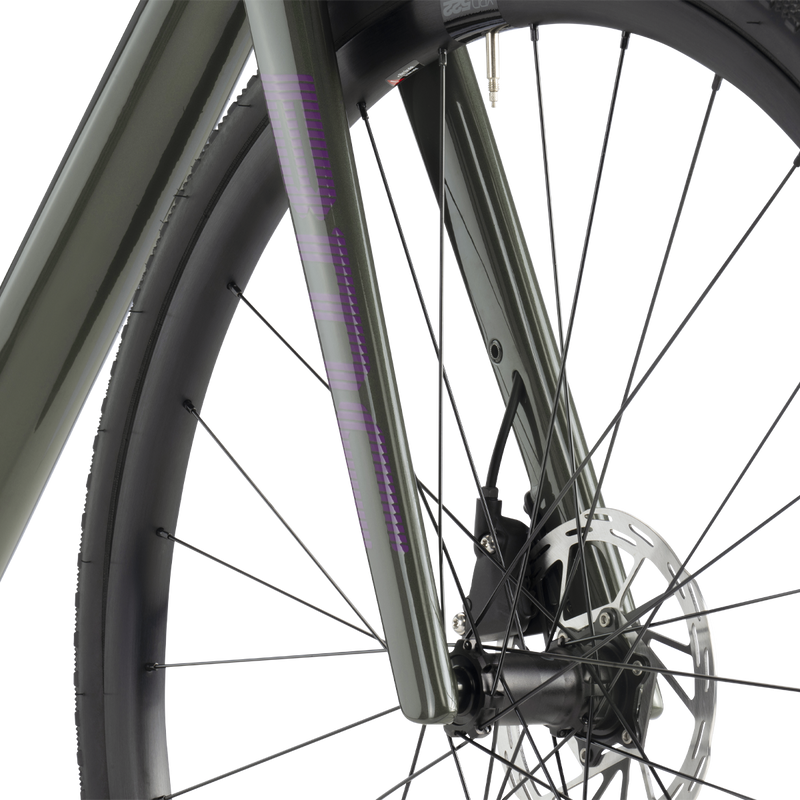

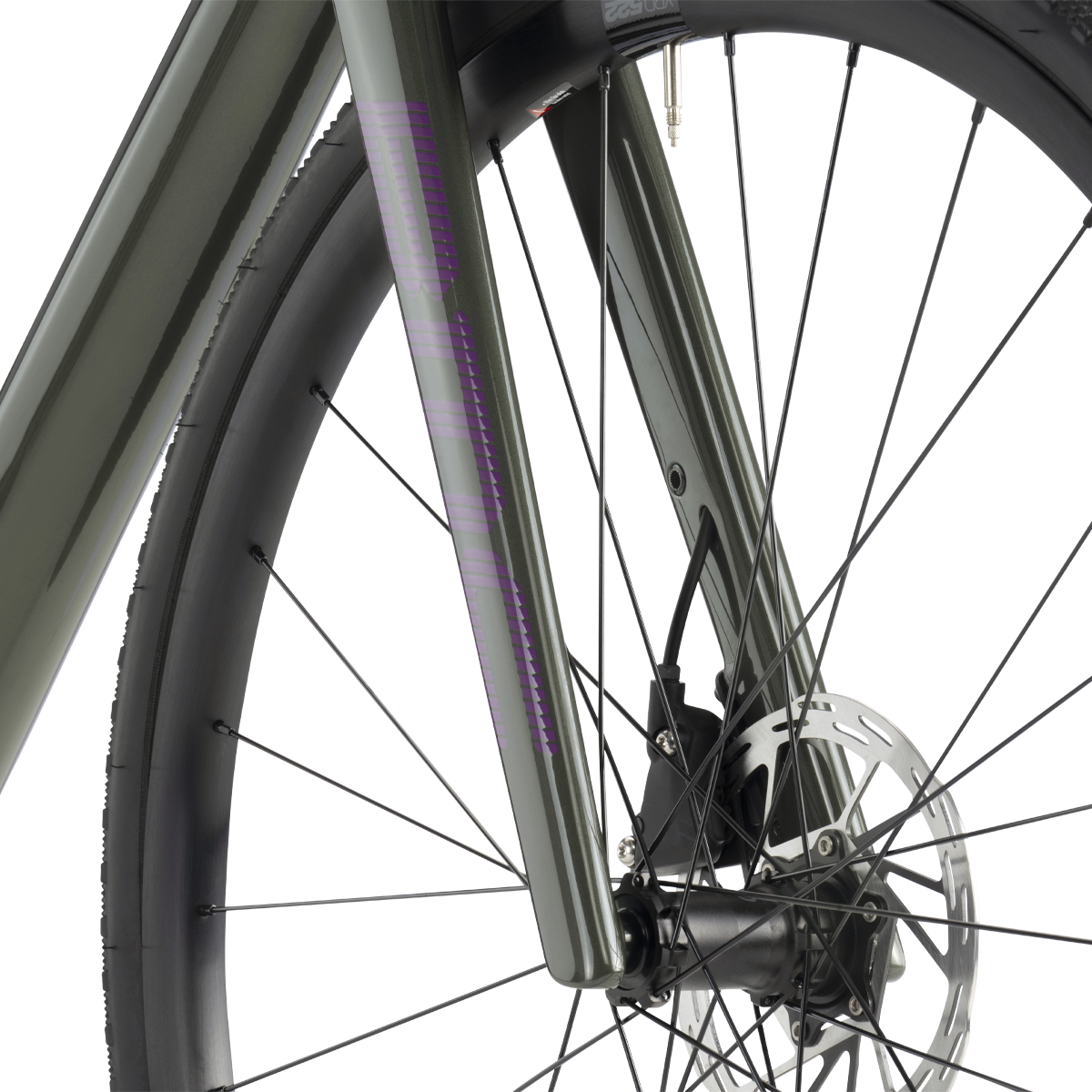

| FORK | Roadmachine X Carbon with Tuned Compliance Concept Endurance, Fender Mounts, Stealth Dropout Design, Flat Mount Disc, 12 x 100mm Thru-Axle |

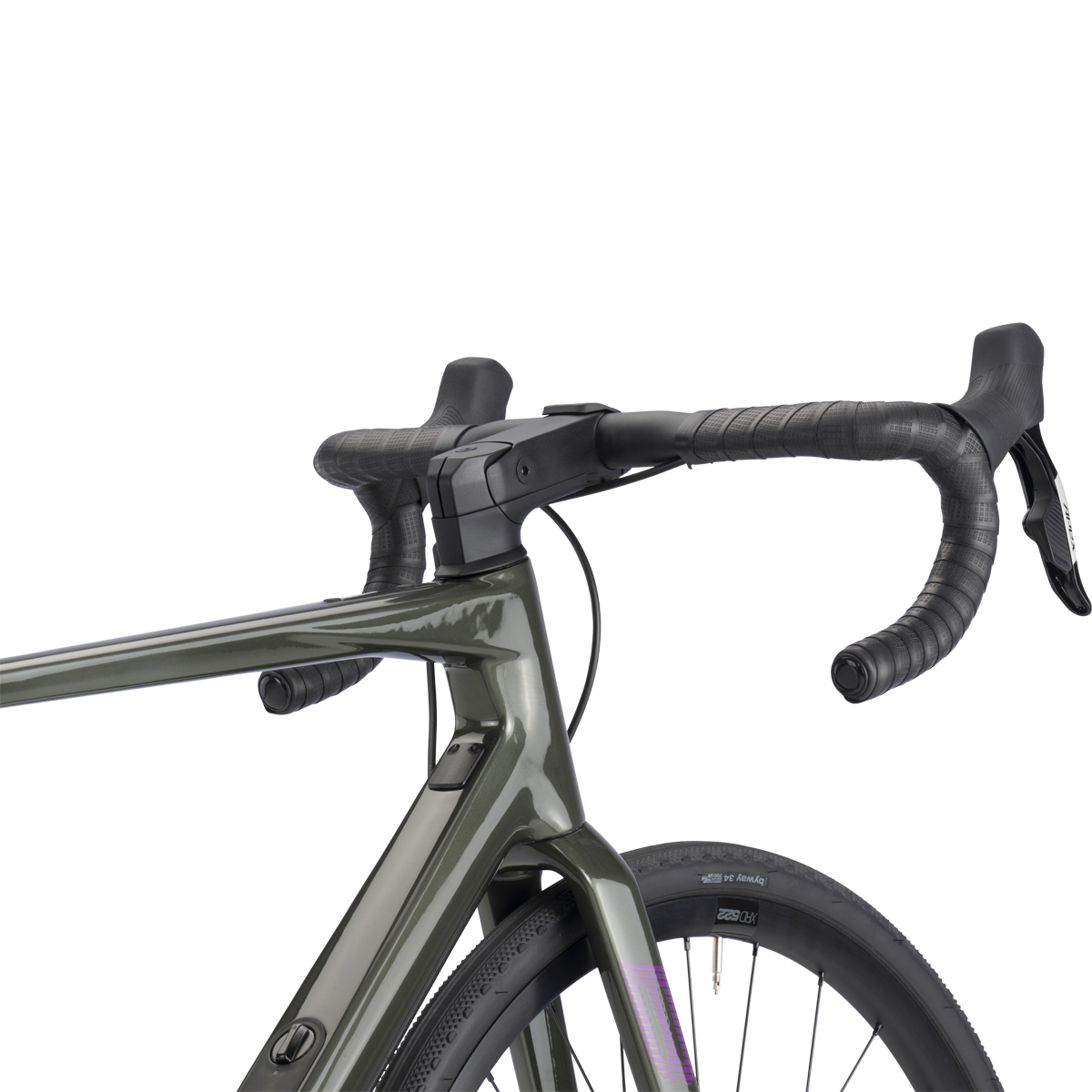

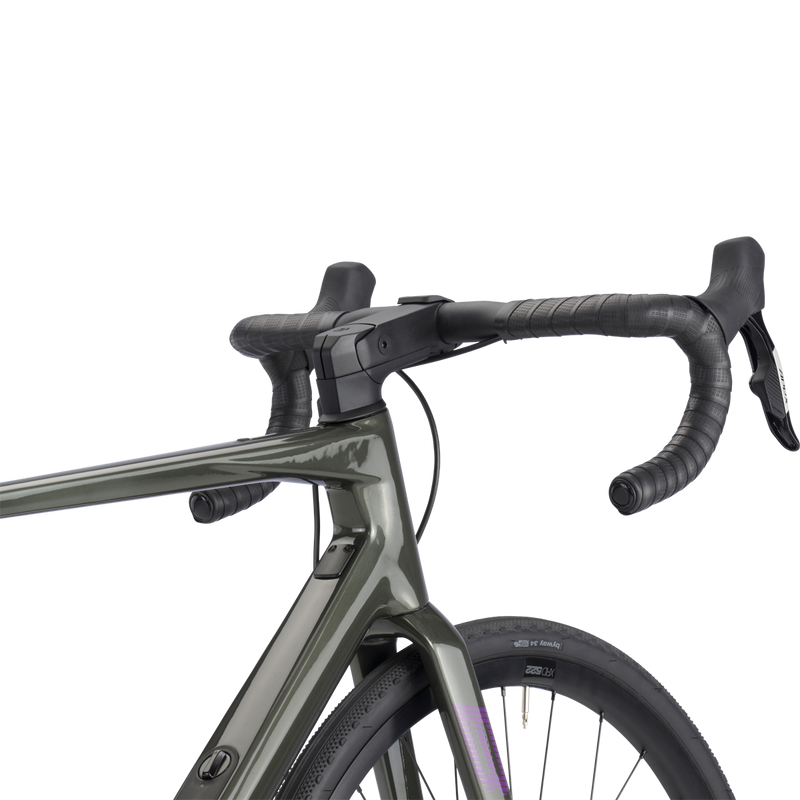

| STEM | ICS MTT x Redshift Suspension Stem, Integrated Cockpit System Technology |

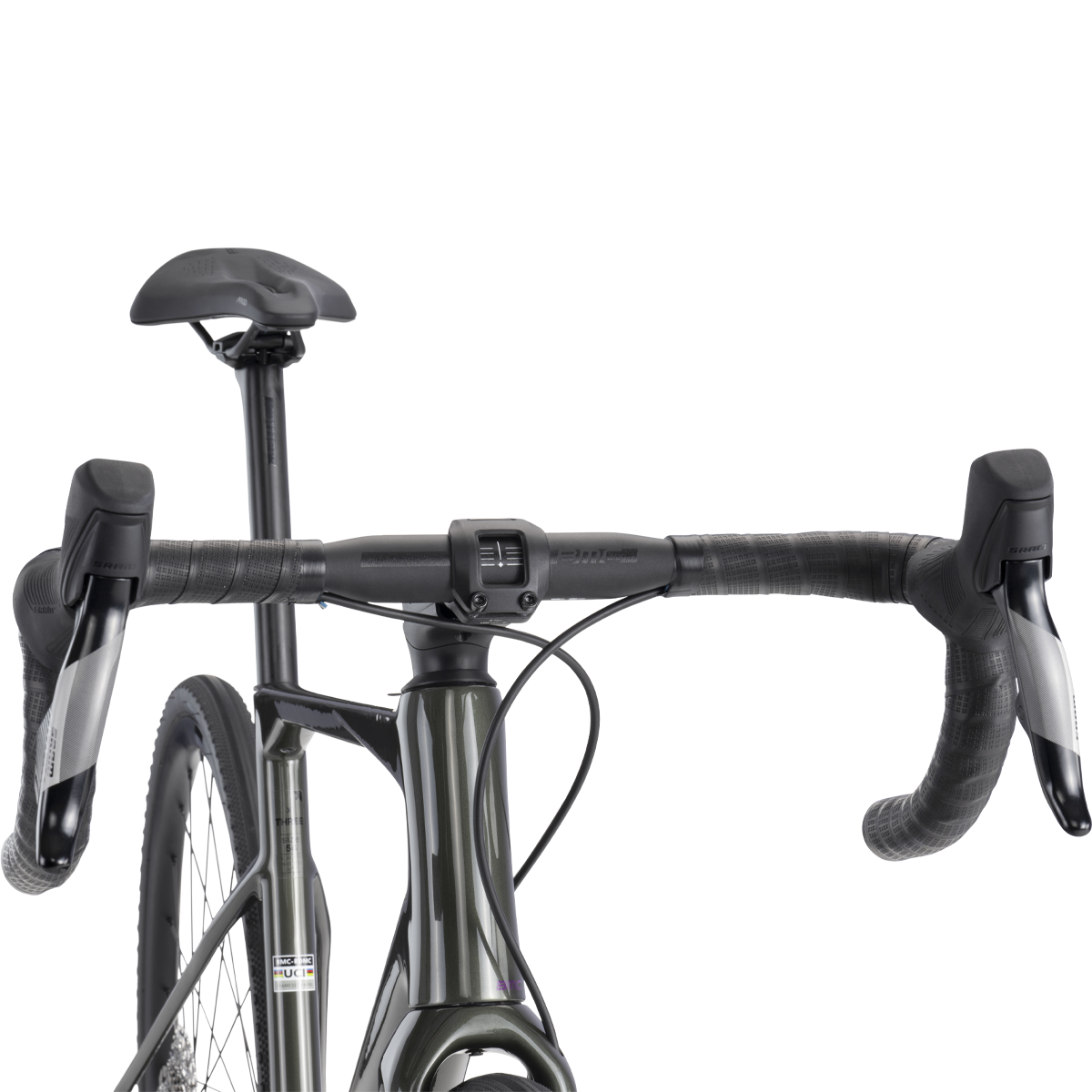

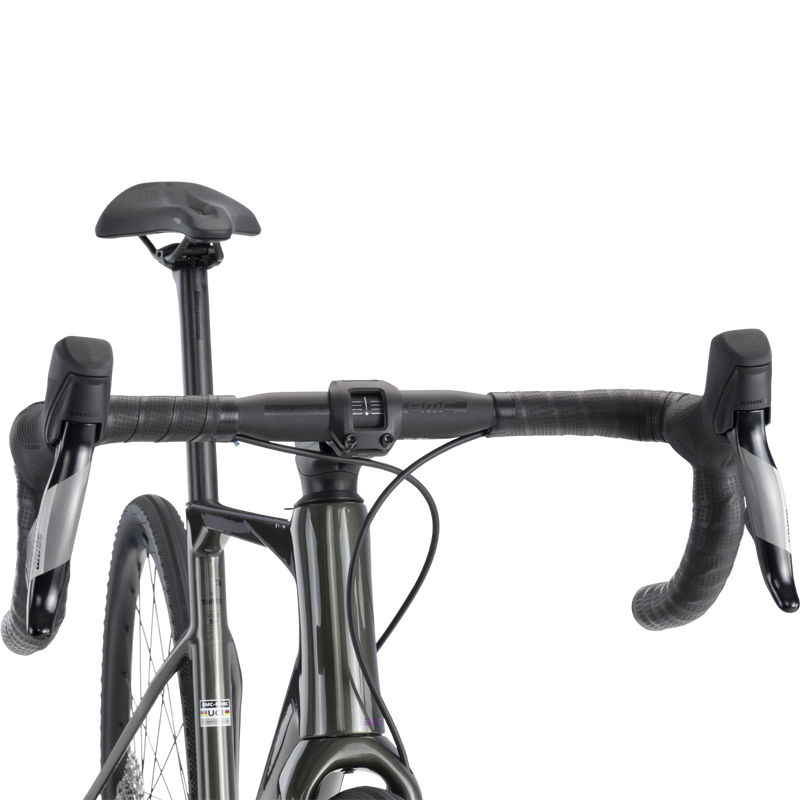

| HANDLEBAR | BMC RAB 02, Ergo Top Shape, Compact Bend |

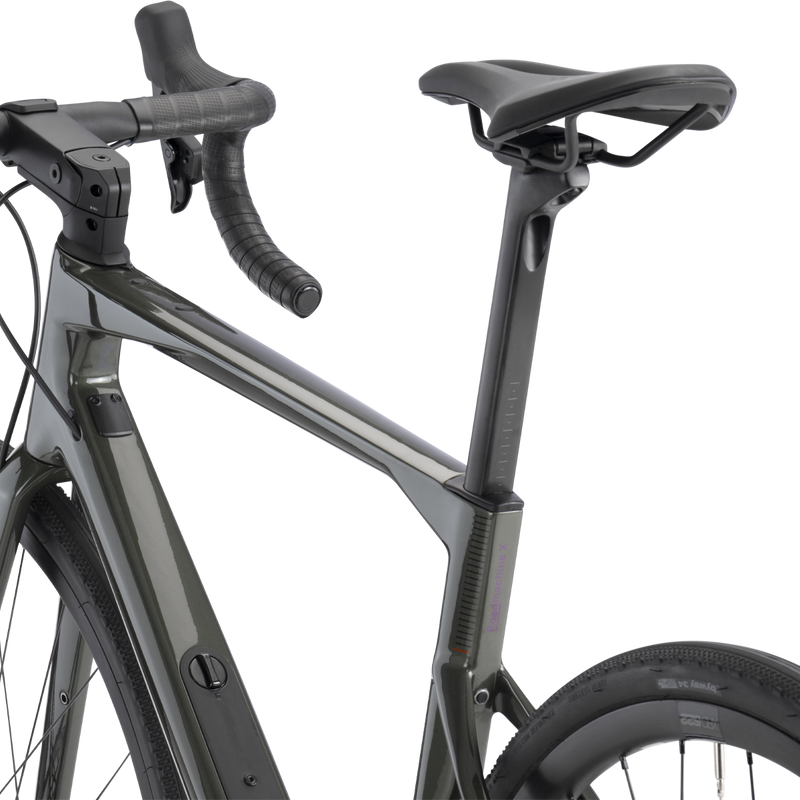

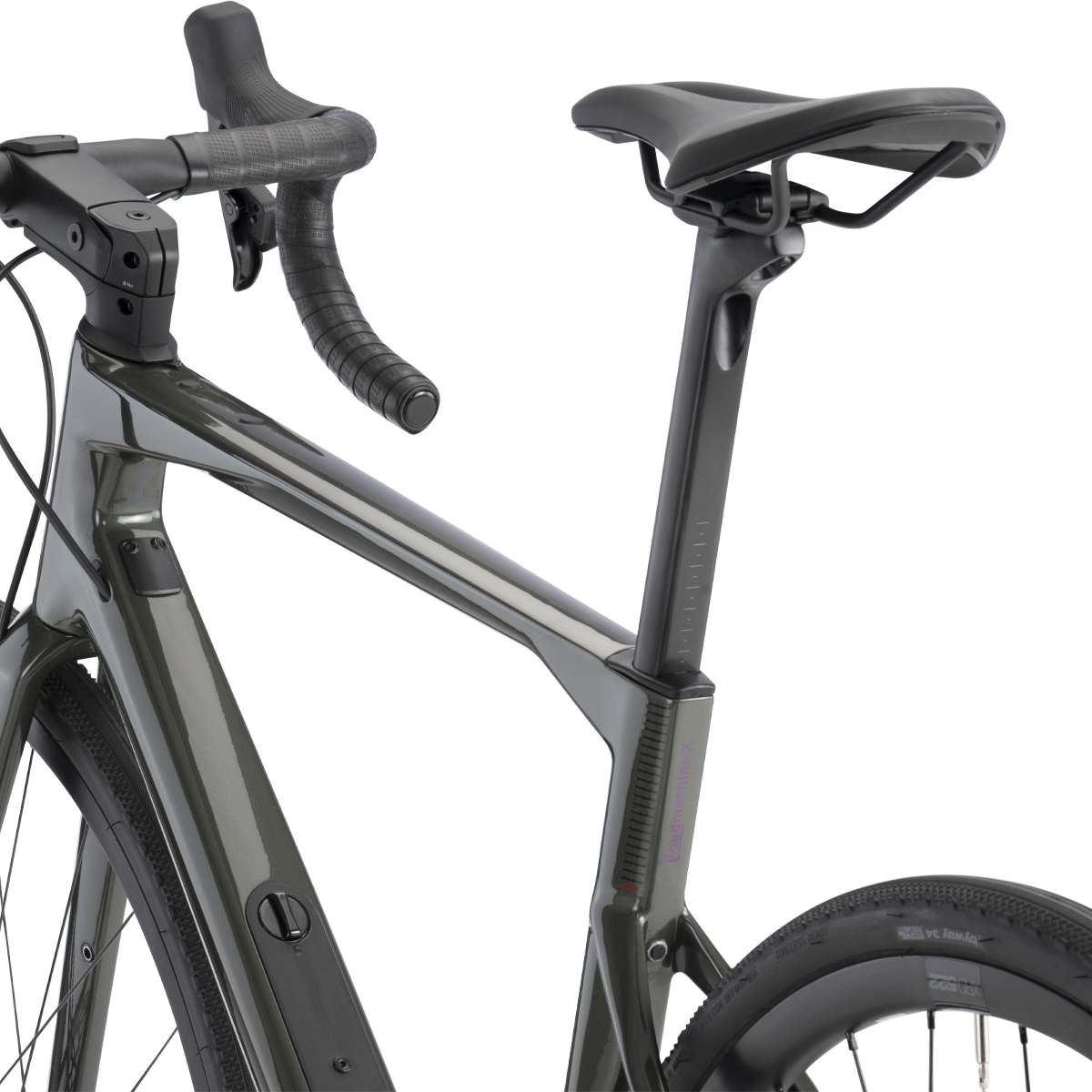

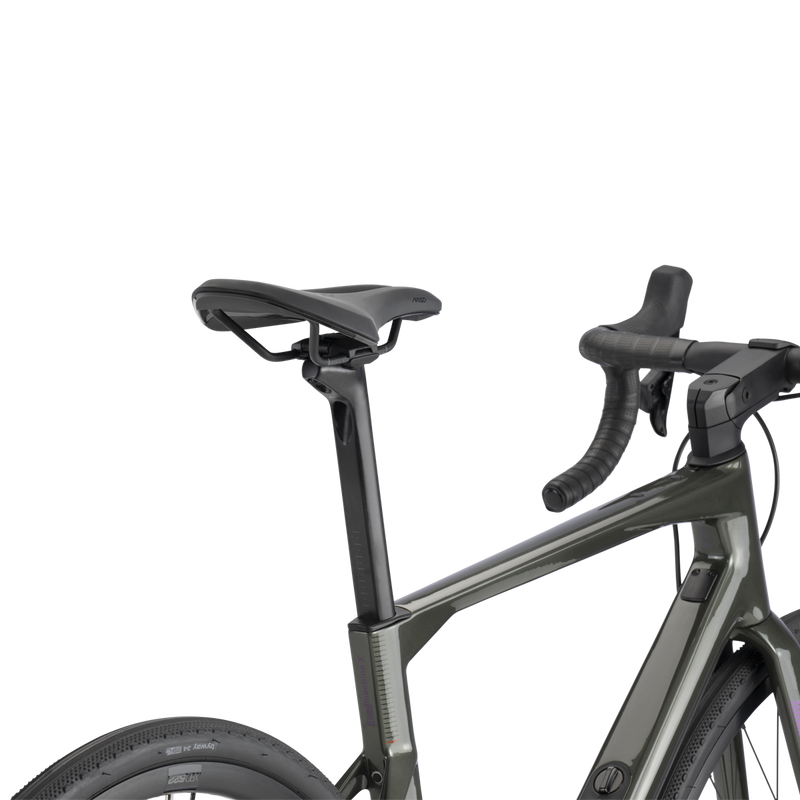

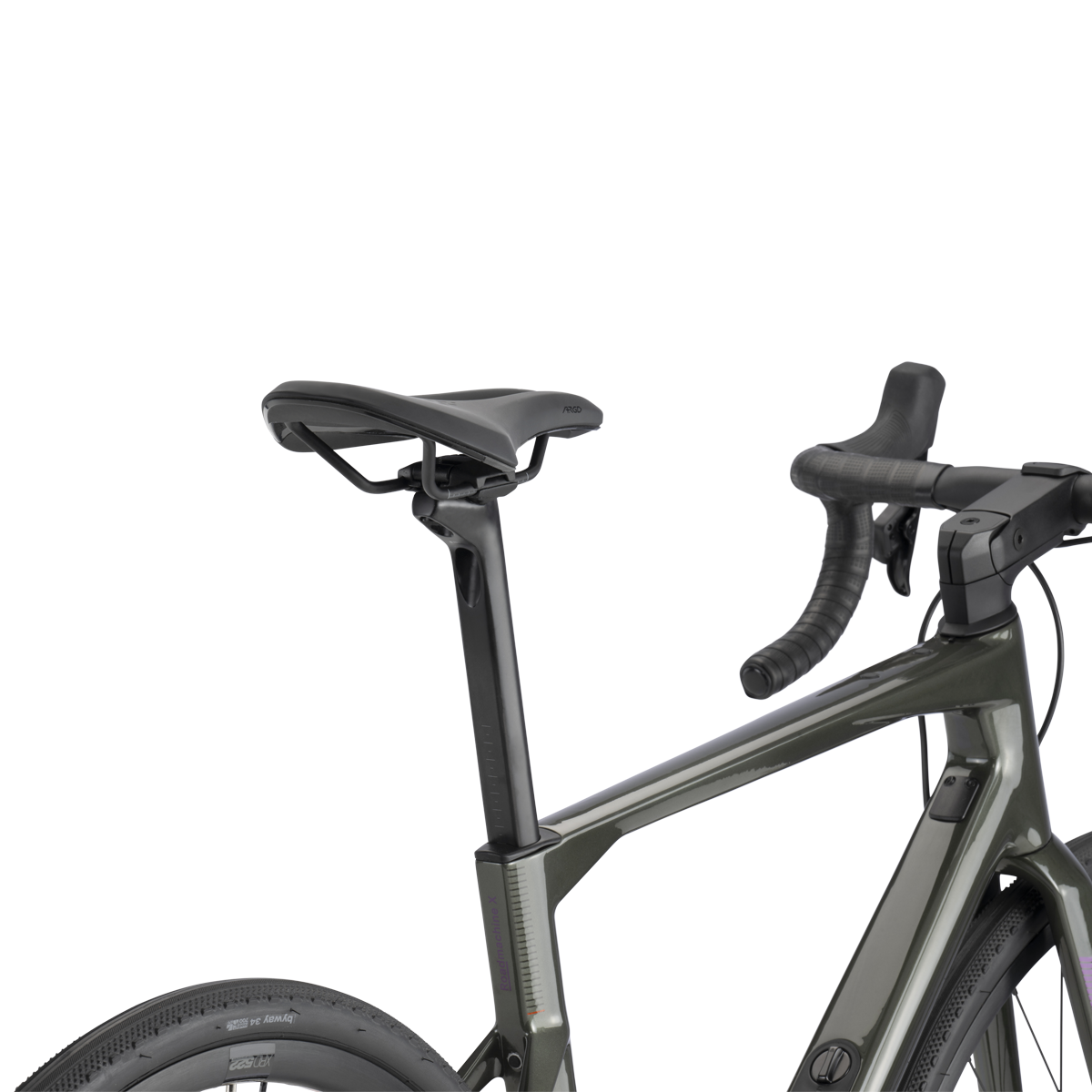

| SEATPOST | Roadmachine 01 X Premium Carbon D-Shaped Seatpost, 15mm Offset, D-Fender Compatible |
| SADDLE | Fizik Terra Argo X5, 150mm |

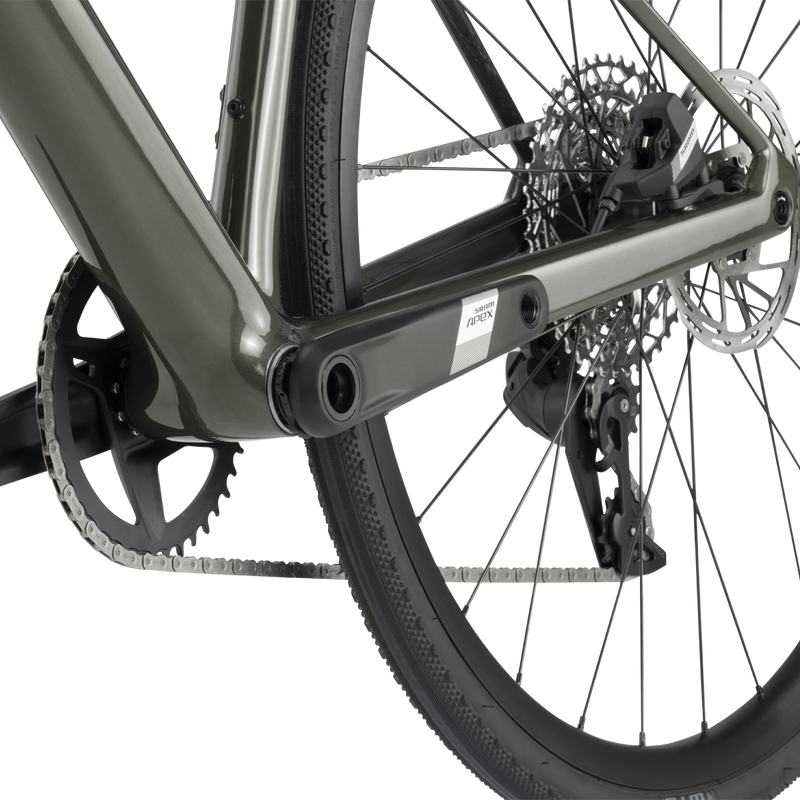

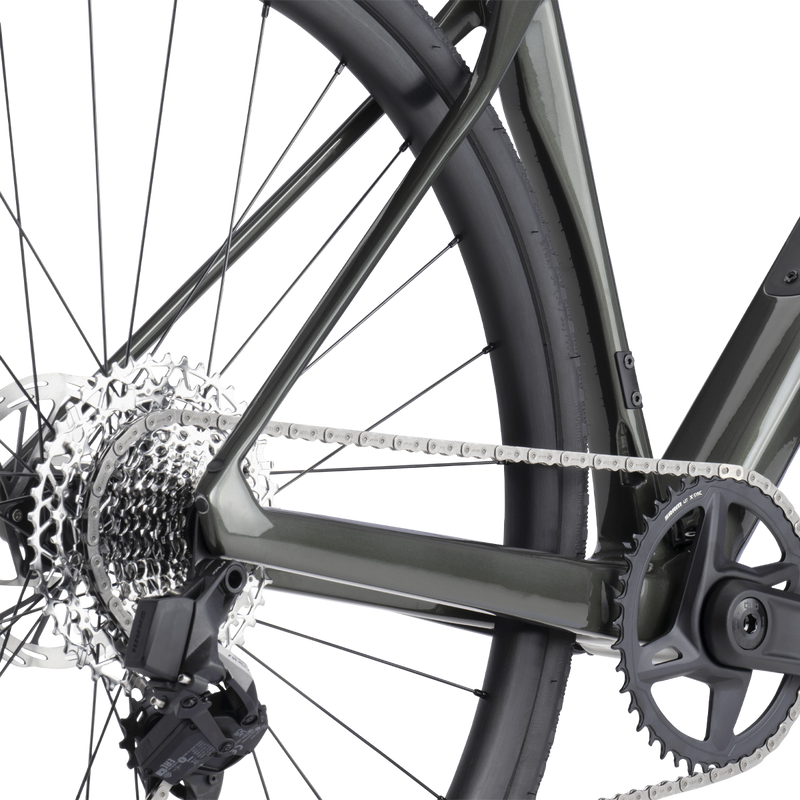

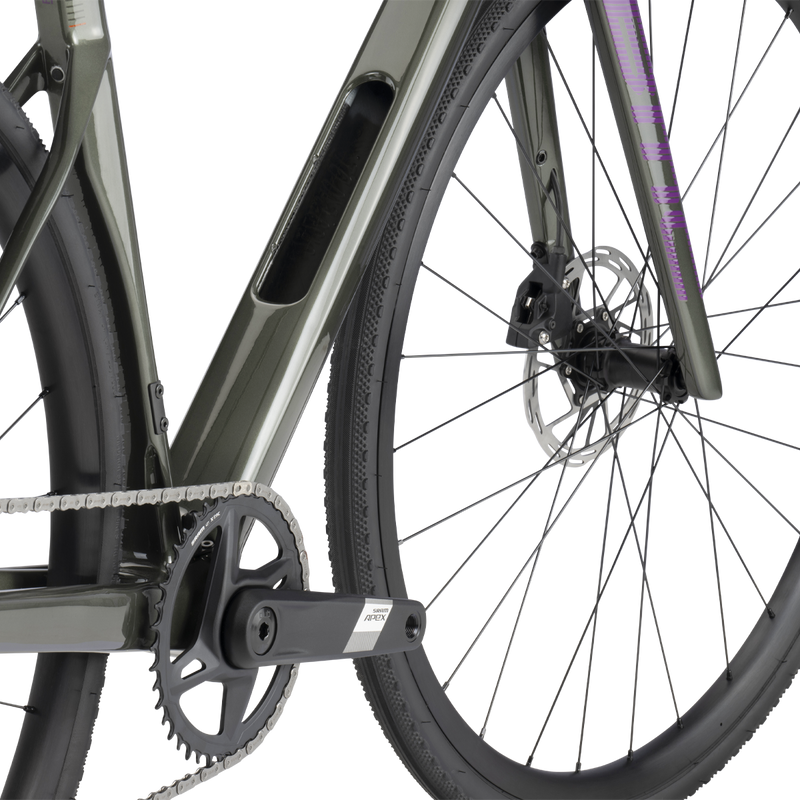

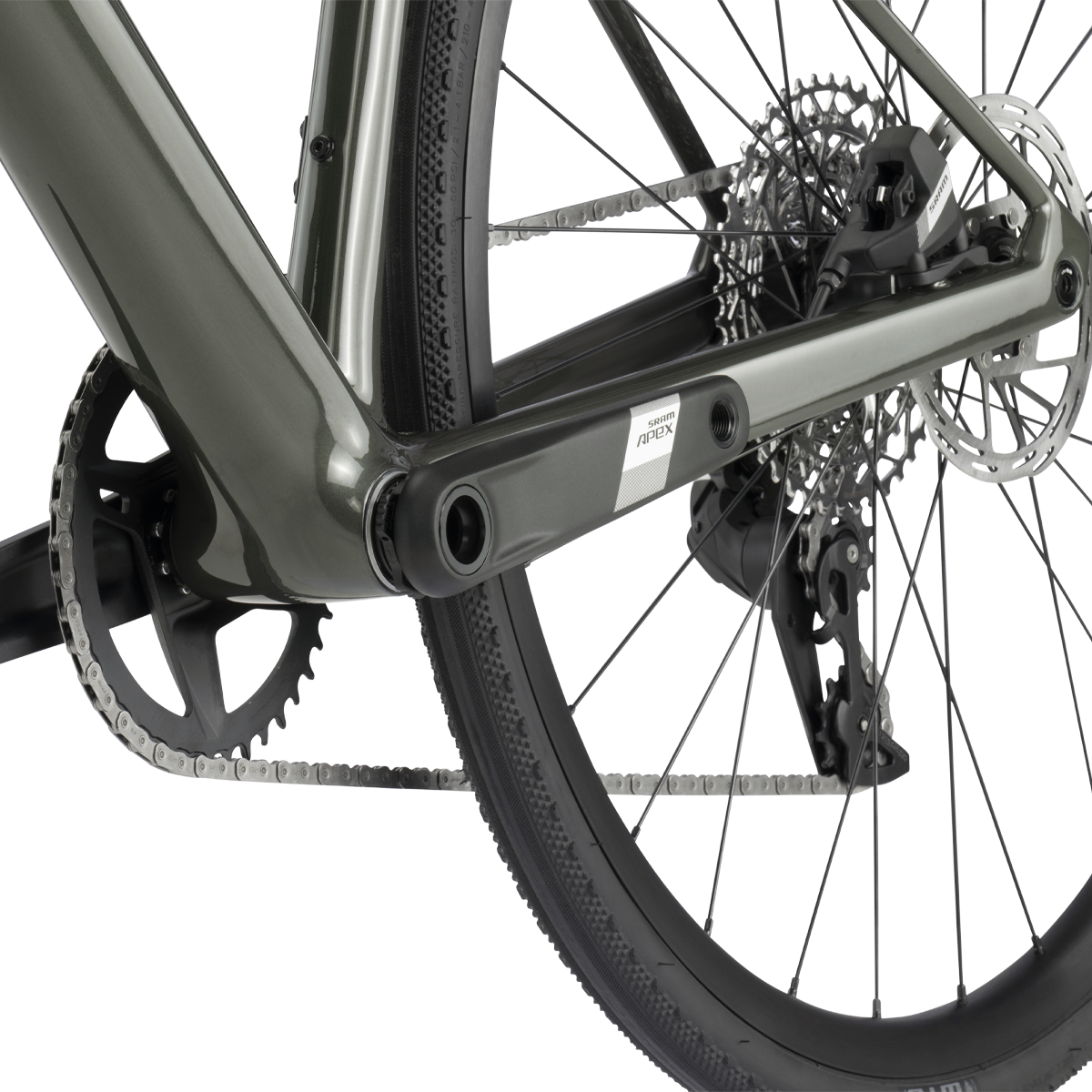

| CRANKSET | SRAM Apex 1 DUB WIDE |
| CHAINRINGS | 42T |

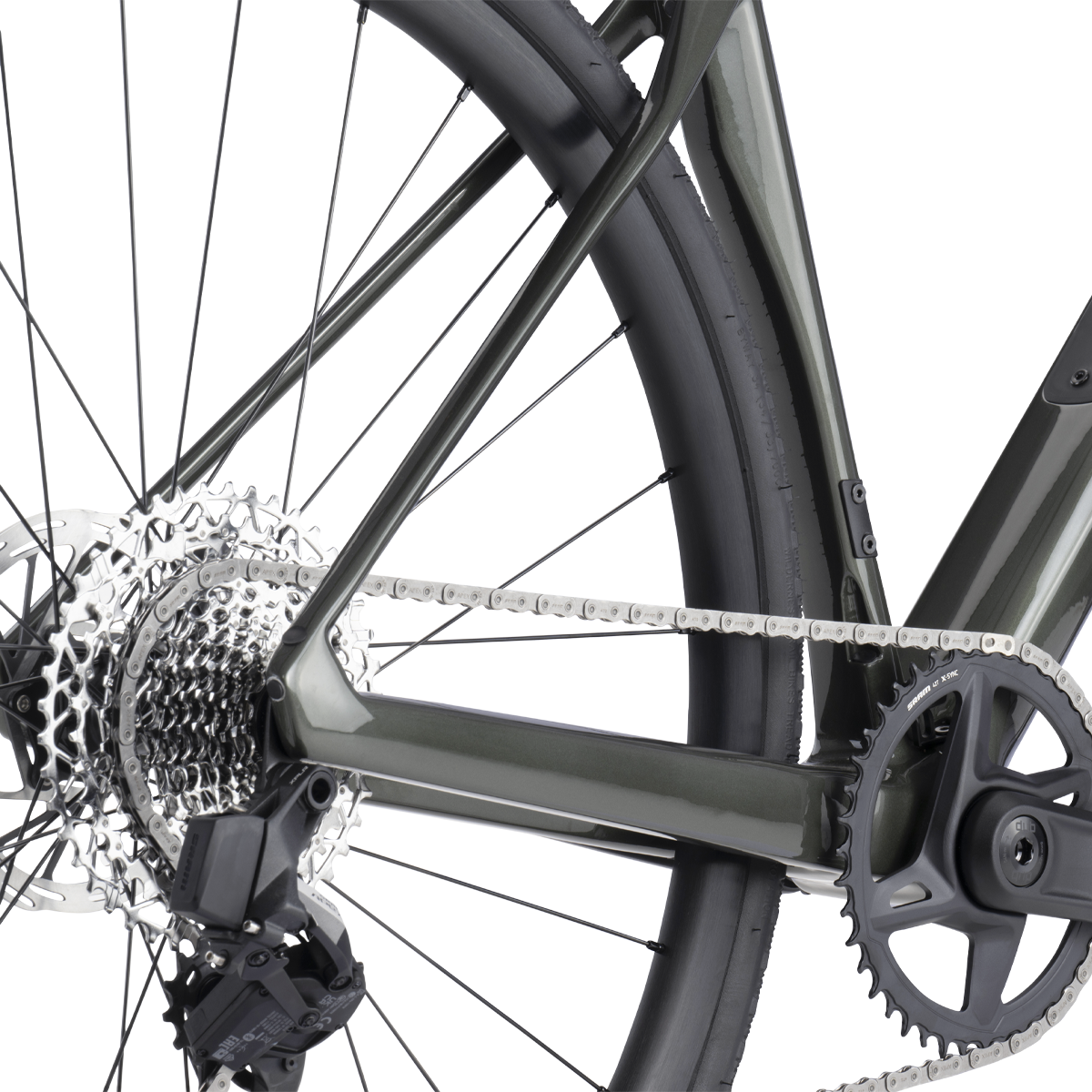

| CASSETTE | SRAM Apex AXS XPLR (XG-1231) |
| CASSETTE SIZE | 11-44T |

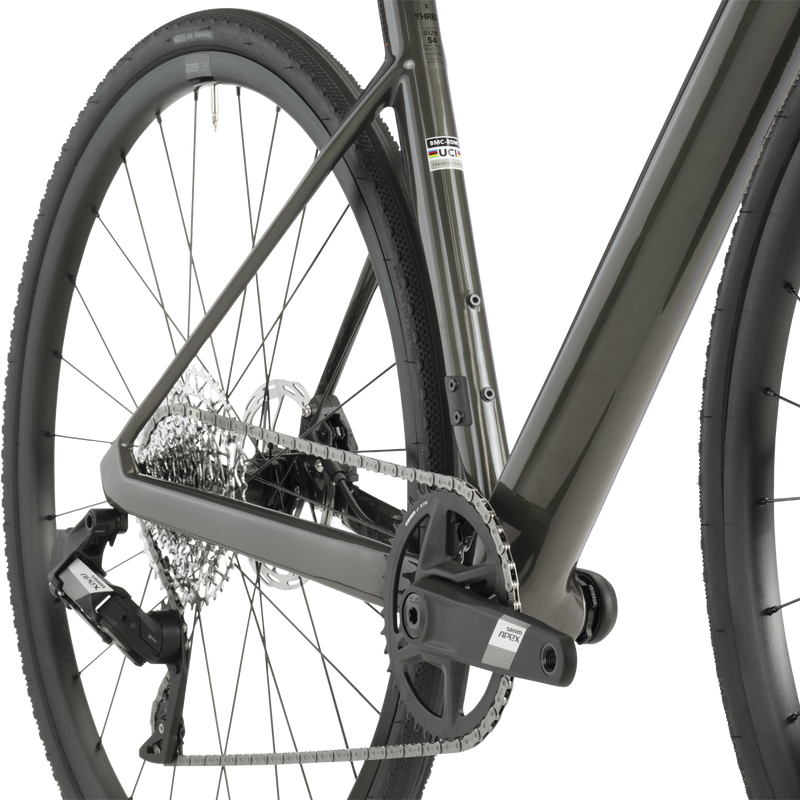

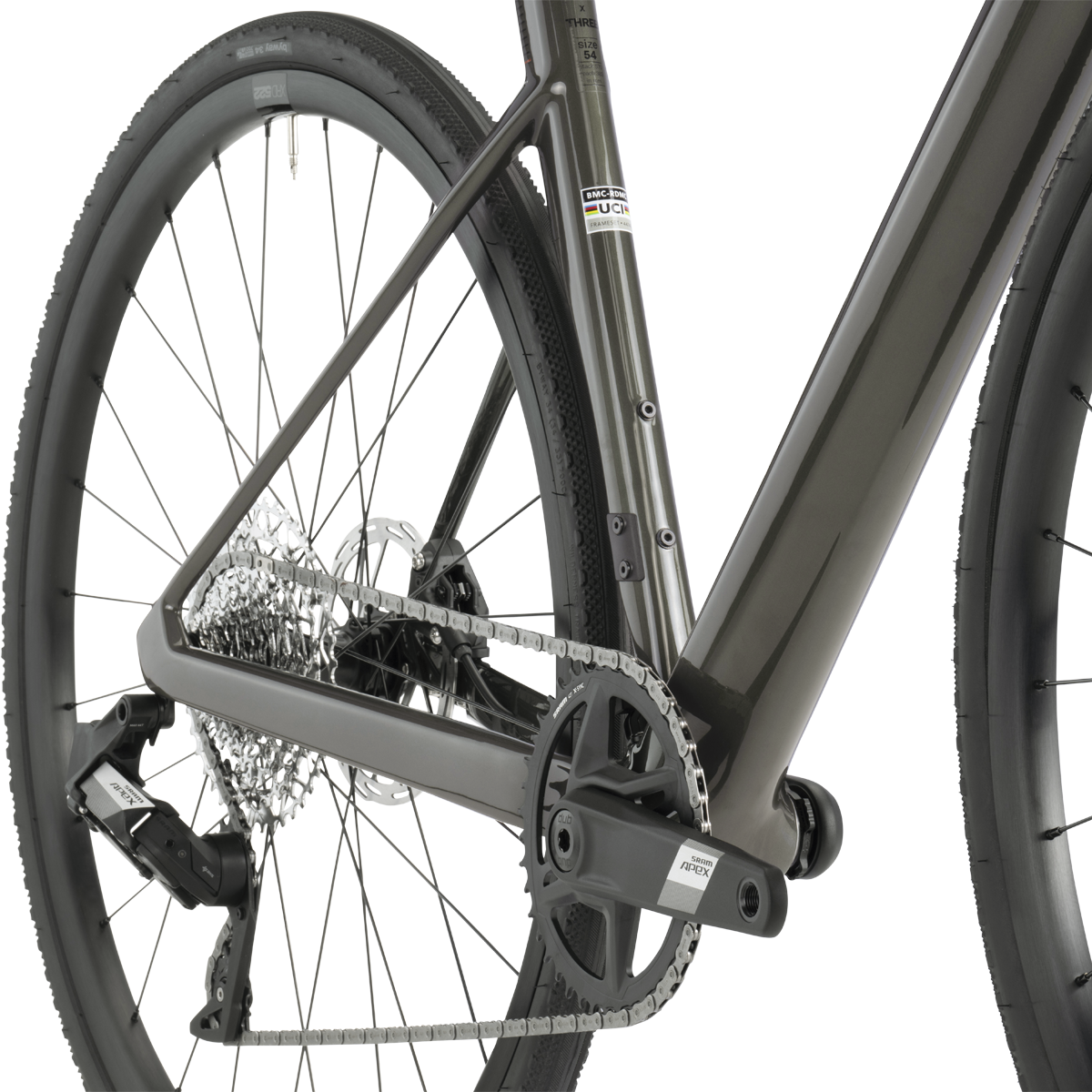

| CHAIN | SRAM Apex |

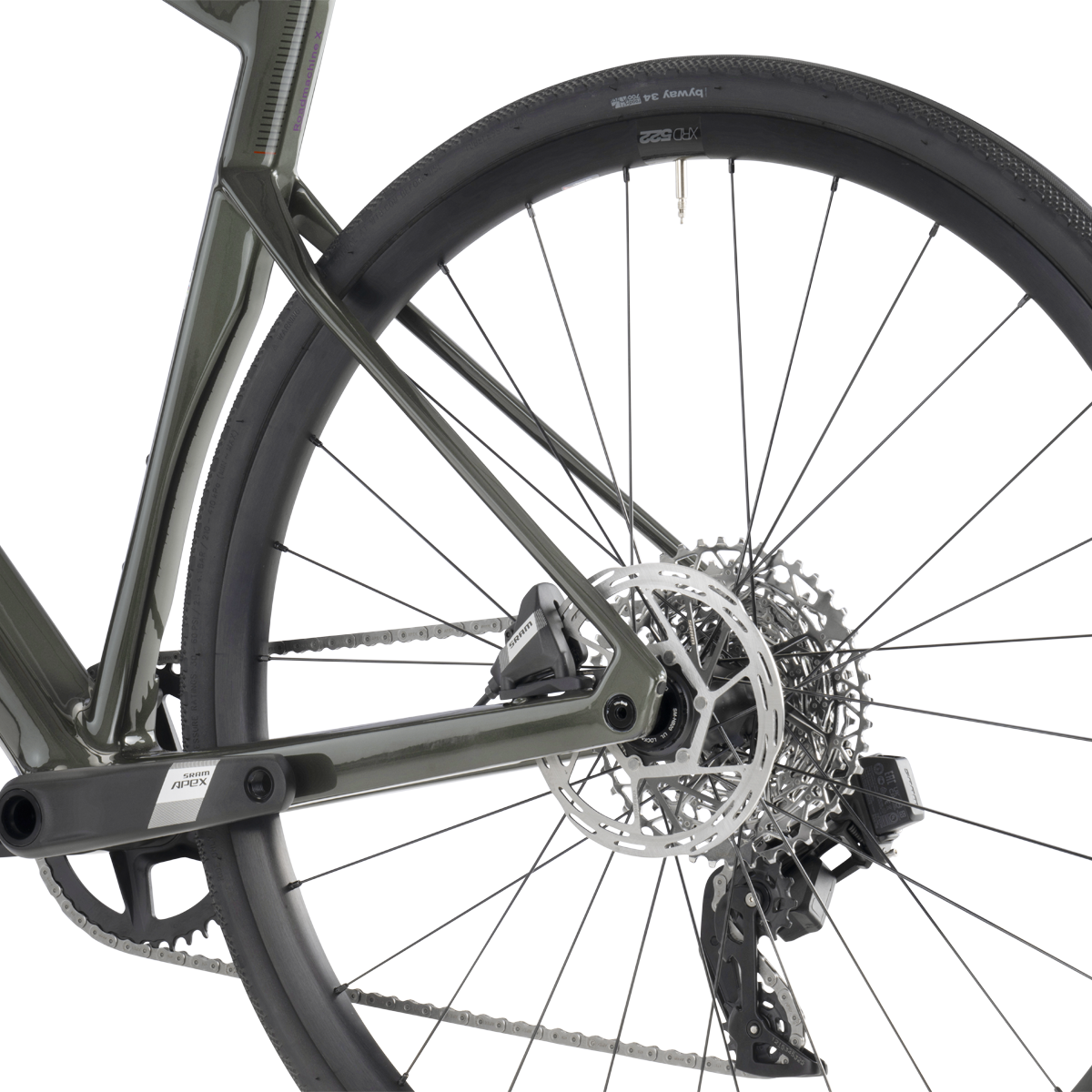

| REAR DERAILLEUR | SRAM Apex XPLR eTap AXS |
| SHIFTERS | SRAM Apex eTap AXS |
| GEARS | 1 x 12 |

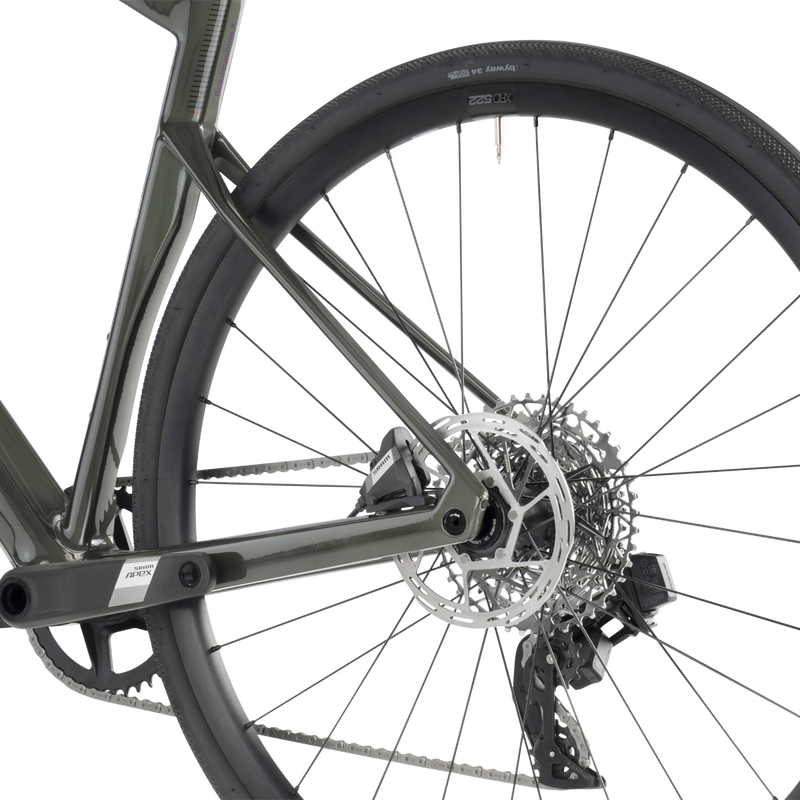

| BRAKE LEVERS / CALIPERS | SRAM Apex eTap AXS |
| ROTORS | SRAM Paceline |
| ROTOR SIZE (F/R) | 160 / 160mm |
| RIMS | XRD-522, Tubeless Ready, 25 mm |
| HUBS (F/R) | XRD-522 |
| TIRES | WTB Byway, Distance+ Compound, TCS Light bead, Tubeless Ready, 34mm |
| TUBELESS INFORMATION | Tubeless Ready Rims, Tubetype Tires |
| TIRE CLEARANCE | 40mm |
| WEIGHT WITHOUT PEDALS | 8.9 kg |
| ASTM CLASSIFICATION | Level 2 |
| SYSTEM WEIGHT LIMIT | 110kg |
* Specs subject to change
