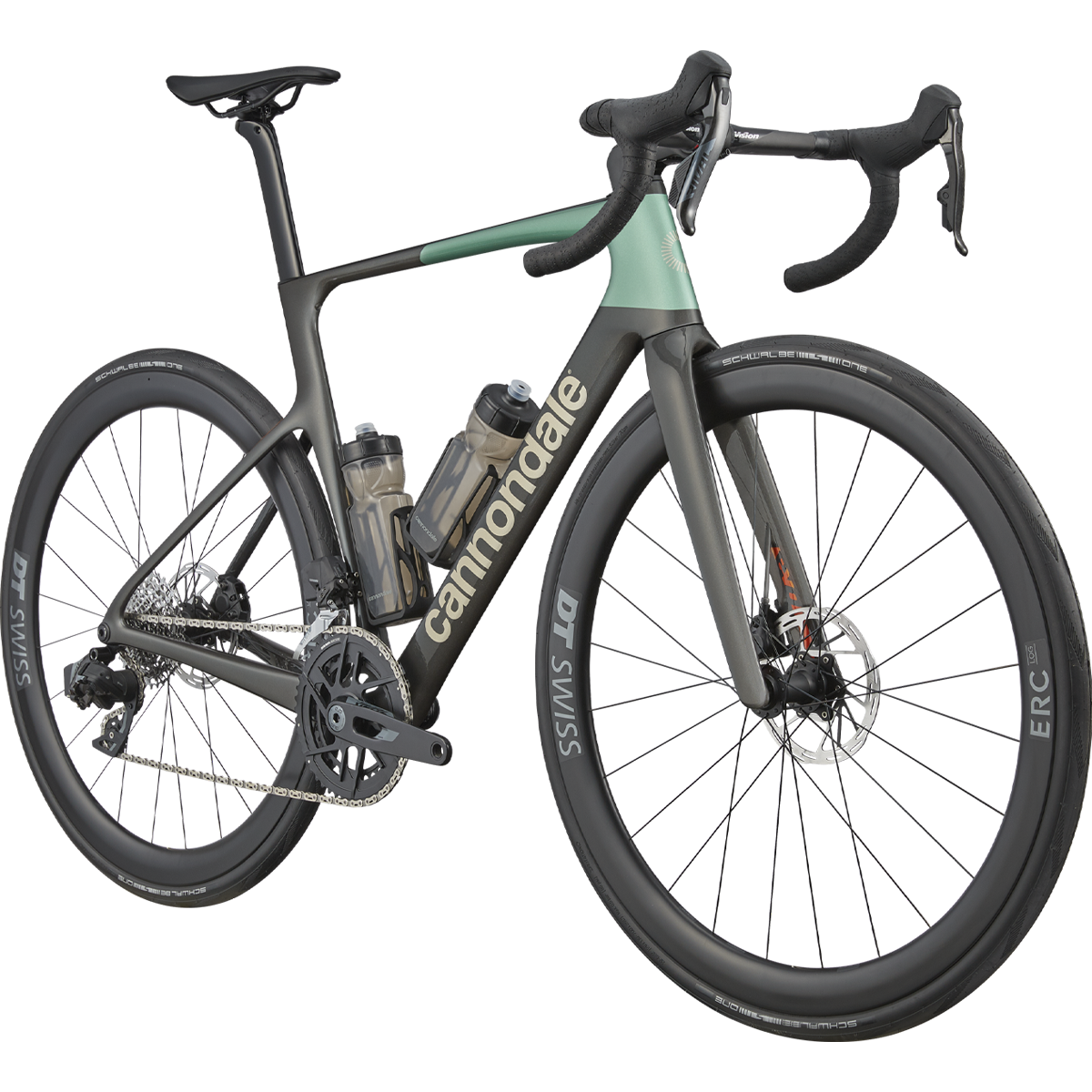

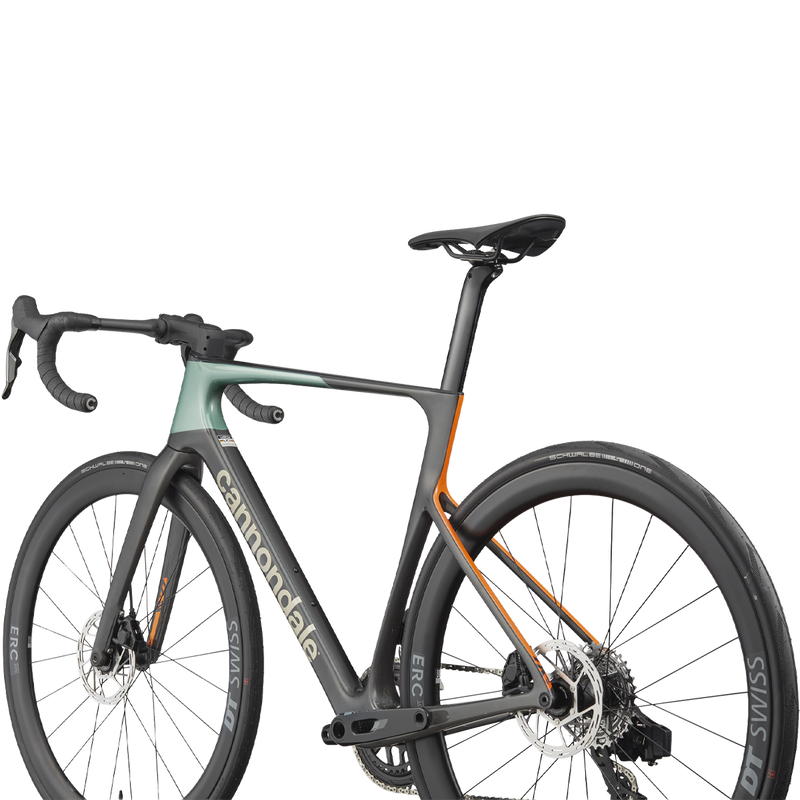

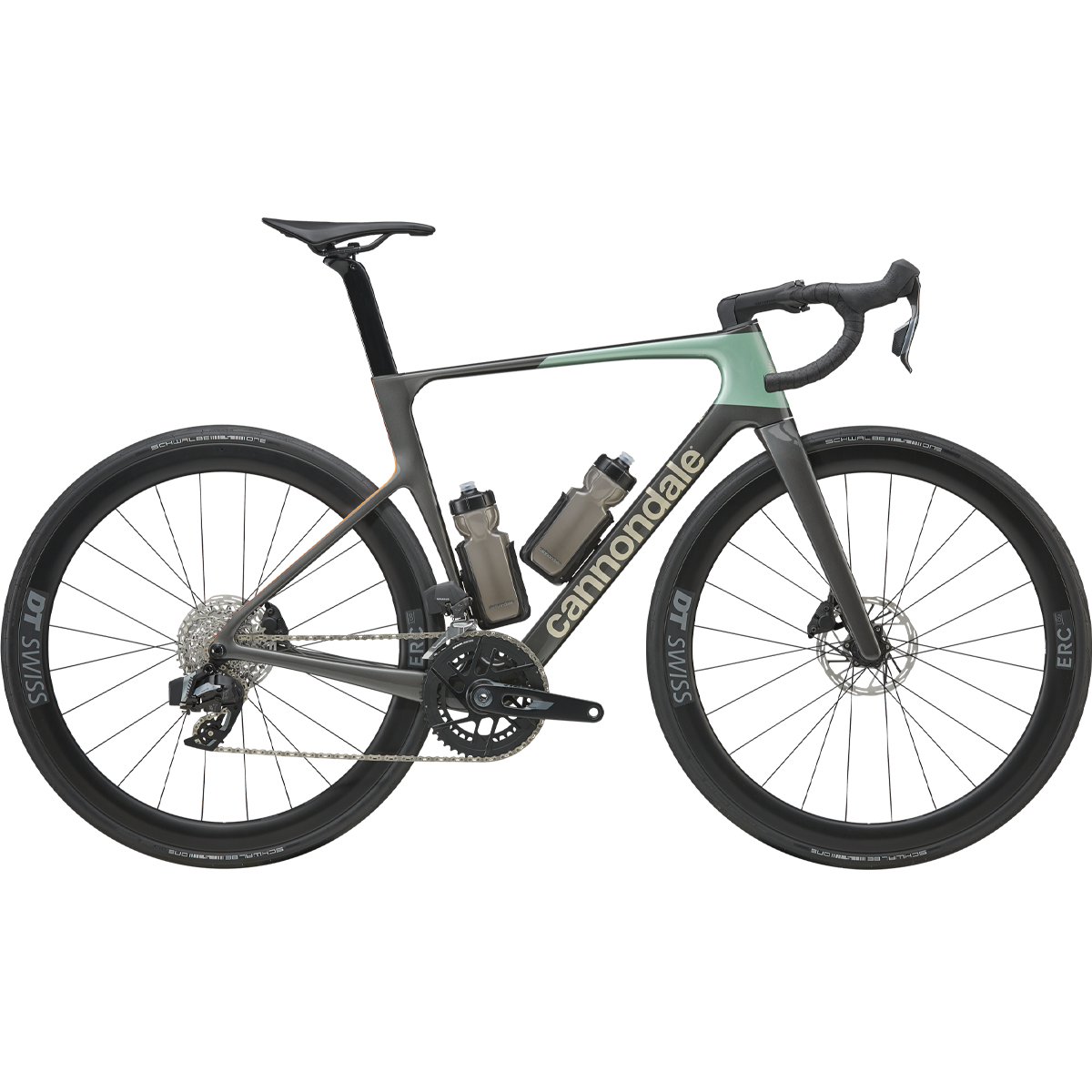

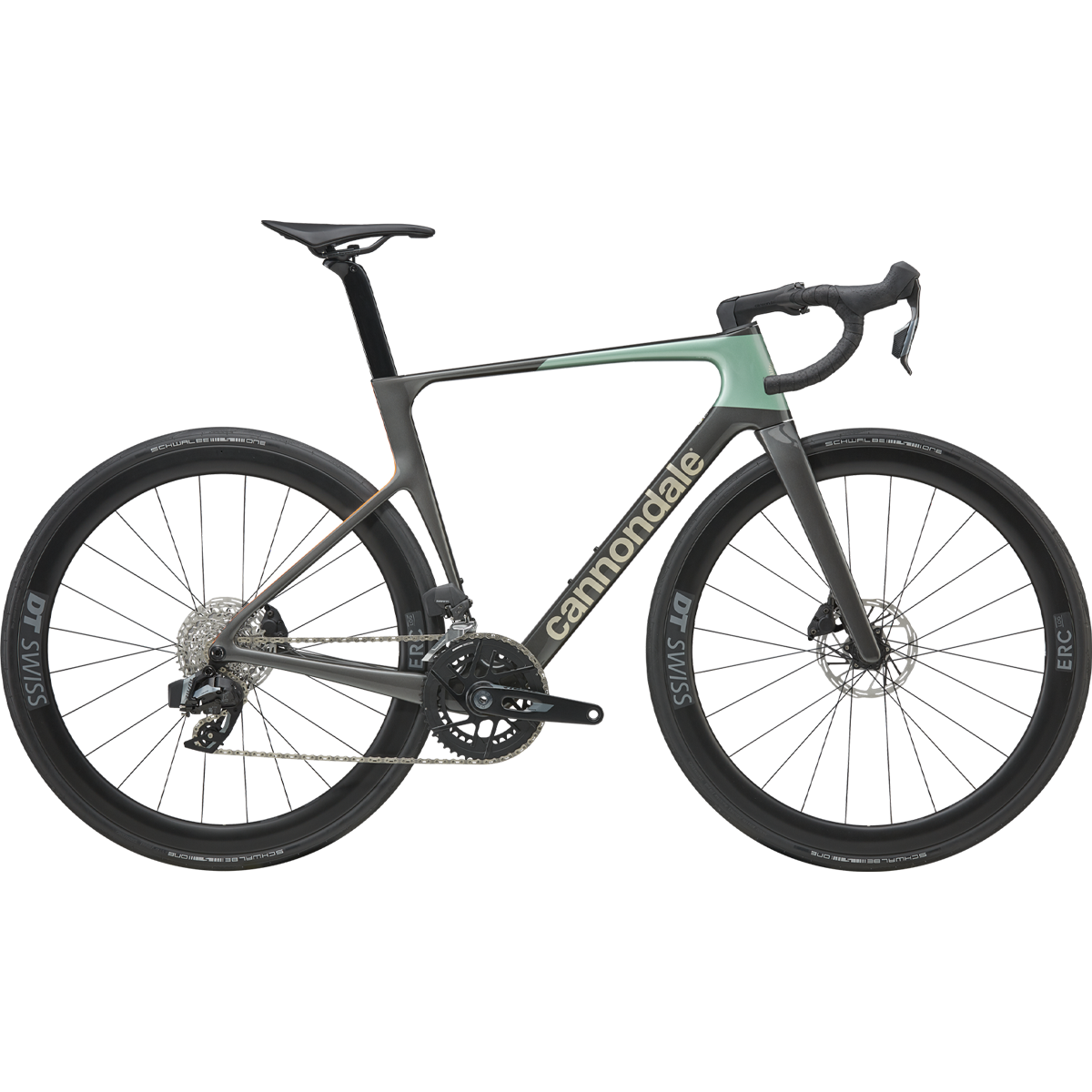

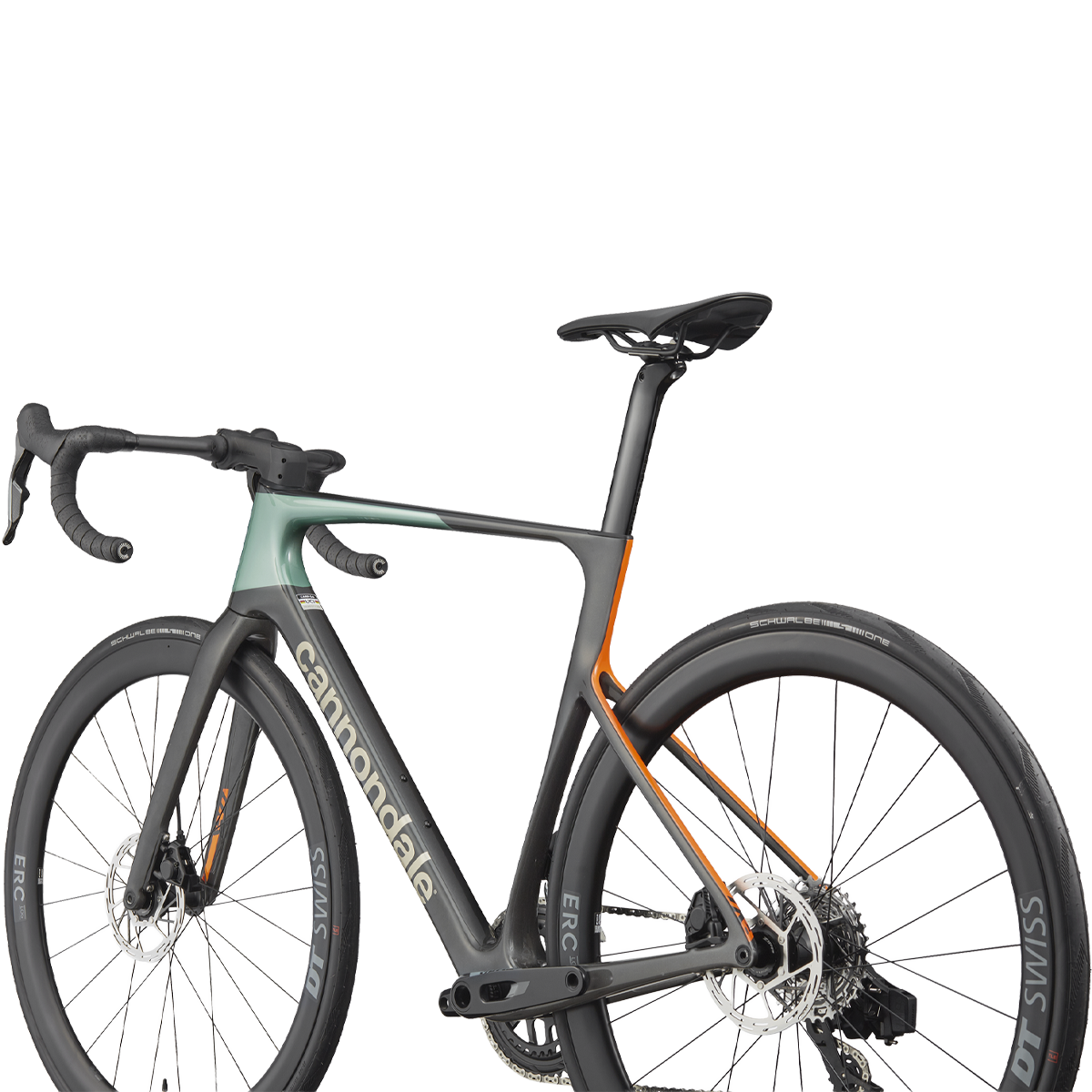

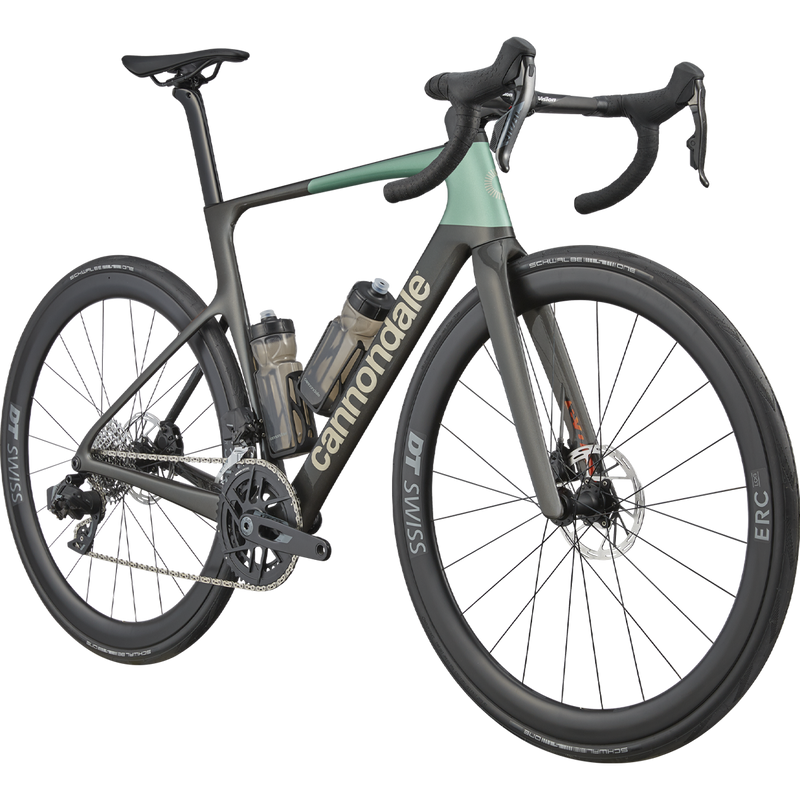

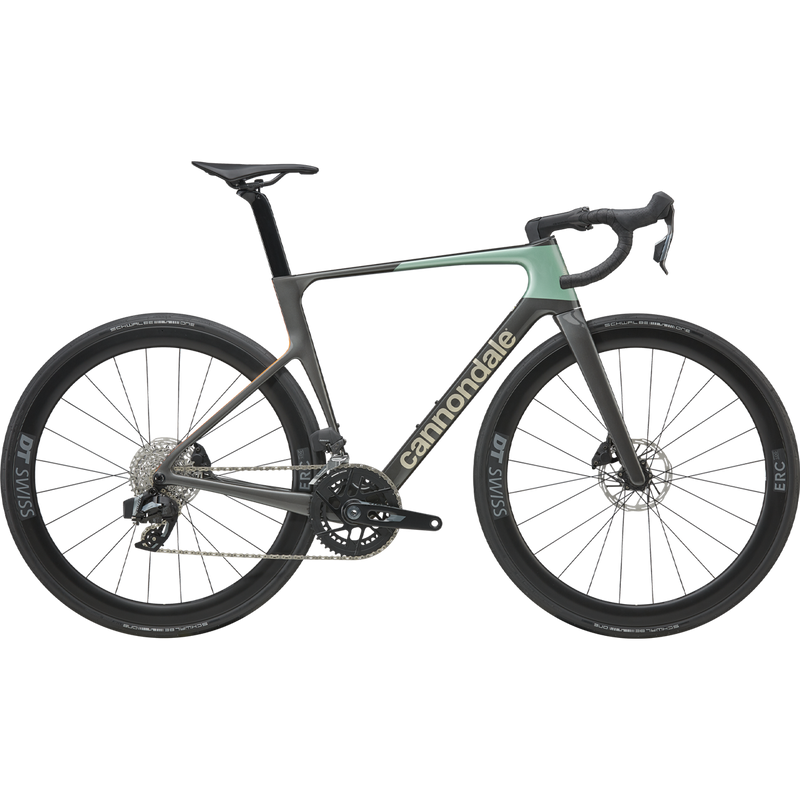

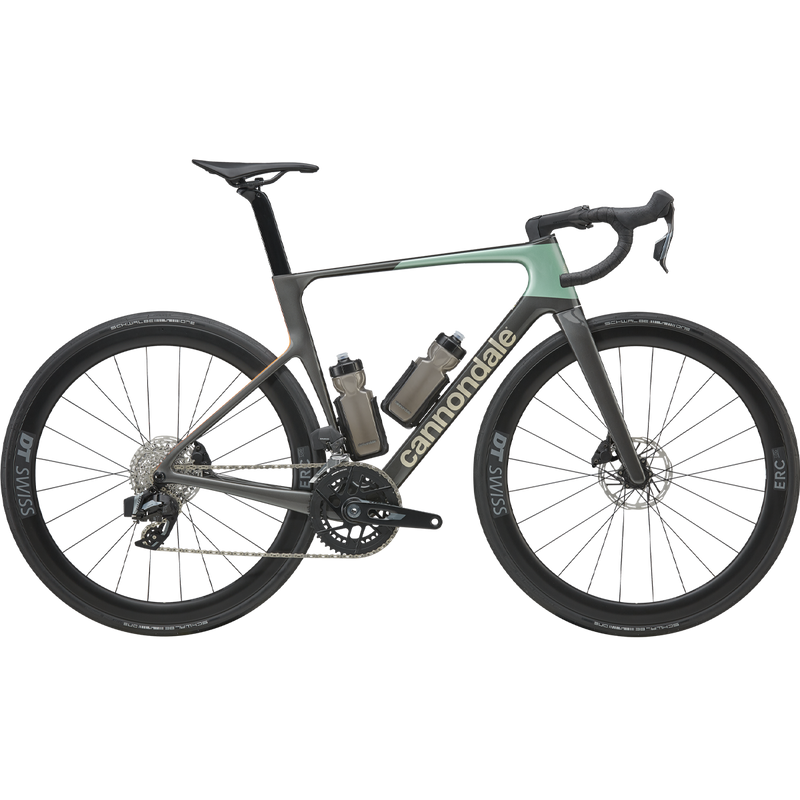

SuperSix EVO 4
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere. Take it up a level. The lightweight Gen 5 EVO carbon frame rolls on race-ready DT Swiss ERC LOG 45 carbon wheels, balancing light weight
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere. Take it up a level. The lightweight Gen 5 EVO carbon frame rolls on race-ready DT Swiss ERC LOG 45 carbon wheels, balancing light weight with ruthless aero efficiency. With SRAM’s Rival AXS wireless electronic shifting, Vision Trimax Carbon Aero bars and our Conceal stem, the SuperSix EVO 4 is ready to challenge for the top step.
- What it's for: Breakaways, KOMs, Podiums, and PRs
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- SRAM's workhorse Rival AXS group - precise, reliable wireless electronic shifting
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Frame | SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142mm thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH |
| Fork | SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Headset | Integrated, 1-1/8" - 1-1/4" |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm) |
| Handlebar | Vision Trimax Carbon Aero: 380mm (44-56cm), 400mm (58-61cm) |
| Bar Tape | Cannondale Bar Tape, 3.5mm |
| Seatpost | Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm) |
| Saddle | Fizik Vento Antares R7, 140mm |

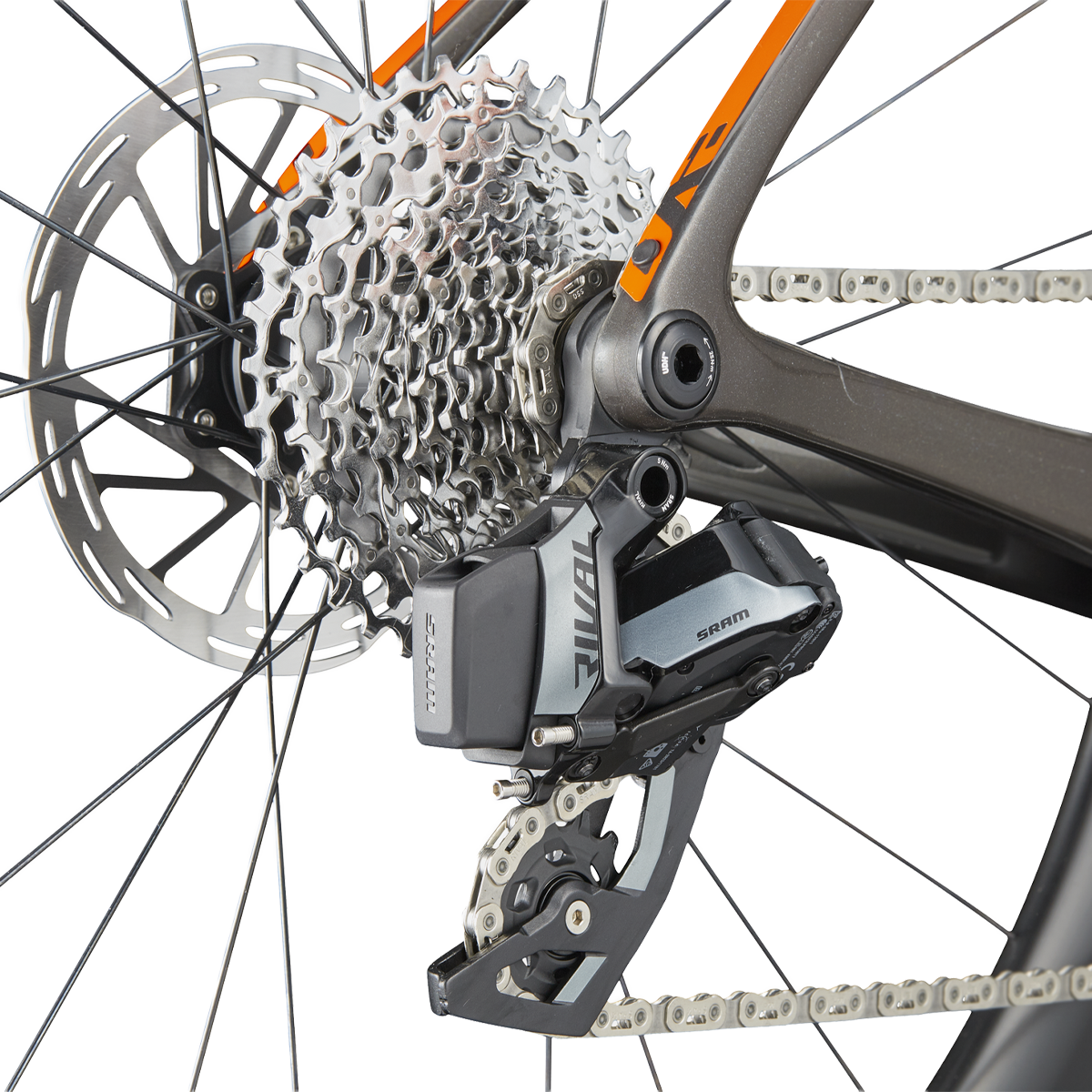

| Rear Derailleur | SRAM Rival AXS, 12-speed |
| Front Derailleur | SRAM Rival AXS |
| Shifters | SRAM Rival AXS, 2x12-speed |

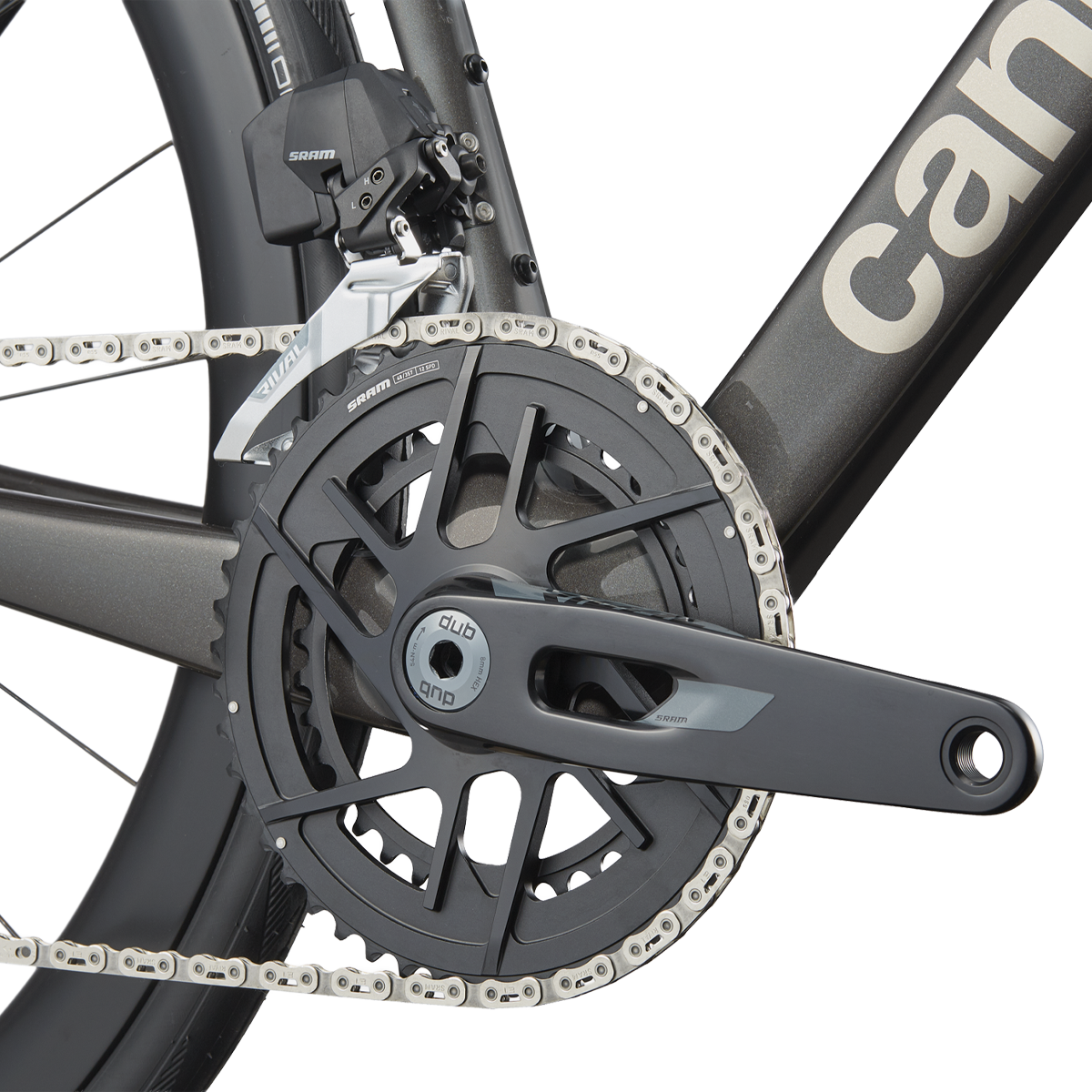

| Crank | SRAM Rival AXS, 48/35T: 165mm (44-50cm), 170mm (52-56cm), 172.5mm (58-61cm) |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM Rival, 12-speed |
| Rear Cogs | SRAM Rival XG-1250, 10-36, 12-speed |
| Brakes | SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors |
| Rims | DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
| Spokes | DT Swiss Competition |
| Tires | Schwalbe One TLR, 700x28c, tubeless ready (some bikes may ship with 30c due to regional availability) |
| Pedals | Not included |
| Extras | Tubeless valves, SRAM AXS charger, Conceal Stem accessory / computer mount (Garmin/Wahoo) |
* Specs subject to change
