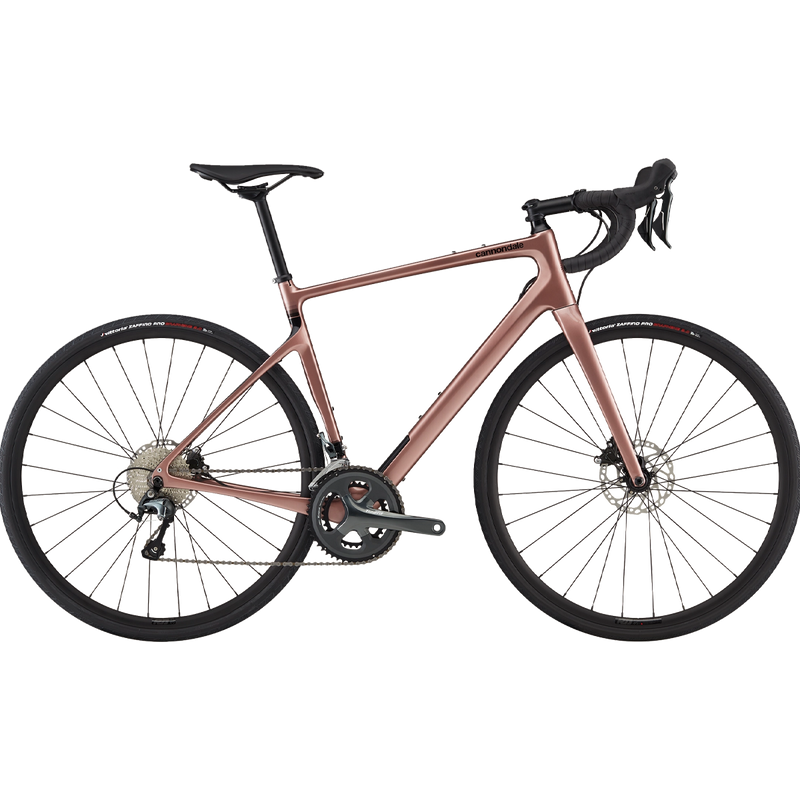

Synapse Carbon 4
Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – Cannondale's most comfortable, all-around, up-for-anything, pure road machine.
Lightweight Synapse Carbon Frameset
Integrated Cannondale App connectivity
SmartS
Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – Cannondale's most comfortable, all-around, up-for-anything, pure road machine.
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
- Lightweight Synapse Carbon Frameset
- Integrated Cannondale App connectivity
- SmartSense compatible
- Shimano Tiagra 10-speed group
- Shimano Tiagra hydraulic disc brakes
- What it's built for: Comfort, handling, going long
- Where it thrives: The open road, up & down hills, rough pavement
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| FRAME | Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts |
| FORK | Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts |
| HEADSET | Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8" |
| DERAILLEUR, REAR | Shimano Tiagra GS |
| DERAILLEUR, FRONT | Shimano Tiagra, braze-on |
| SHIFTERS | Shimano Tiagra hydraulic disc, 10-speed |
| CHAIN | Shimano HG54, 10-speed |

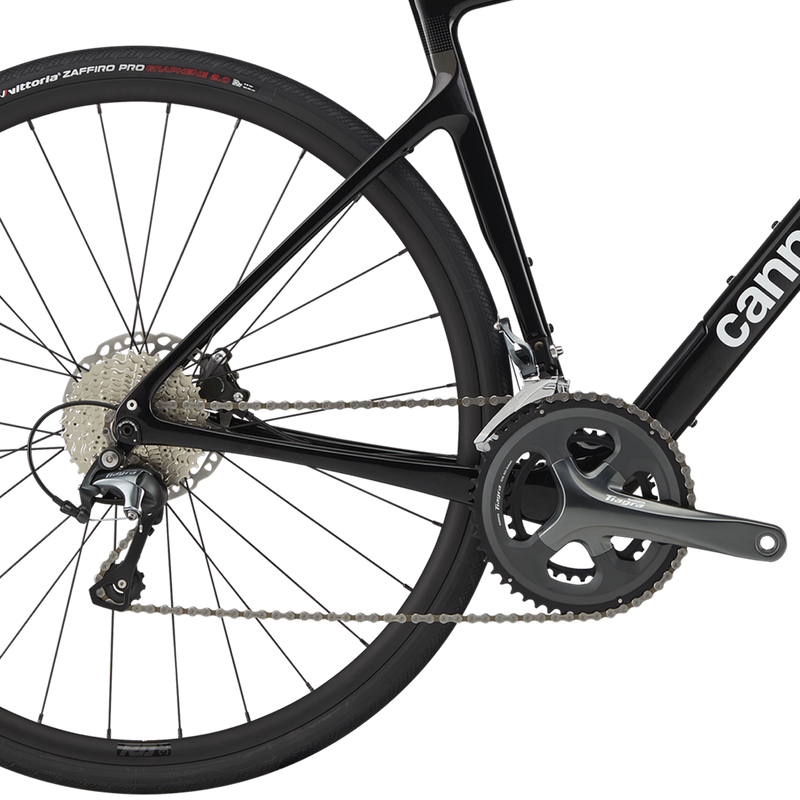

| CRANK | Shimano Tiagra, BSA, 50/34 |
| REAR COGS | Shimano Tiagra, 11-34, 10-speed |
| BOTTOM BRACKET | Shimano BSA |
| BRAKES | Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors |
| RIMS | RD 3.1, 28h, 21mm IW |
| HUB, FRONT | Formula CL-712, 12x100mm centerlock |
| HUB, REAR | Formula RXC-400, 12x142mm centerlock |
| SPOKES | Stainless Steel, 14g |

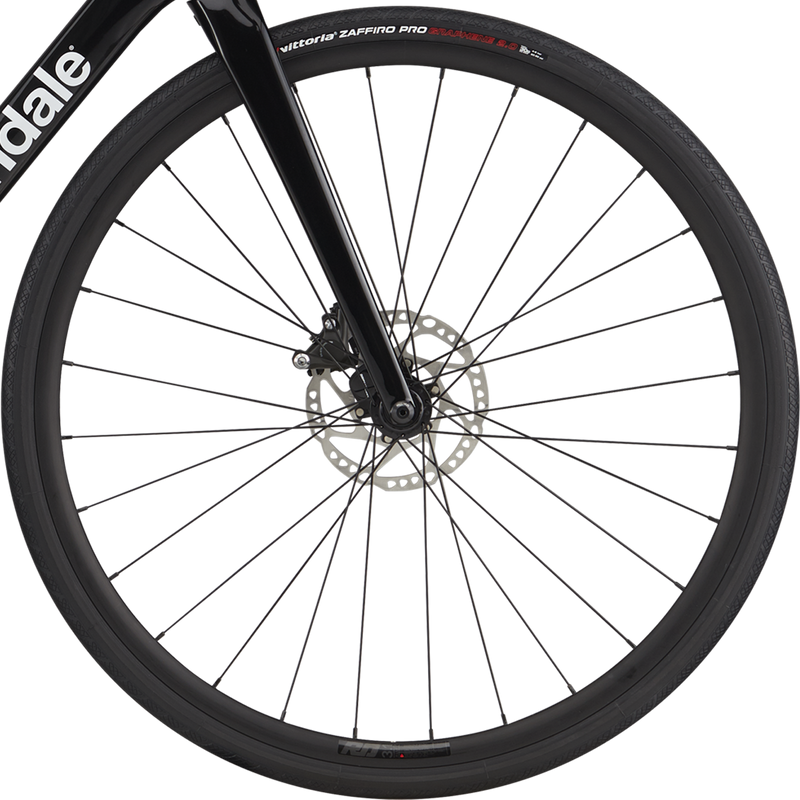

| TIRES | Vittoria Zaffiro Pro Reflective, 700 x 30c |

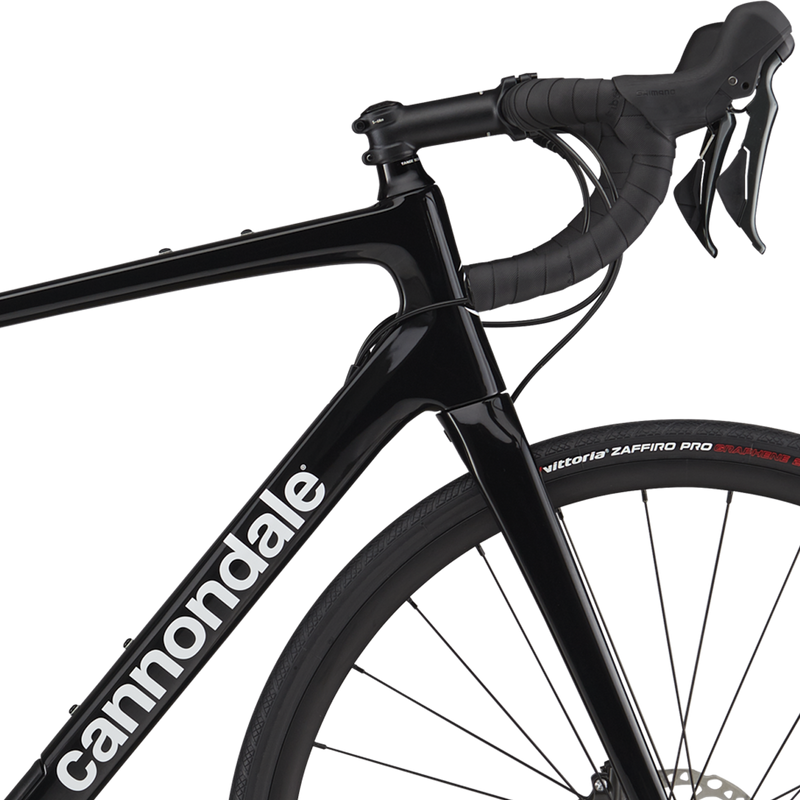

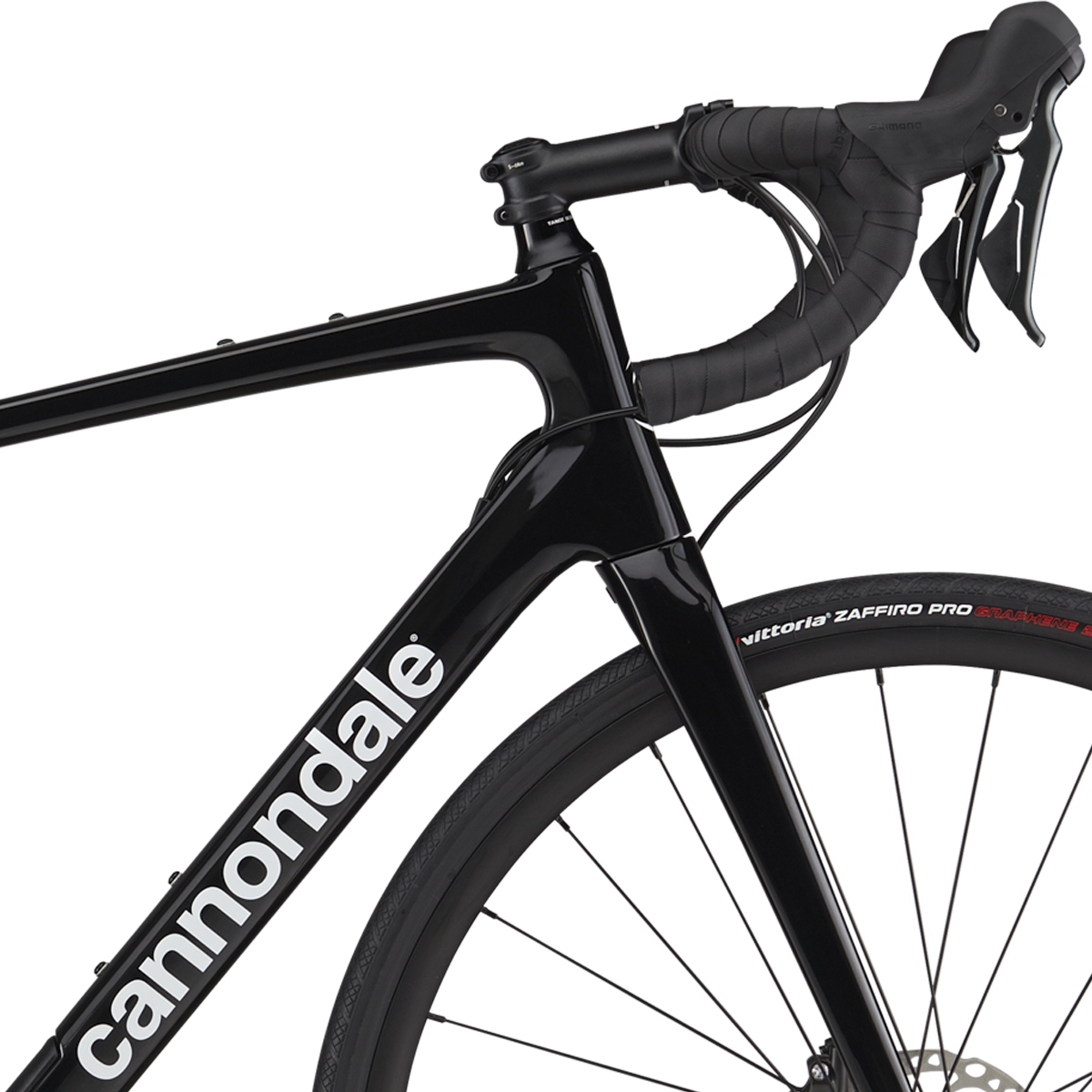

| HANDLEBAR | Cannondale 3, 6061 Alloy, Compact |
| STEM | Cannondale 3, 6061 Alloy, 31.8, 7° |
| GRIPS | Fabric Knurl Bar Tape |

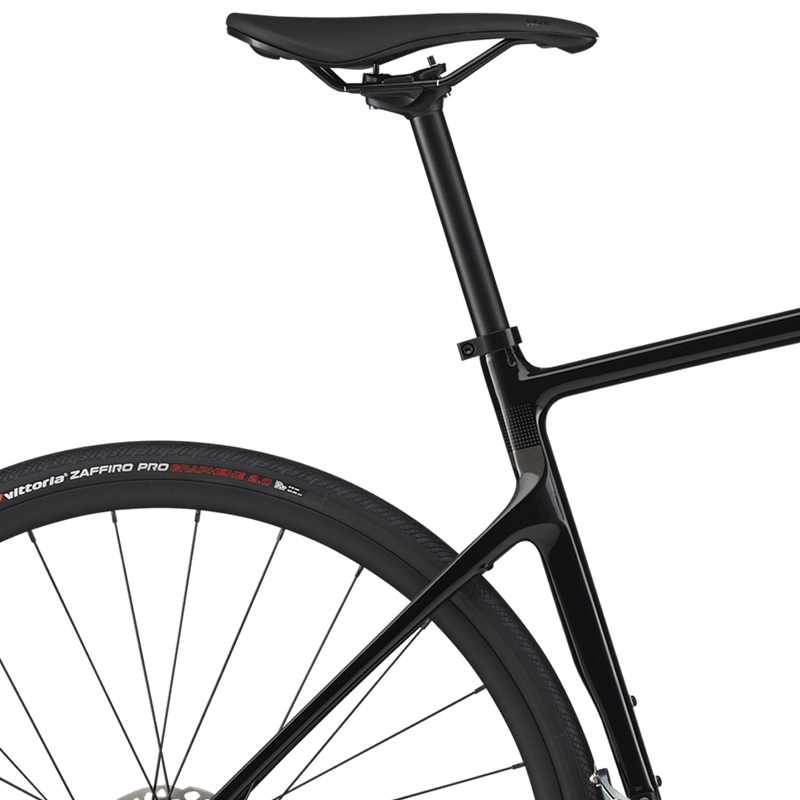

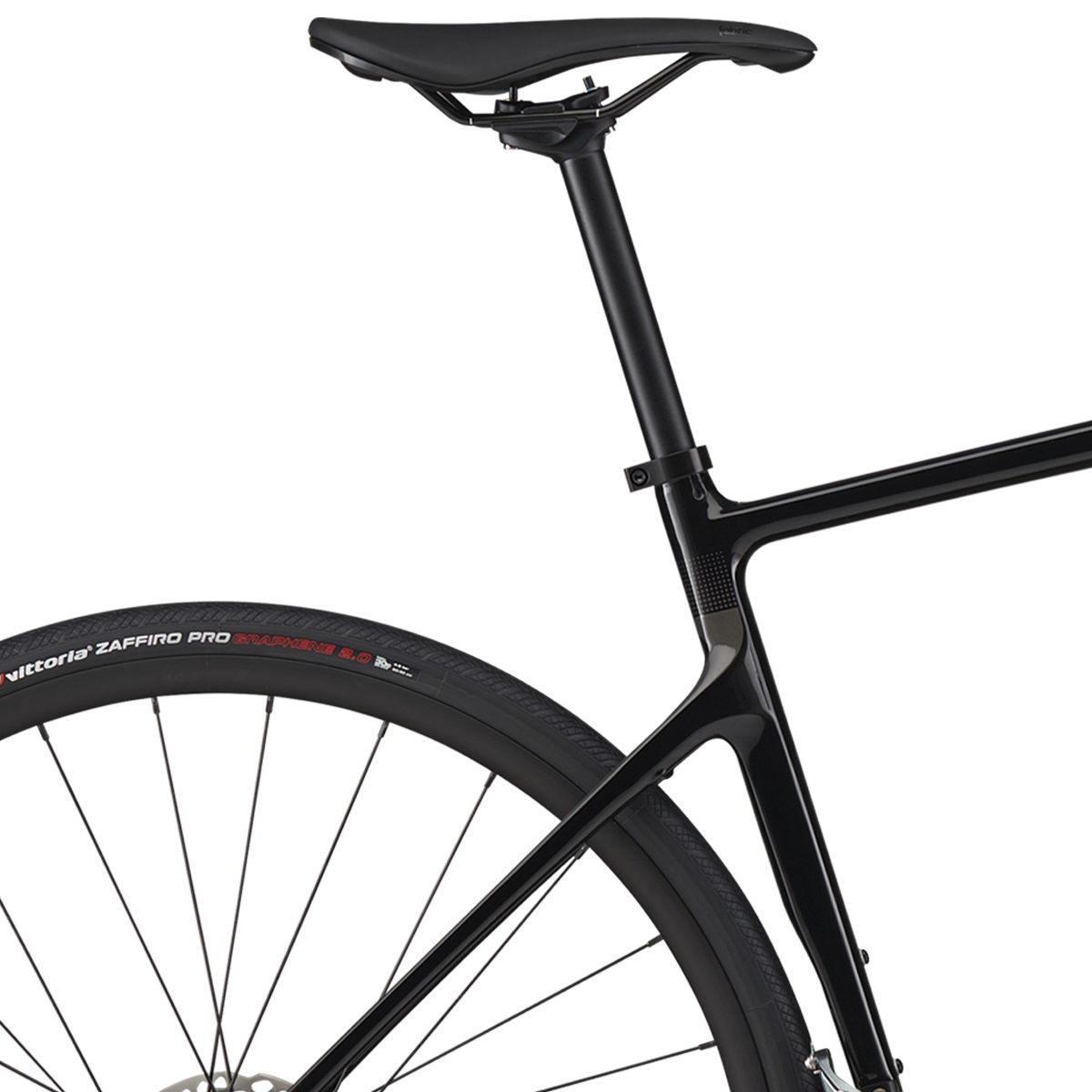

| SADDLE | Fizik Aliante Delta, S-alloy rails |
| SEATPOST | Cannondale 3, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61) |
| WEIGHT (APPROX) | 9.5 KG / 20.9 LBS |
* Specs subject to change
