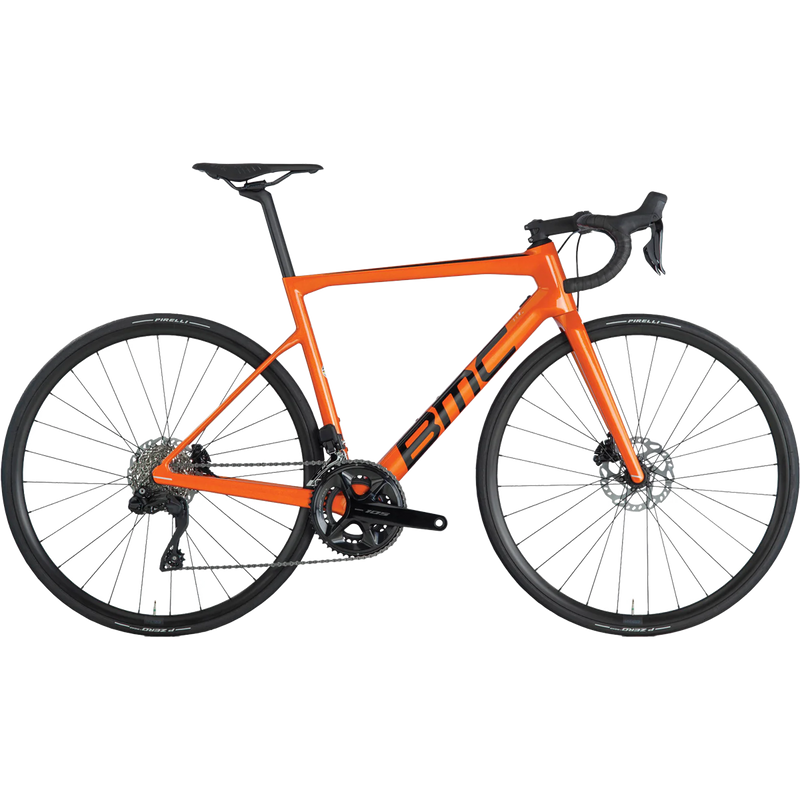

Teammachine SLR FOUR
The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Introducing the carbon Teammachine
The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Introducing the carbon Teammachine SLR range, the Teammachine SLR FOUR has a Shimano 105 Di2 groupset with PRD23 wheelset and a compact drop bar.
- SHIMANO 105 Di2 Drivetrain
- PRD23 Wheels
- Integrated Cable Routing and Carbon D-Shape Seatpost
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| Frame | Teammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, Flat Mount Disc, 12 x 142mm Thru-Axle, Optimized for Aerocore Bottle Cages |
| Fork | Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12 x 100mm Thru-Axle |
| Stem | BMC RSM 01 |
| Handlebar | BMC RAB 02, Ergo Top Shape, Compact Bend |
| Seatpost | Teammachine SLR Carbon D-Shaped Seatpost, 15mm Offset |
| Saddle | Fizik Antares R7 |
| Crankset | SHIMANO 105 (FC-R7100) |
| Chainrings | 50-34T |
| Cassette | SHIMANO 105 (CS-R7101) |
| Cassette Size | 11-34T |
| Chain | SHIMANO CN-M6100 |
| Front Derailleur | SHIMANO 105 Di2 (FD-R7150) |
| Rear Derailleur | SHIMANO 105 Di2 (RD-R7150) |
| Shifters | SHIMANO 105 Di2 (ST-R7170) |
| Gears | 2 x 12 |
| Bottom Bracket | PF86 Bottom Bracket |
| Brake Levers / Calipers | SHIMANO 105 (BR-R7170) |
| Rotors | SHIMANO SM-RT70, Centerlock |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | PRD23, 23mm |
| Hubs (F/R) | CL-712 (F), RXC-1425 (R), Thru-Axle |
| Tires | Pirelli P-Zero Road, 26mm |
| Tire Clearance | 30mm |
| Weight without Pedals | 8.1 kg, Size 54 |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
* Specs subject to change
