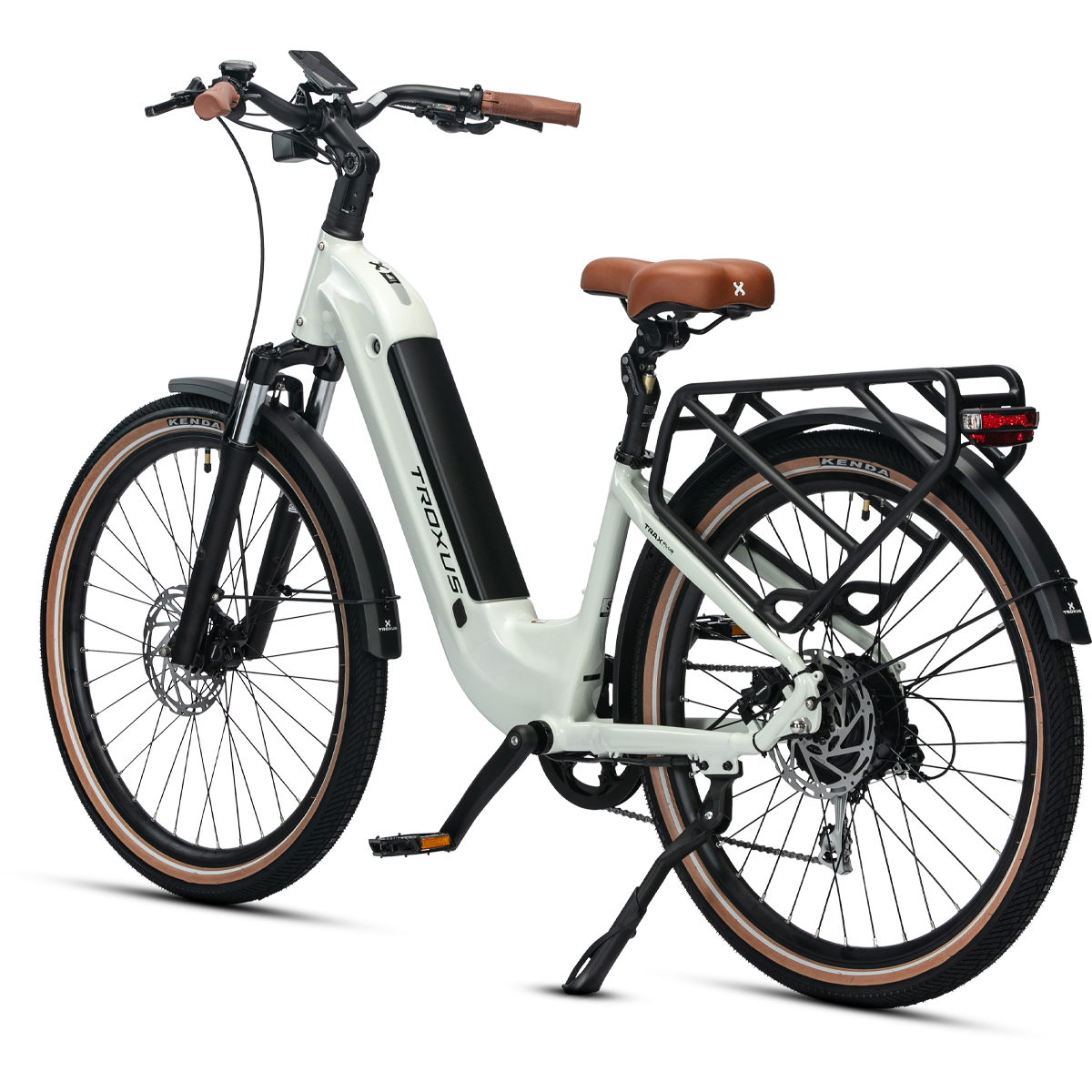

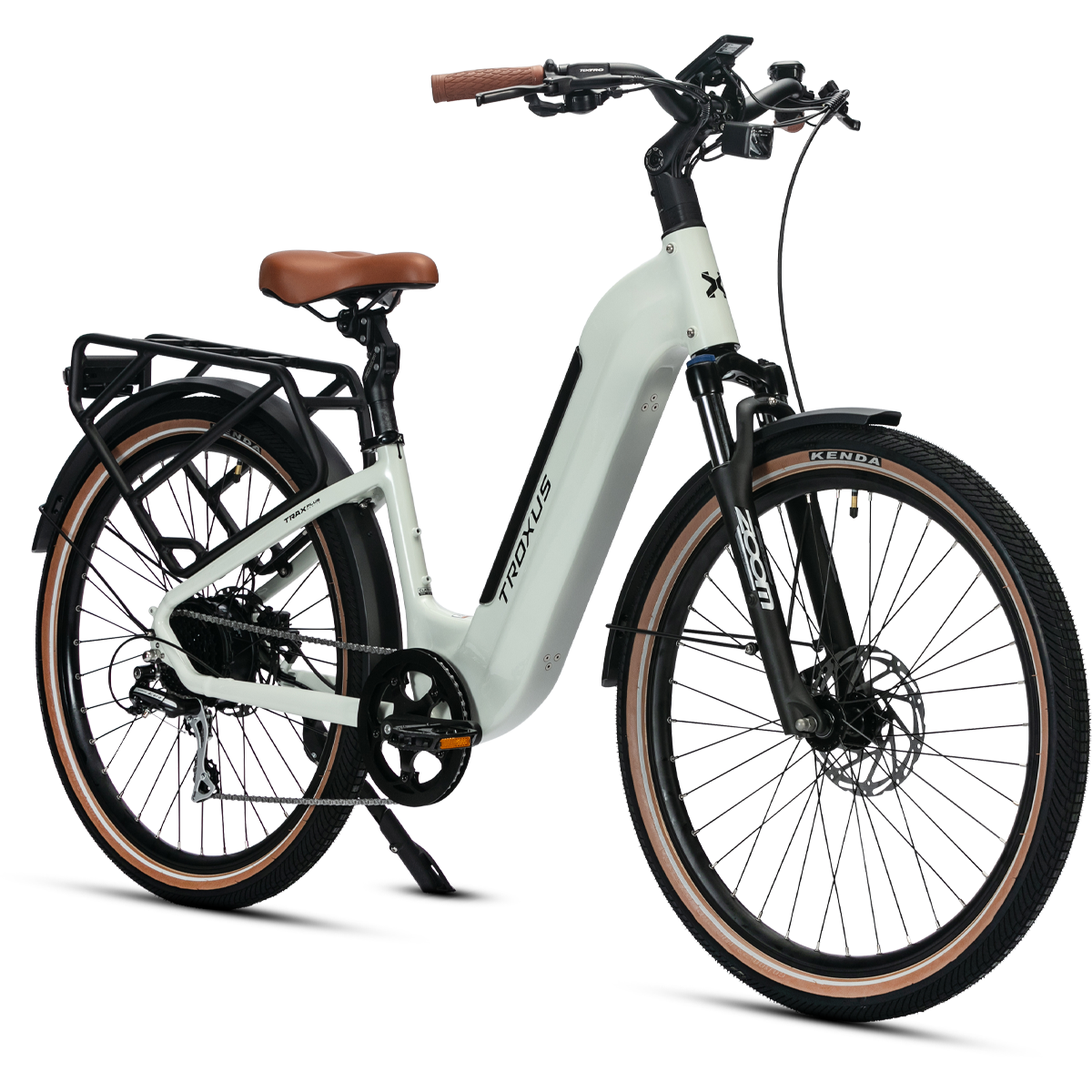

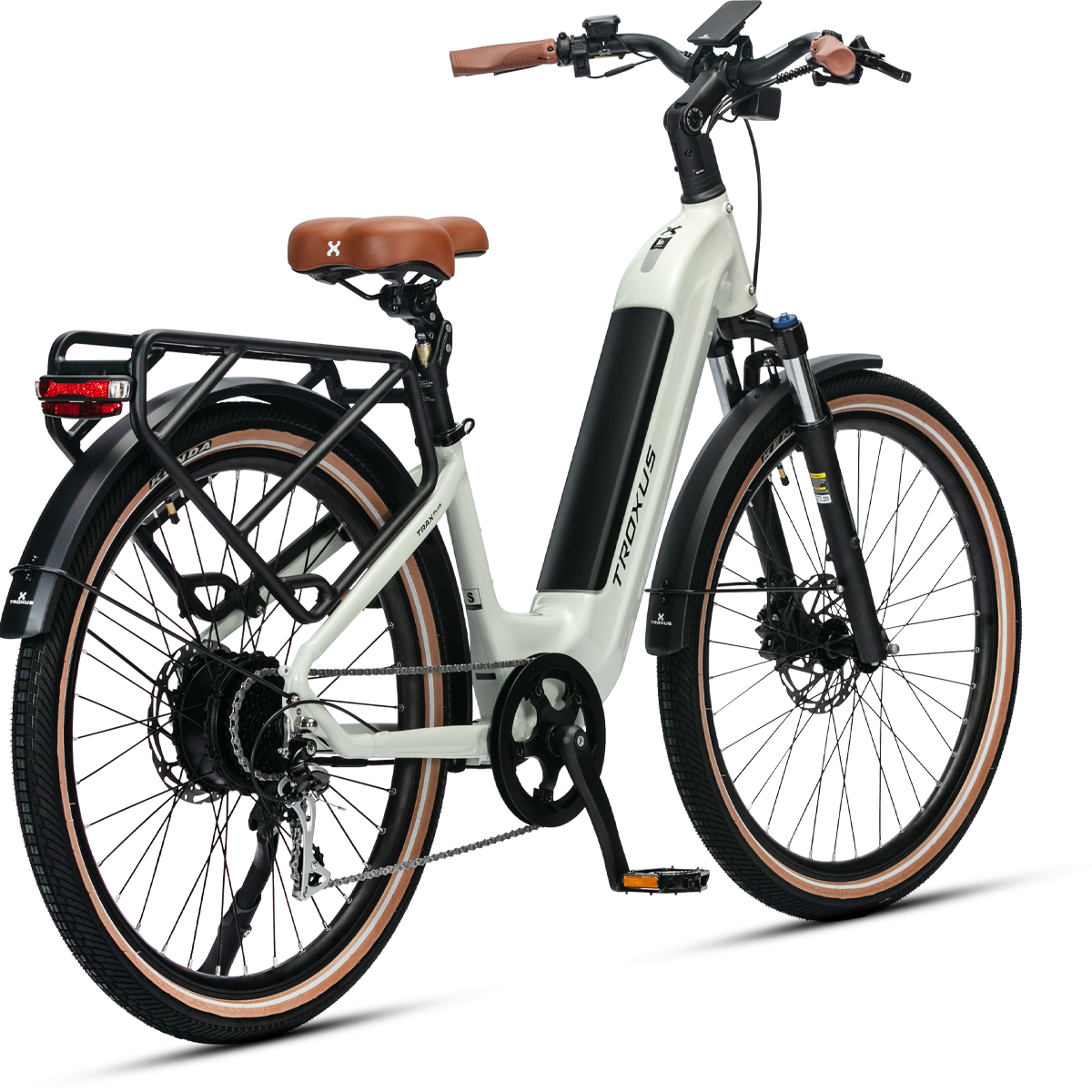

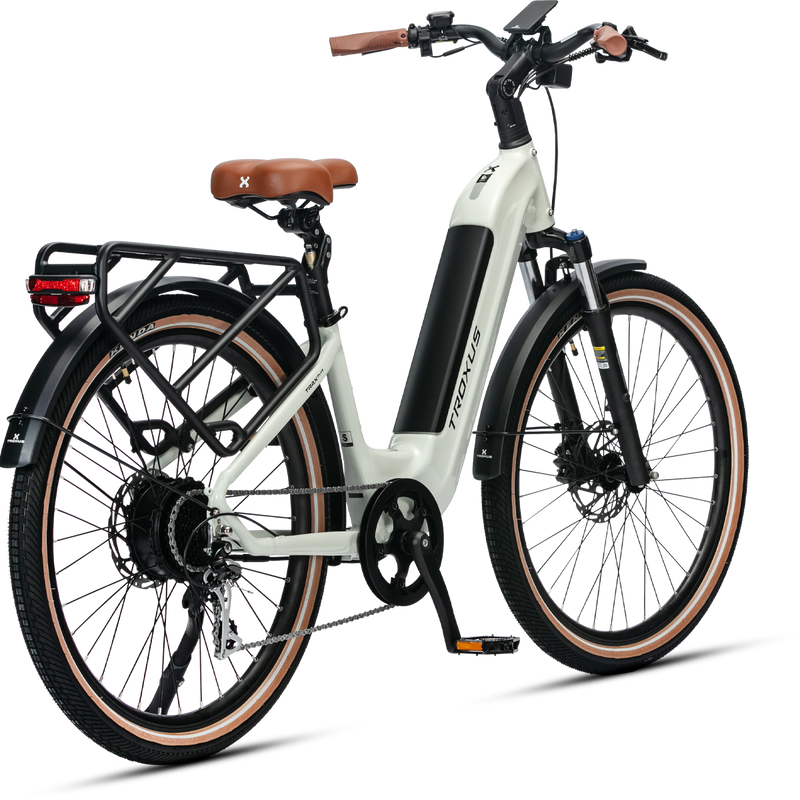

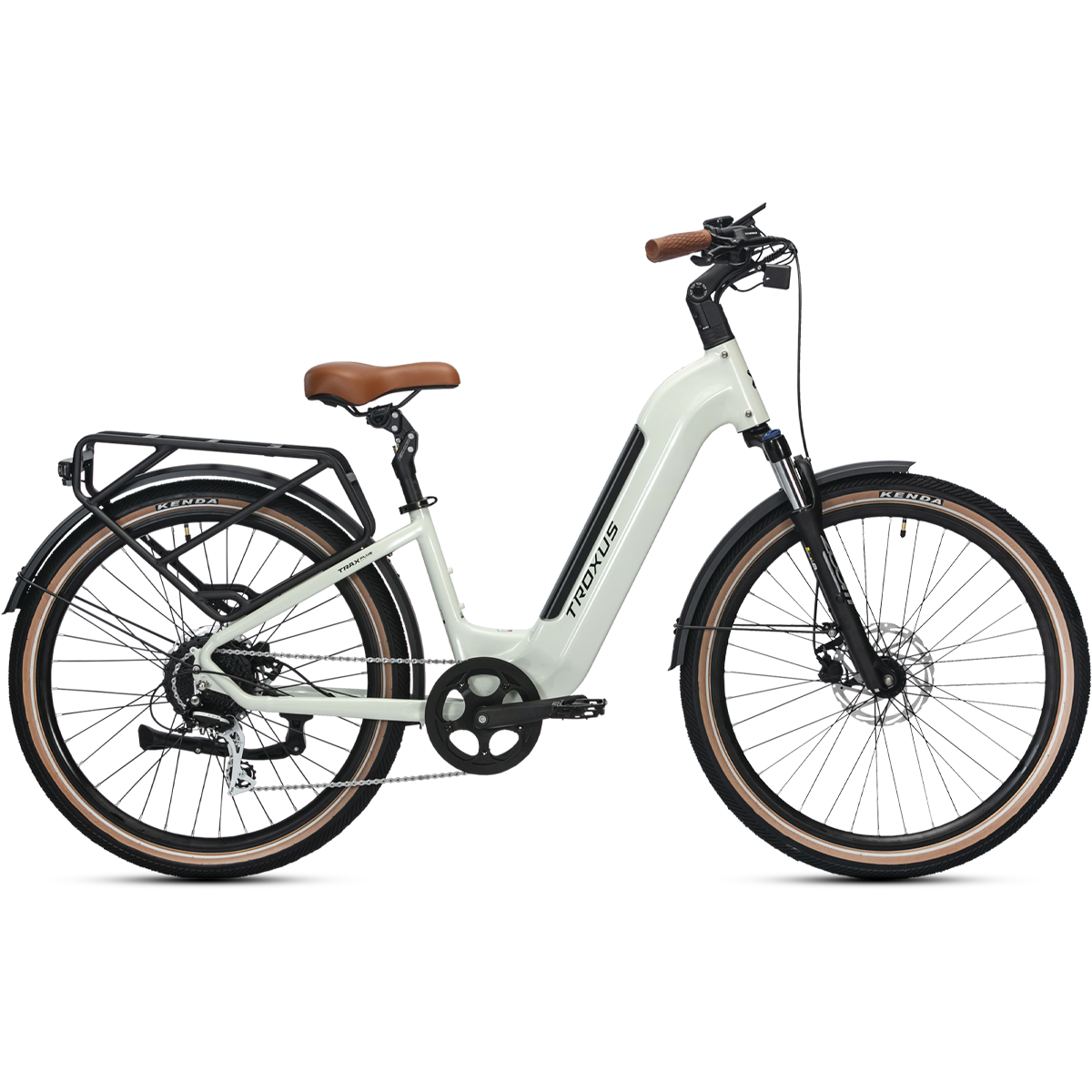

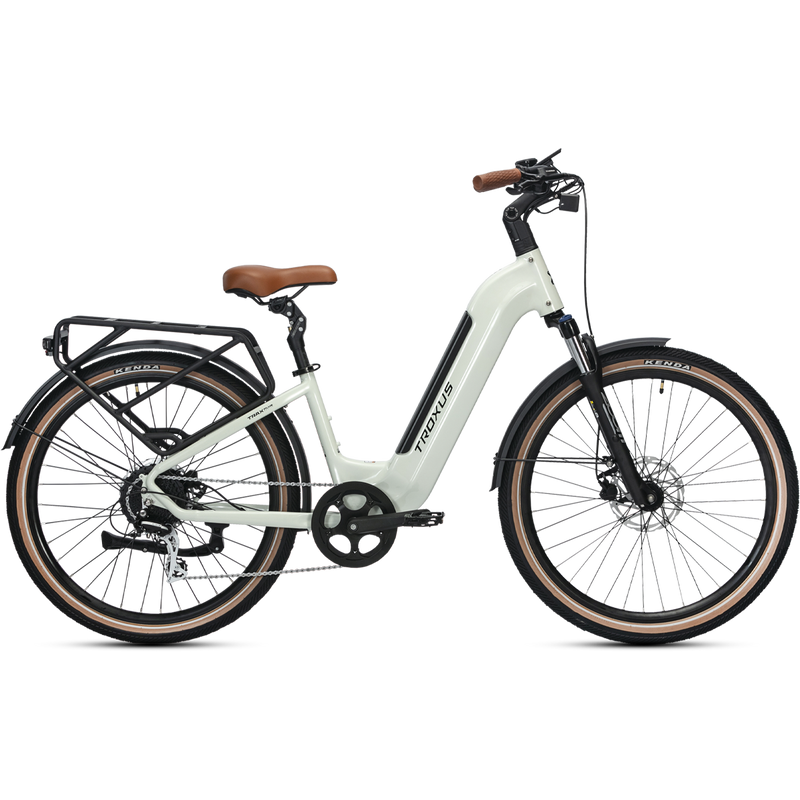

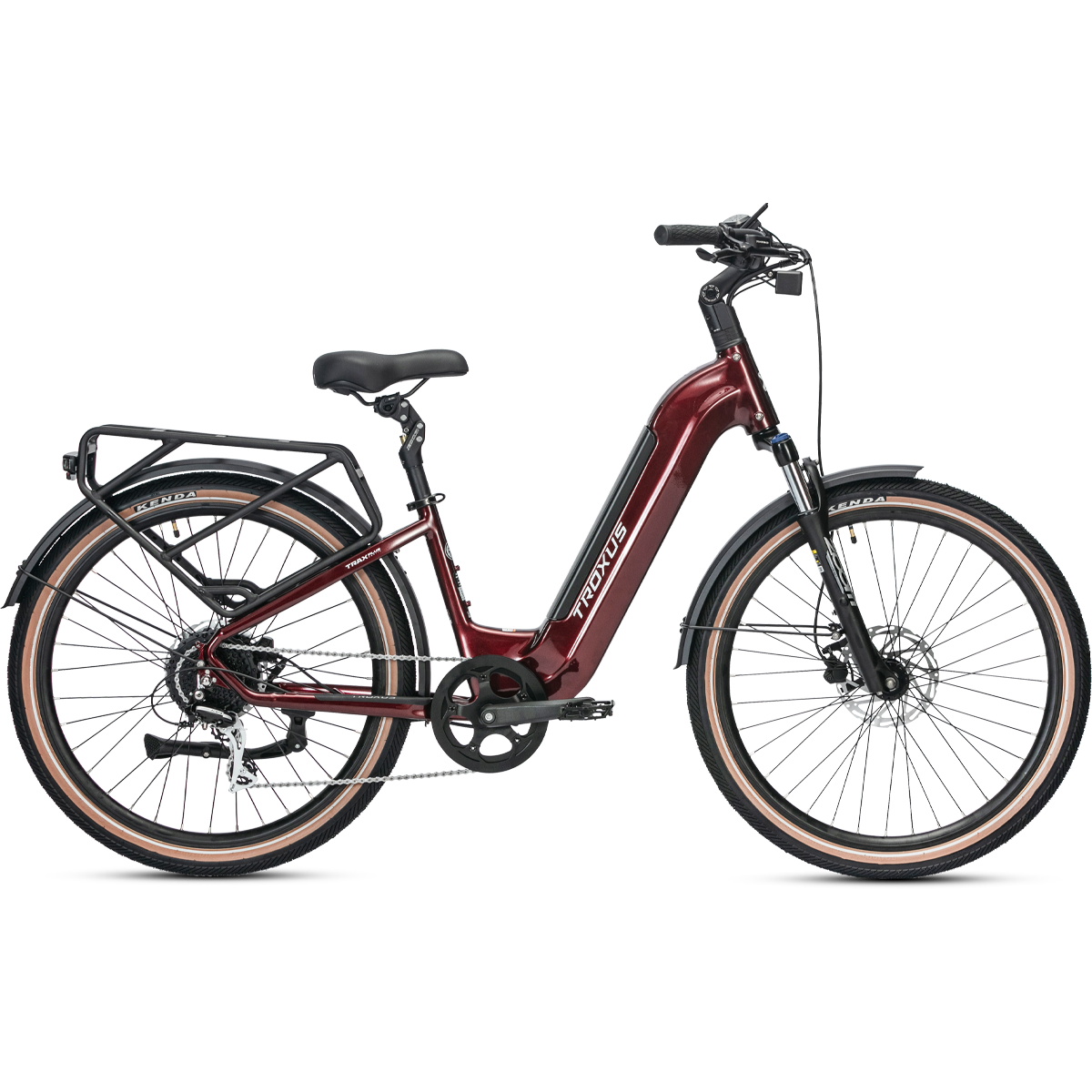

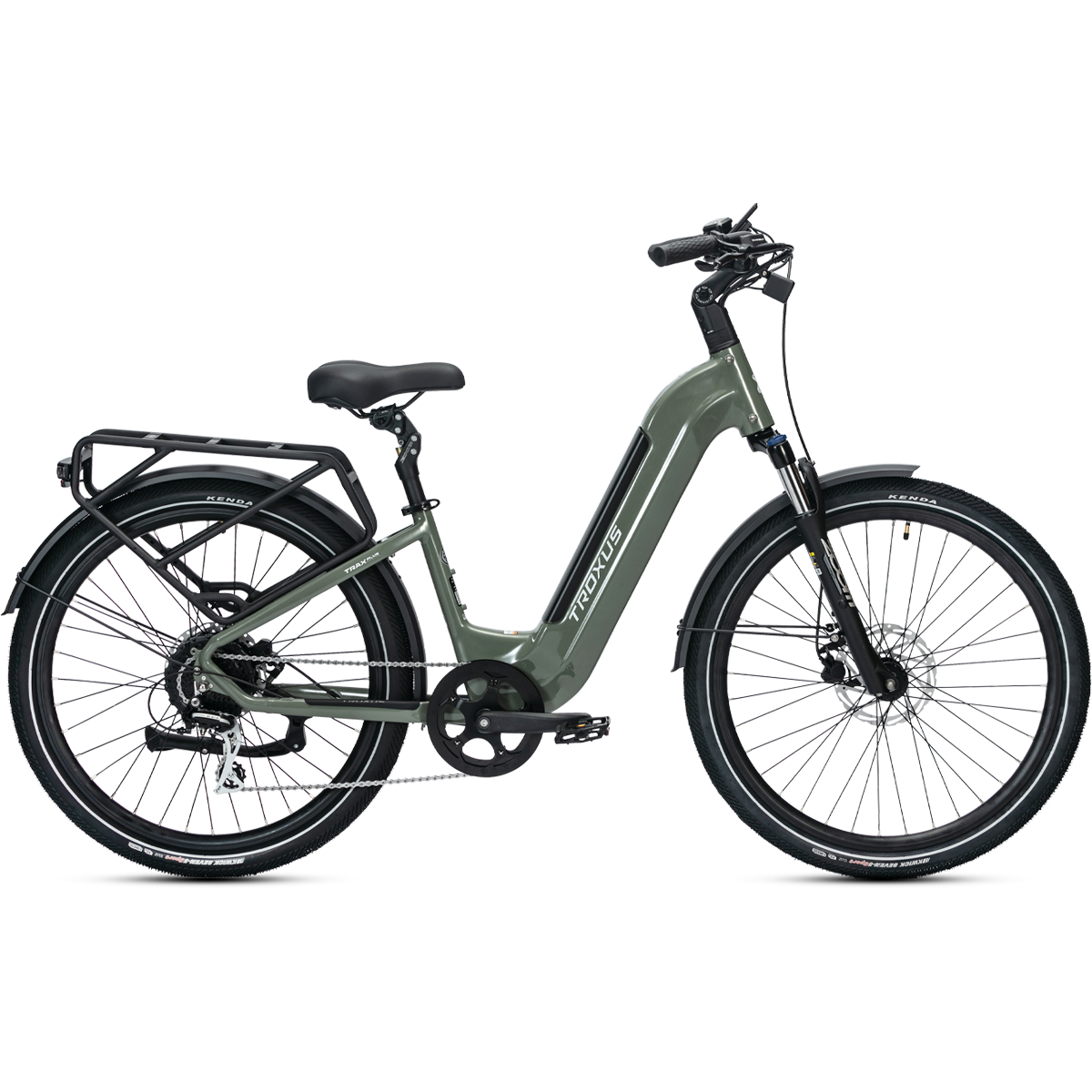

Trax Plus Step-Thru 500/15
The Trax Plus 500W/15Ah is your ultimate high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease. Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers all the power you need for
The Trax Plus 500W/15Ah is your ultimate high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease. Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers all the power you need for any ride. Plus, the smooth suspension seat post adds a layer of comfort you’ll love. Whether you’re climbing steep hills or cruising through the city, the Trax Plus 500W/15Ah makes every journey effortless, exciting, and fun.
- Powerful & Efficient Performance: Get ready to conquer the city and tackle steep hills with ease. The 500W rear hub motor delivers impressive power, giving you a smooth and effortless ride every time, regardless of terrain
- Go the Distance with a 720Wh Battery: Enjoy the freedom of longer rides without constantly worrying about recharging. The 720Wh internal battery provides an extended range, so you can explore more and worry less
- Ride in Total Comfort: Say goodbye to bumpy rides! The suspension seat post absorbs road vibrations and bumps, making your journey smoother and more comfortable—even on rough terrain. Paired with the suspension fork, every journey is comfortably smooth
- Smart, Secure, and Adaptable: Stay in control with switchable torque or cadence sensor modes and hydraulic disc brakes. Effortlessly adapt to changing conditions while enjoying a safe, smart, and reliable ride. Let every trip be your best yet
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Motor | Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells |

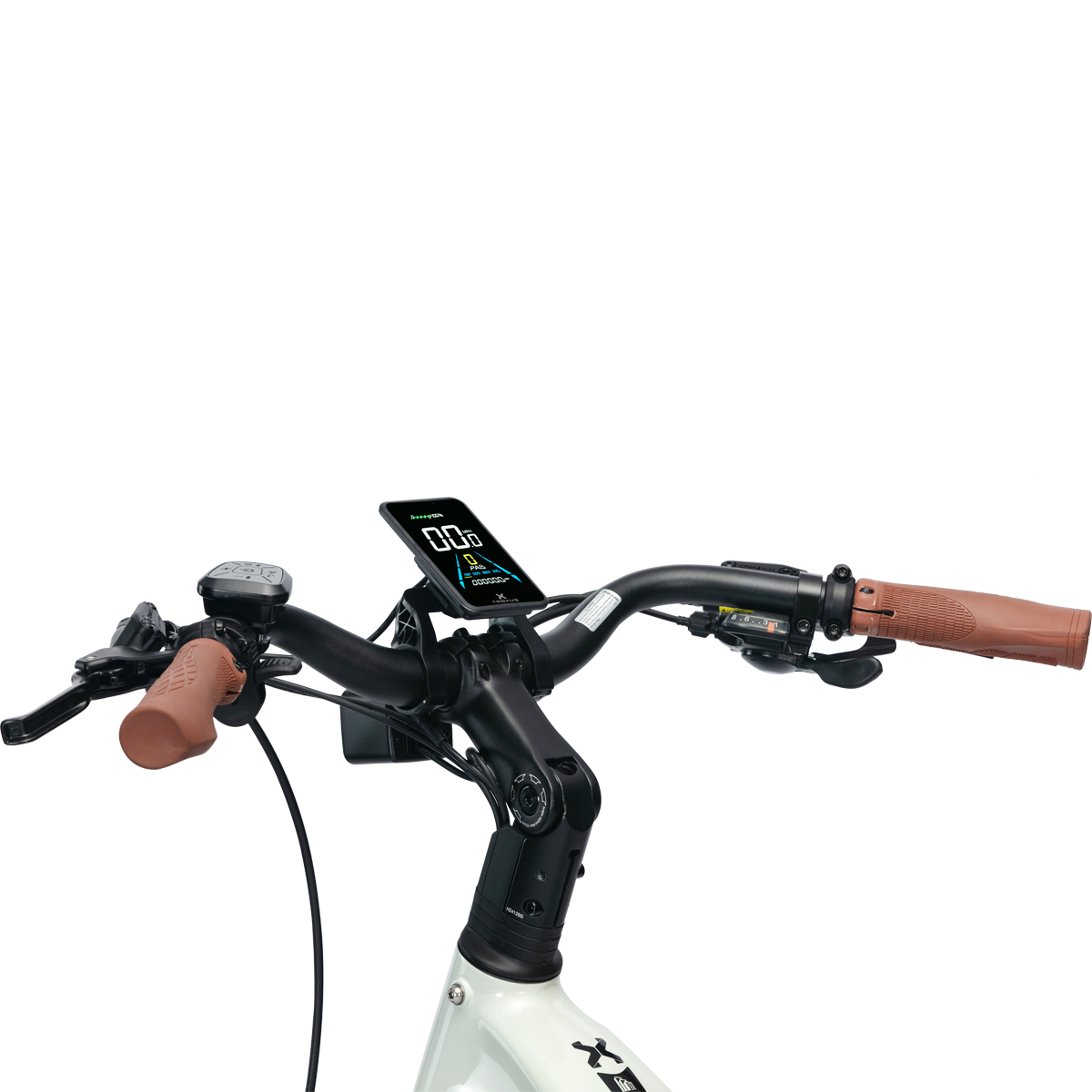

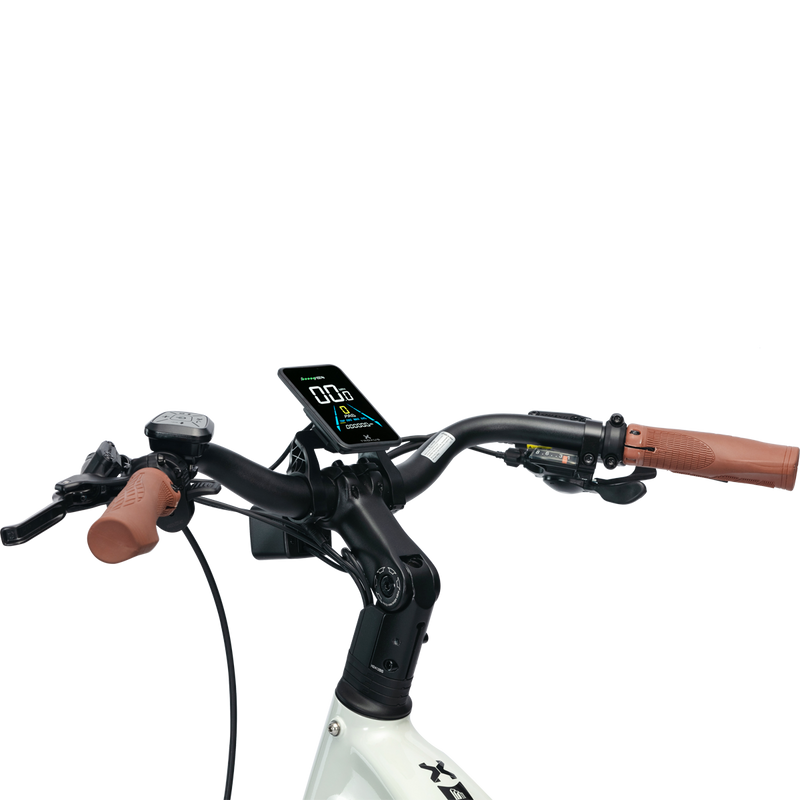

| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |

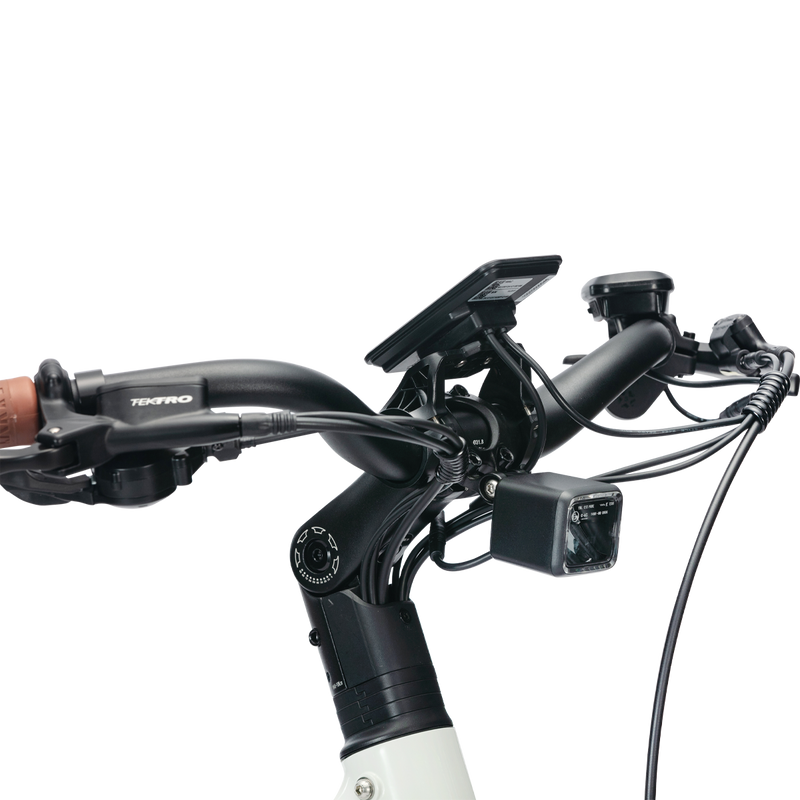

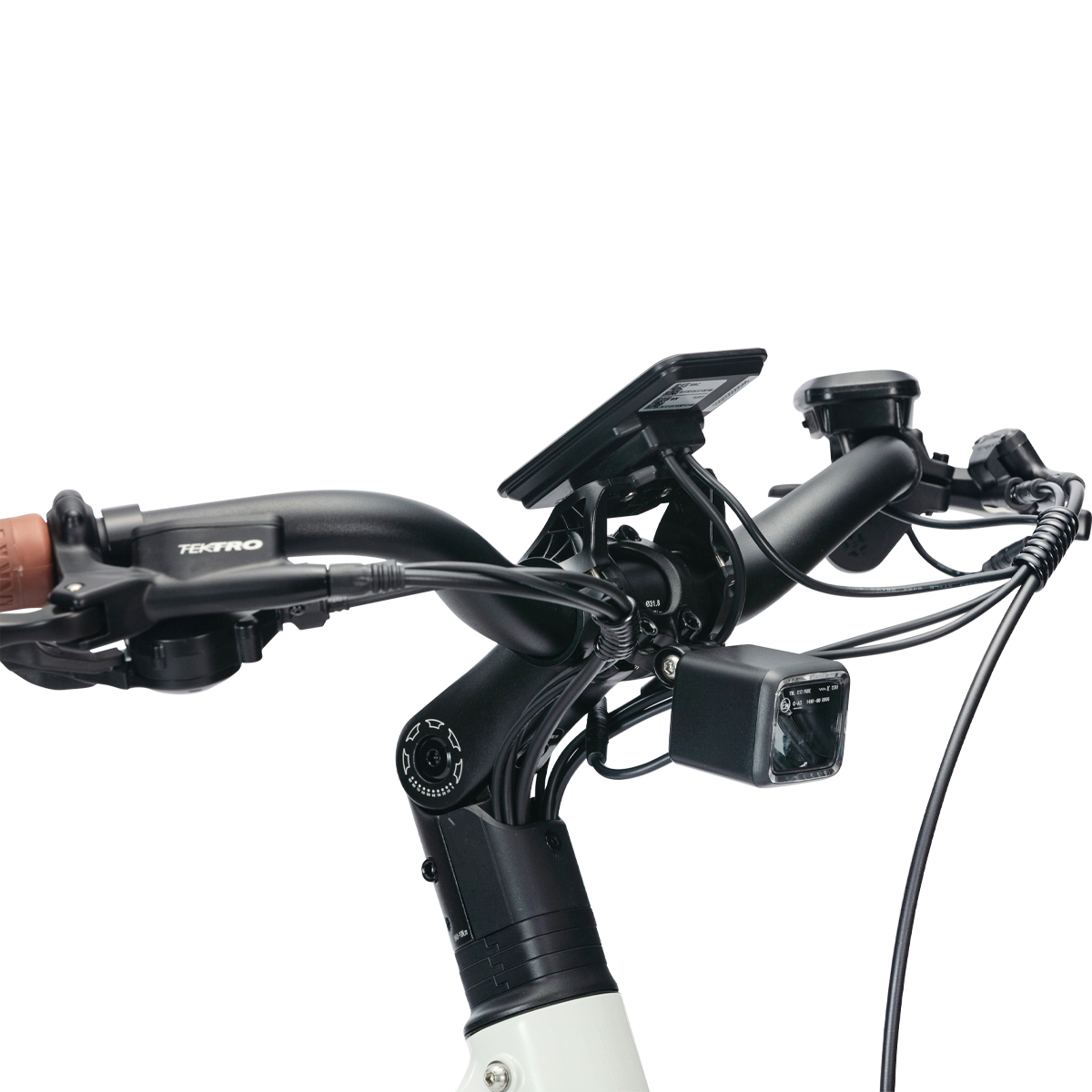

| Lights | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx18A/12V |
| Frame | Hydroformed Aluminum Frame |

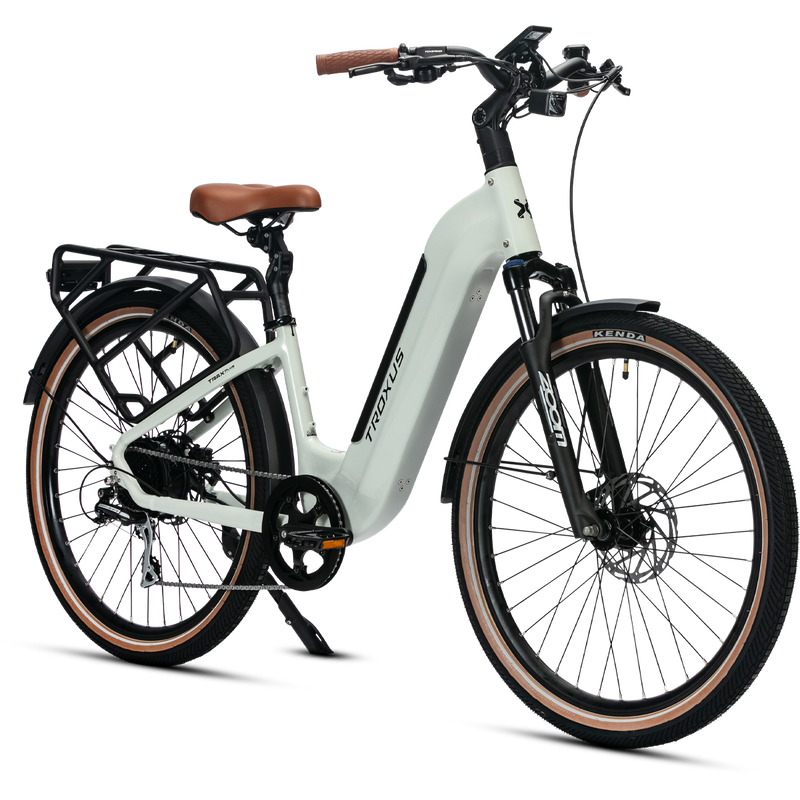

| Fork | Zoom® Front Suspension Fork, 65mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |

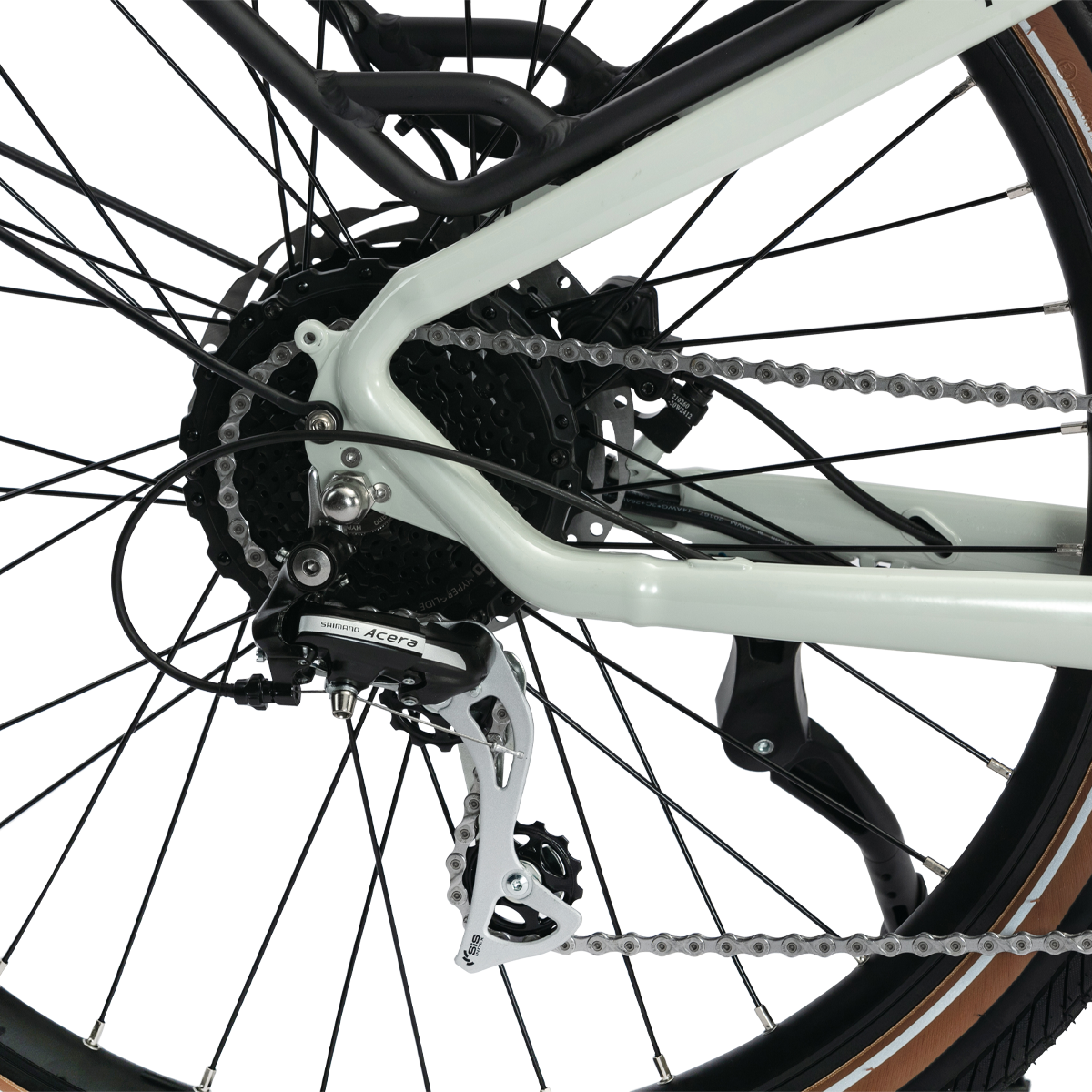

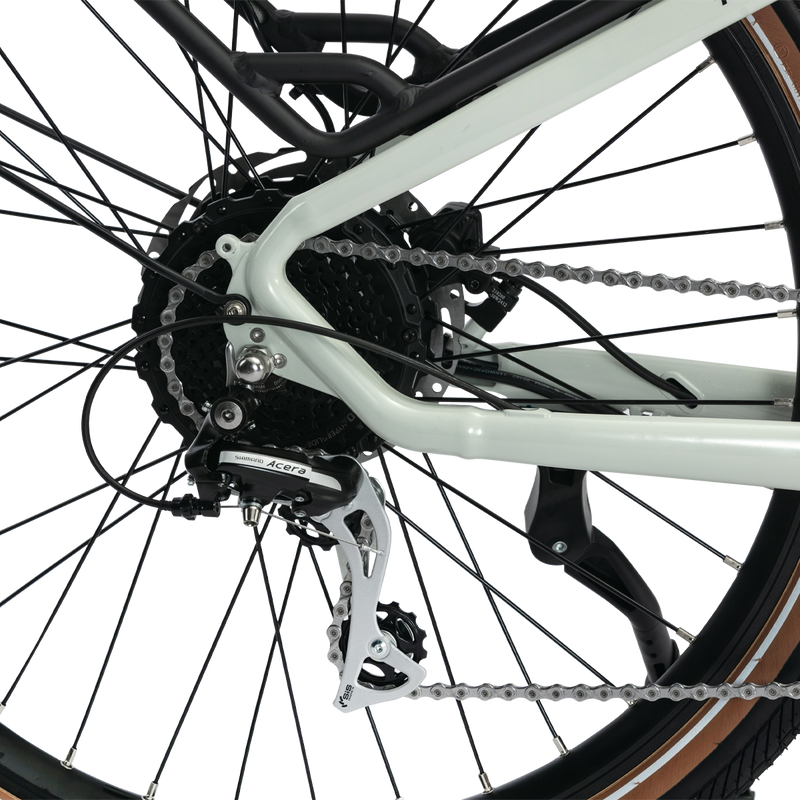

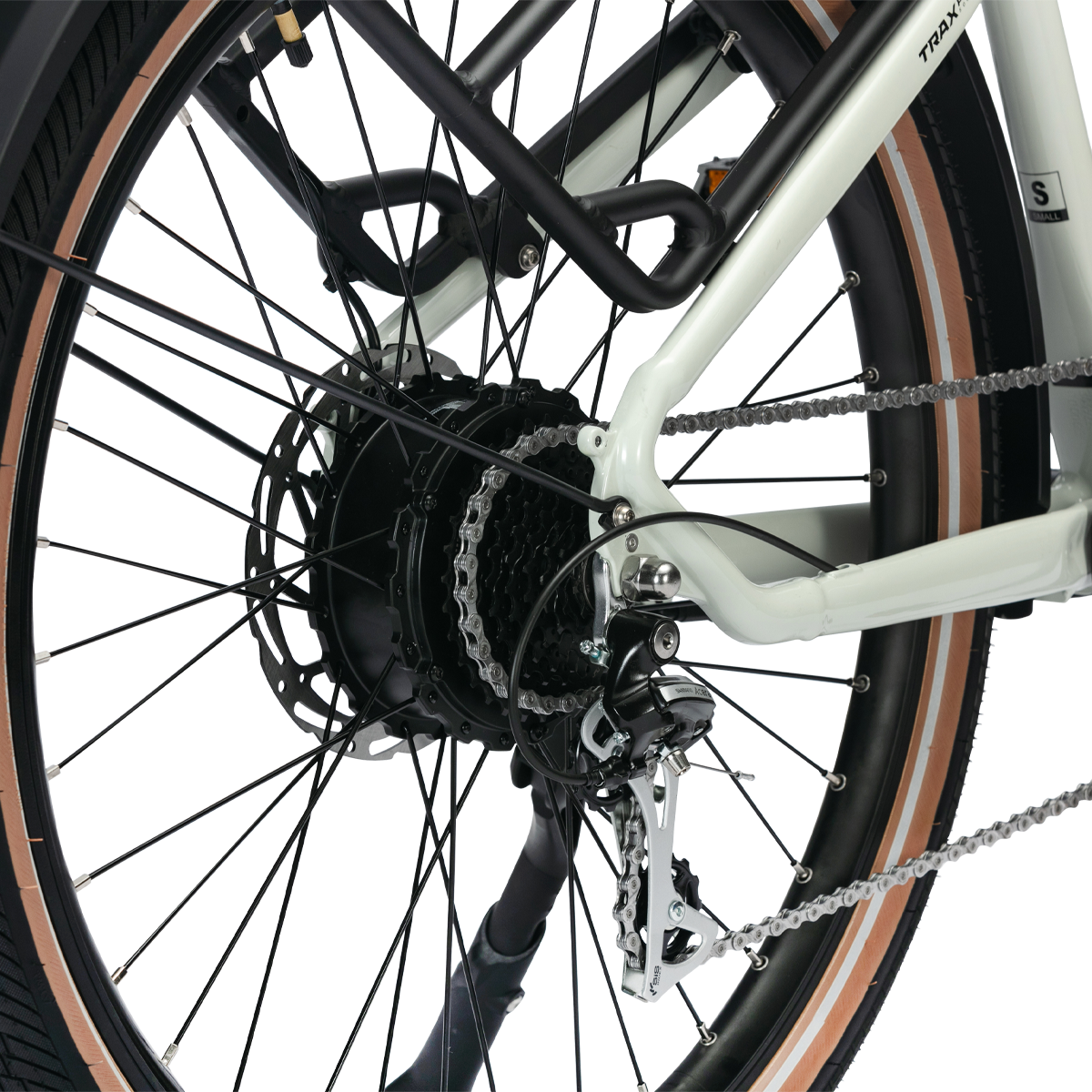

| Rear Derailleur | Shimano® RD-M3020-8, Acera, 8-Speed |
| Cassette | Shimano 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated |
| Front Hub | Alloy, 36H, 100mm, 3/8"Axle w/ Nuts |

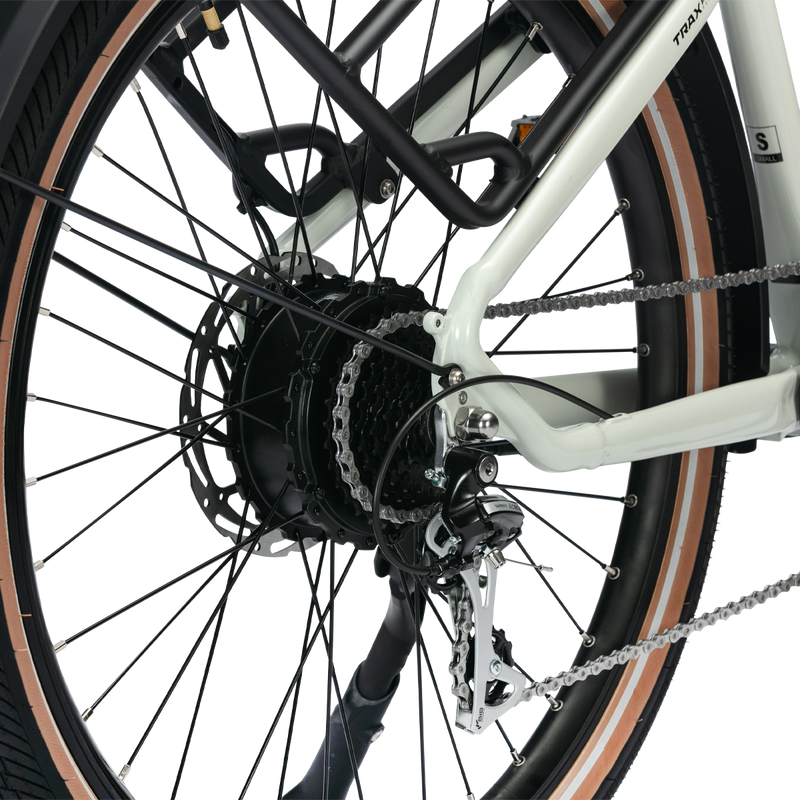

| Rear Hub | 48V 500W/ 28 MPH. 65Nm |
| Rims | Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |

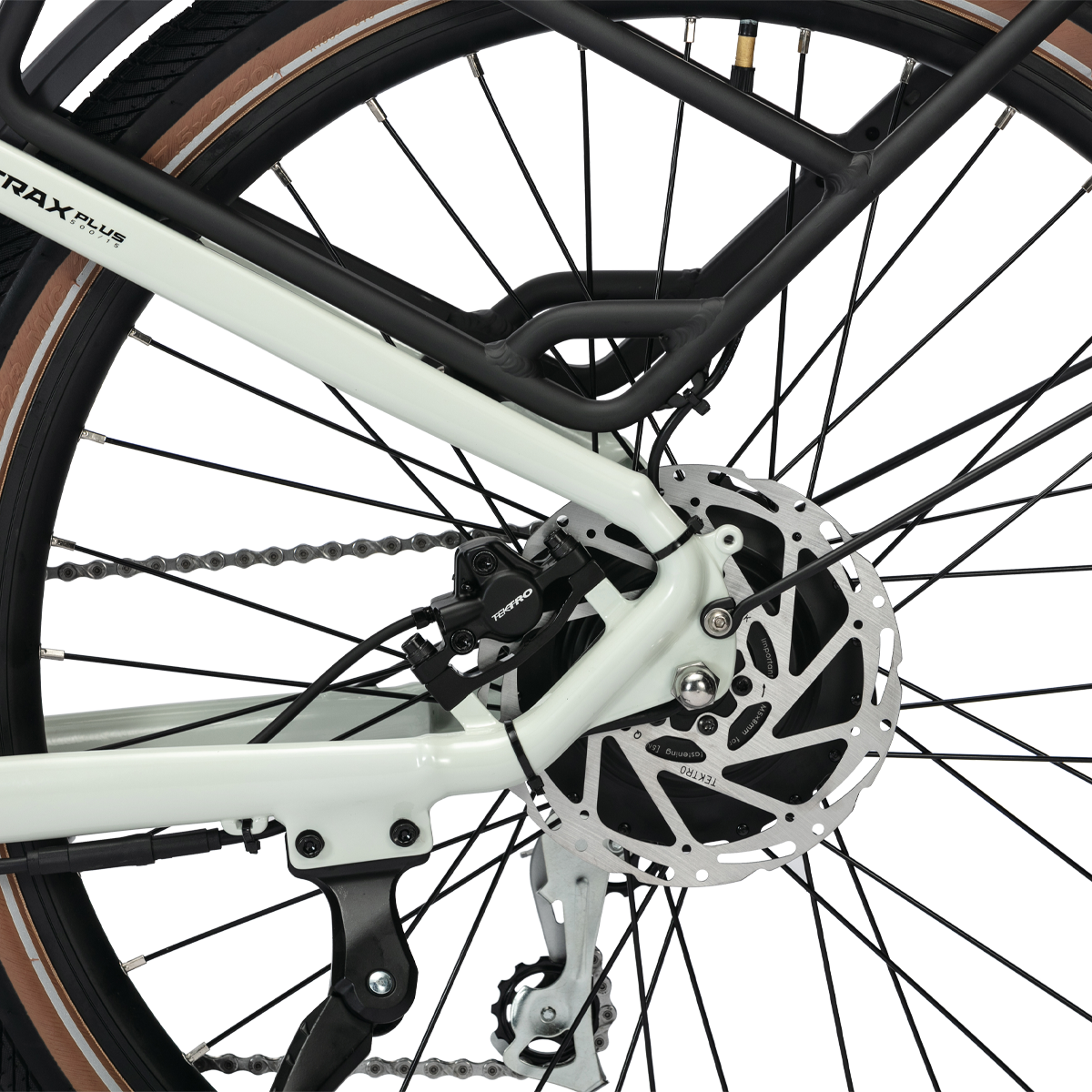

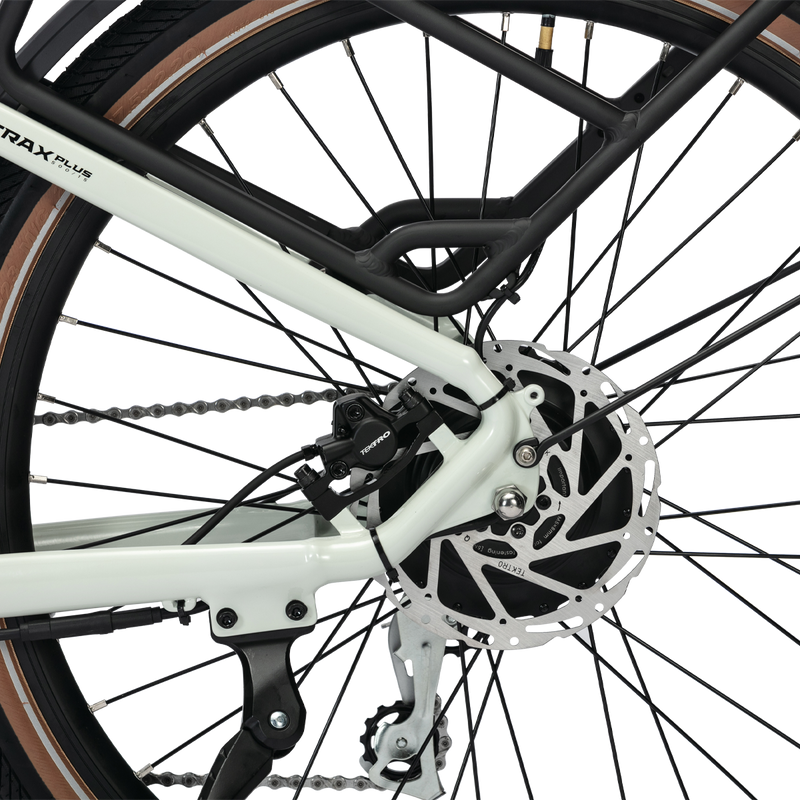

| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 180mm / 180mm |

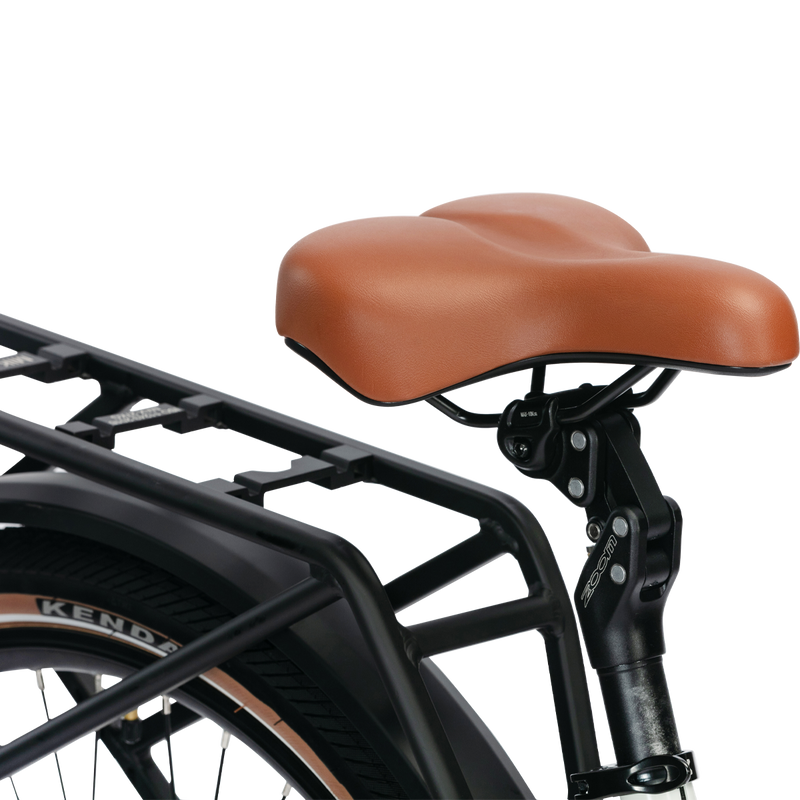

| Saddle | DDK DE-430 Comfort / 200mm Wide |

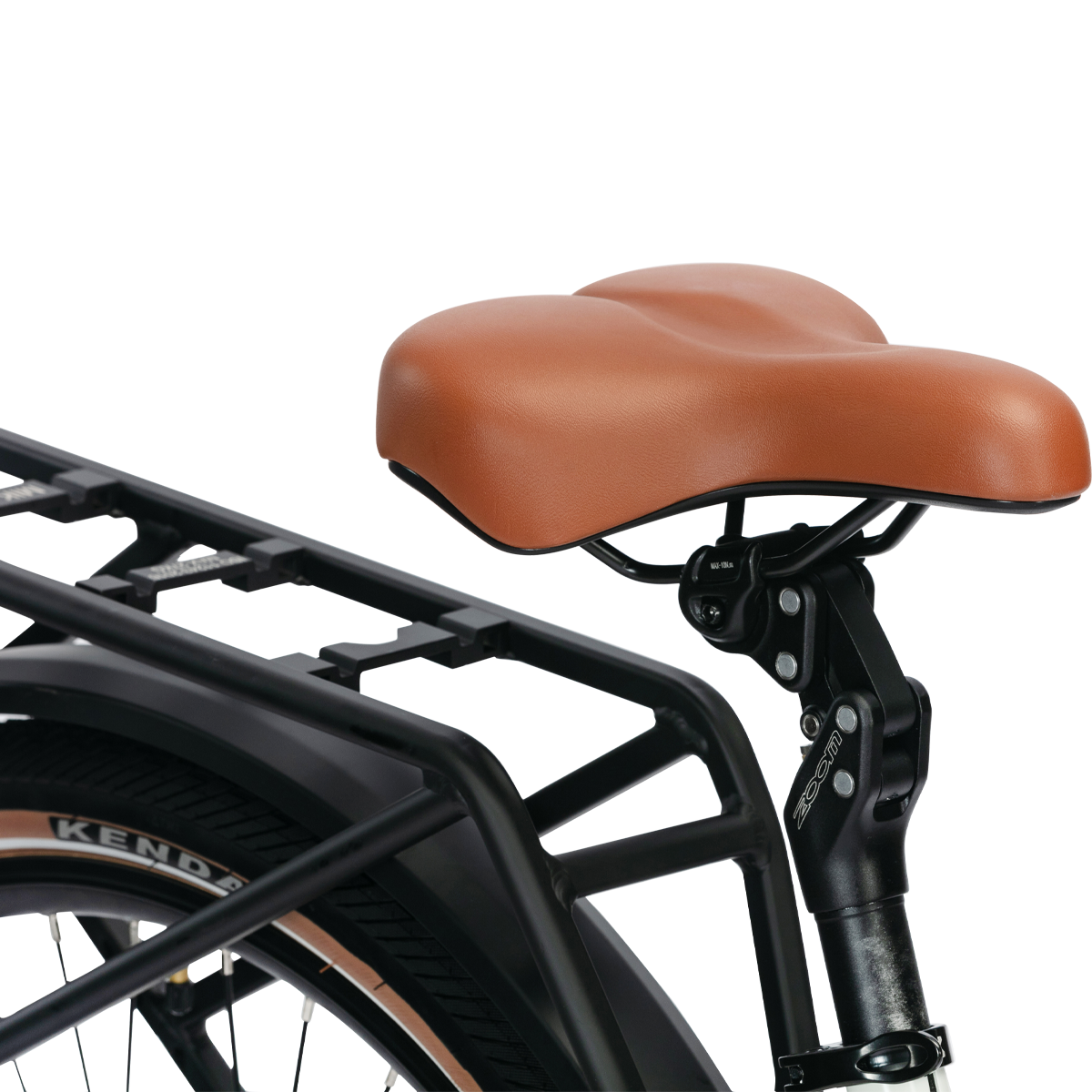

| Seat Post | Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing |
| Handlebar | Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | Alloy, 9/16"axles, w/ BS reflectors |
| Headset | Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing |
| Rear Shocks | N/A |

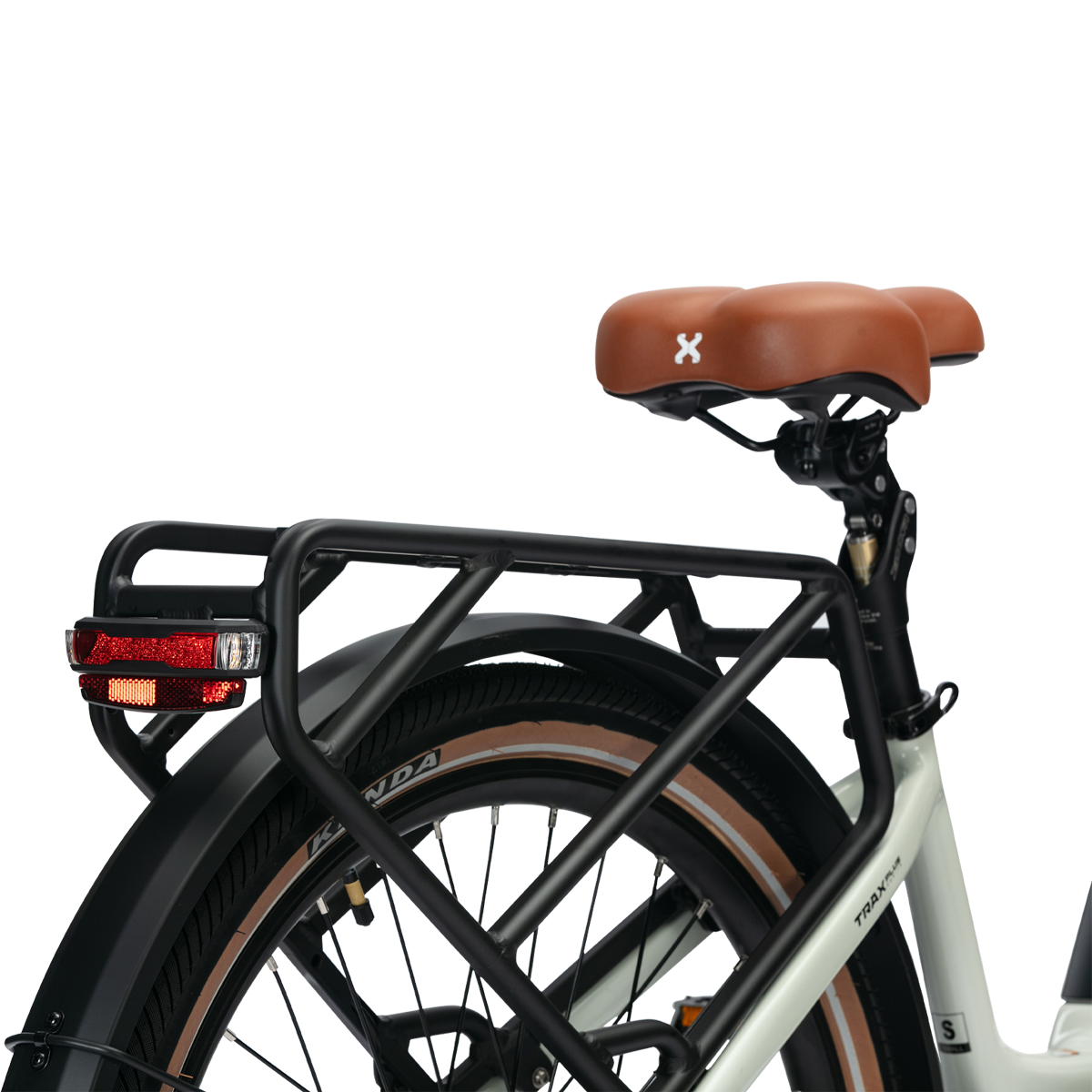

| Rack | Alloy Rear Model/ MIK-Compatible Rear Rack |

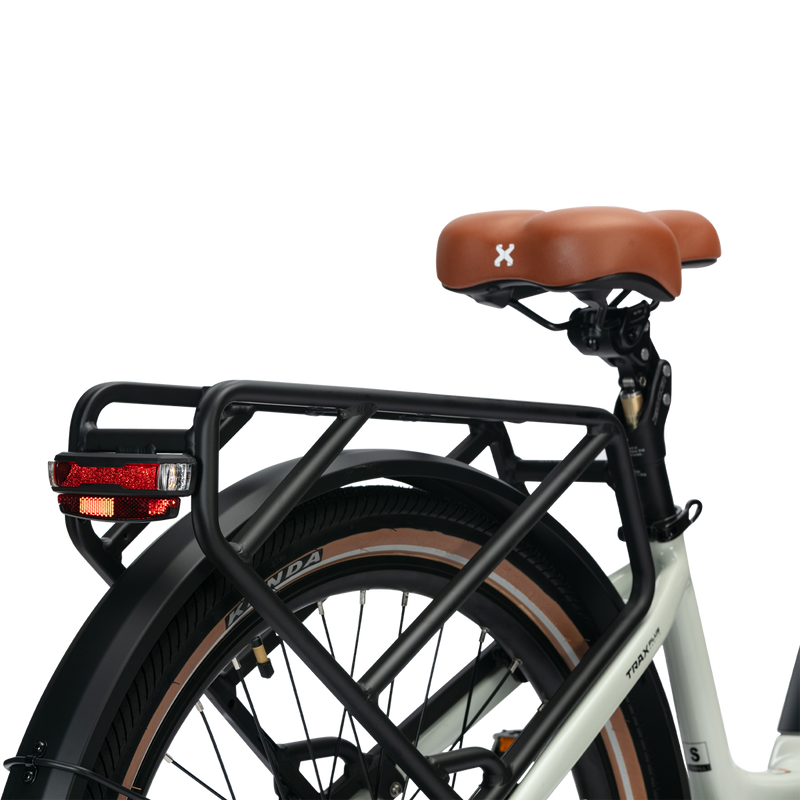

| Fender | Alloy, 27.5", Full coverage |

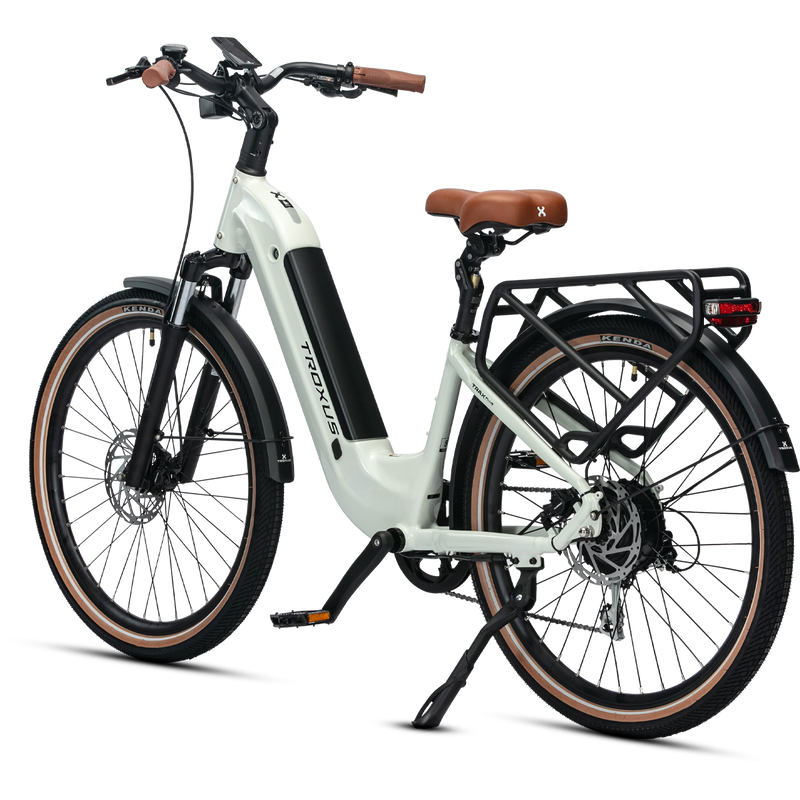

| Kickstand | Adjustable Side Kickstand |
| Max Speed | Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 70 Miles Per Charge |
| Weight Limit | Maximum Load: 383 lbs |
| Net Weight | 68.5 lbs |
* Specs subject to change
