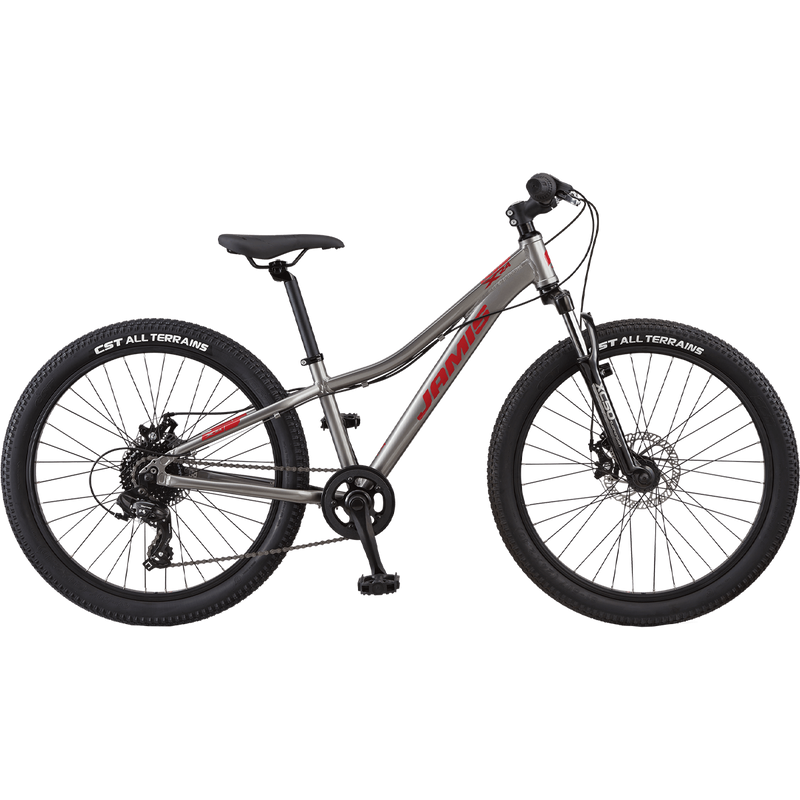

Youth X.24 Disc
It all starts here...Everyone remembers their first mountain bike, and for good reason. It’s your first do-it-all bike. X.24 Disc is the perfect combination of performance and value, featuring impressive capabilities that won't break the bank.
Light
It all starts here...Everyone remembers their first mountain bike, and for good reason. It’s your first do-it-all bike. X.24 Disc is the perfect combination of performance and value, featuring impressive capabilities that won't break the bank.
- Lightweight aluminum frame, zero-stack head tube, replaceable derailleur hanger
- XC50 24”, coil spring suspension fork, 50mm travel
- Alloy 36H black anodized disc rims, alloy 6-bolt disc hubs, nickel-plated spokes
- Shimano RevoShift, 7-speed
- Forged alloy crank with protective outer rock-ring
- Sealed cartridge bottom bracket
- Tektro mechanical disc brakes with Tektro youth specific levers
- Full alloy cockpit, stem, bar and set post
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| Component | Part |
|---|---|
| Frame | 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger |
| Fork | XC50 24", coil spring, 25.4mm stanchions, aluminum lowers, 50mm travel |
| Headset | Zero-stack internal cup threadless, 15mm cone spacer |
| Wheels | Alloy 36H black anodized disc rims, alloy 6-bolt disc hubs with QR, 14G black electroplated spokes |
| Tires | CST MTB Sport, 24 x 2.4" |
| Derailleurs | Shimano TY300 rear |
| Shift levers | Shimano RevoShift 35, 7-speed |
| Chain | KMC Z51 |
| Cassette | SunRace MFM2A 7DV, 14-34 |
| Crankset | Forged alloy crank, 152mm, 32T chainring and protective outer rock-ring |
| BB Set | Sealed cartridge |
| Pedals | MTB platform, hi-impact resin |
| Brakeset | Tektro M280 mechanical disc, 160mm rotors and Tektro youth specific levers |
| Handlebar | MTB alloy riser, 6 ̊ sweep x 20mm rise x 580mm wide |
| Stem | MTB alloy threadless, 15 ̊ rise x 60mm extension |
| Grips | Kraton for Grip Shift |
| Seat Post | Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp |
| Saddle | Jamis ATB Youth |
| Sizes | 12" |
| Weight | 28.75 lbs |
* Specs subject to change
